8P1P003 Series

Catalog

CIRCULAR CONNECTOR, QUIK-LOQ 8P1P SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SOLDER PIN, PUSH-PULL

Part	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Contact Material	Ingress Protection	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Mating	Current Rating (Amps)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Type	Connector Type	Shell Material	Primary Material	Fastening Type	Color	Shielding	Mounting Feature	Termination
NorComp Inc. 8P1P00317BJL621	6 mm	0.236 in	5 mm	0.197 in	Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A	Backshell Strain Relief	120 °C	-20 ░C	Keyed	Free Hanging (In-Line)	Plug Male Pins	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull	Gray Yellow	Unshielded
NorComp Inc. 8P1P003210ARBR1					Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A		120 °C	-20 ░C	Keyed	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull	Blue Gray	Unshielded	Bulkhead - Front Side Nut	Solder

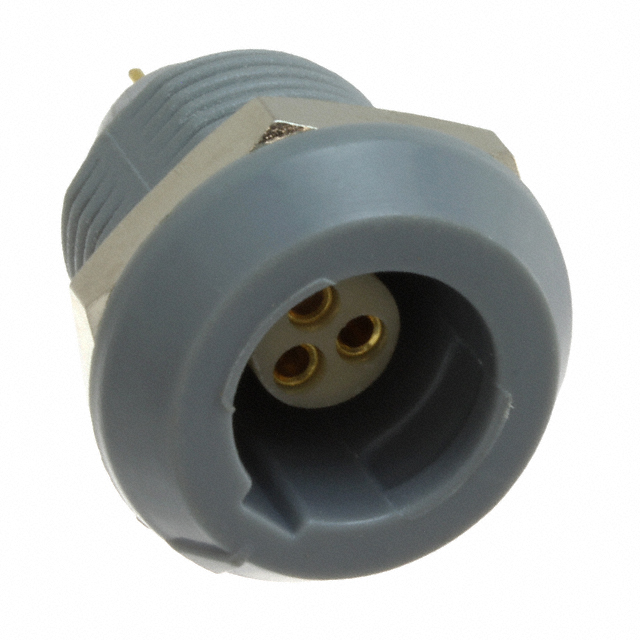

NorComp Inc. 8P1P003210GRF01					Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A		120 °C	-20 ░C	Keyed	Panel Mount Through Hole	Receptacle Female Sockets	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull	Gray	Unshielded	Bulkhead - Rear Side Nut	Solder
NorComp Inc. 8P1P00317BNL521	5 mm	0.197 in	4 mm	0.157 in	Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A	Backshell Strain Relief	120 °C	-20 ░C	Keyed	Free Hanging (In-Line)	Plug Male Pins	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull		Unshielded
NorComp Inc. 8P1P003210NRB01					Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A		120 °C	-20 ░C	Keyed	Panel Mount Through Hole	Receptacle Female Sockets	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull		Unshielded	Bulkhead - Front Side Nut	Solder
NorComp Inc. 8P1P003200RRB01					Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A		120 °C	-20 ░C	Keyed	Panel Mount	Receptacle Female Sockets	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull	Gray Red	Unshielded	Bulkhead - Front Side Nut
NorComp Inc. 8P1P00317NVL621	6 mm	0.236 in	5 mm	0.197 in	Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A		120 °C	-20 ░C	Keyed	Free Hanging (In-Line)	Plug Male Pins	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull	Gray Green	Unshielded
NorComp Inc. 8P1P00317NAL621	6 mm	0.236 in	5 mm	0.197 in	Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A		120 °C	-20 ░C	Keyed	Free Hanging (In-Line)	Plug Male Pins	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull	Blue Gray	Unshielded
NorComp Inc. 8P1P003210NRBR1					Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A		120 °C	-20 ░C	Keyed	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull		Unshielded	Bulkhead - Front Side Nut	Solder
NorComp Inc. 8P1P003200VRB01					Copper Alloy	IP50 - Dust Protected	Polyphenylene Sulfide (PPS)	7 µin	0.178 µm	500 V	Gold	10 A		120 °C	-20 ░C	Keyed	Panel Mount	Receptacle Female Sockets	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Plastic	Push-Pull	Gray Green	Unshielded	Bulkhead - Front Side Nut
