003932 Series
Manufacturer: Molex
Beta
⌘K

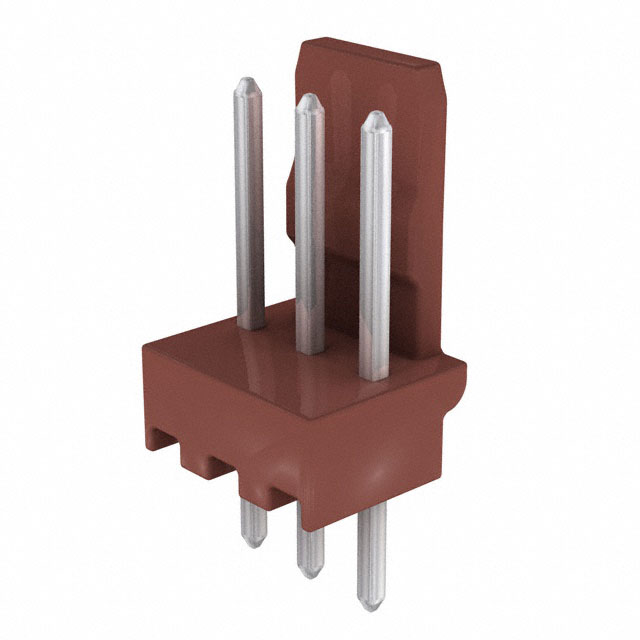

CONN HEADER VERT 3POS 2.5MM
| Part | Contact Length - Mating | Contact Length - Mating | Insulation Color | Shrouding | Contact Finish - Post | Material Flammability Rating | Fastening Type | Contact Material | Contact Length - Post [x] | Contact Length - Post | Number of Positions Loaded | Connector Type | Overall Contact Length | Overall Contact Length | Insulation Material | Termination | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Shape | Insulation Height | Insulation Height | Number of Rows | Contact Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 7.49 mm | 0.295 in | Red | Shrouded - 1 Wall | Tin | UL94 V-0 | Friction Lock | Brass | 0.134 " | 3.4 mm | All | Header | 14.2 mm | 0.559 " | Nylon 6/6 Polyamide (PA66) | Solder | 2.5 mm | 0.098 in | Through Hole | Square | 0.461 in | 11.7 mm | 1 | Male Pin | Board to Cable/Wire |
