9083-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

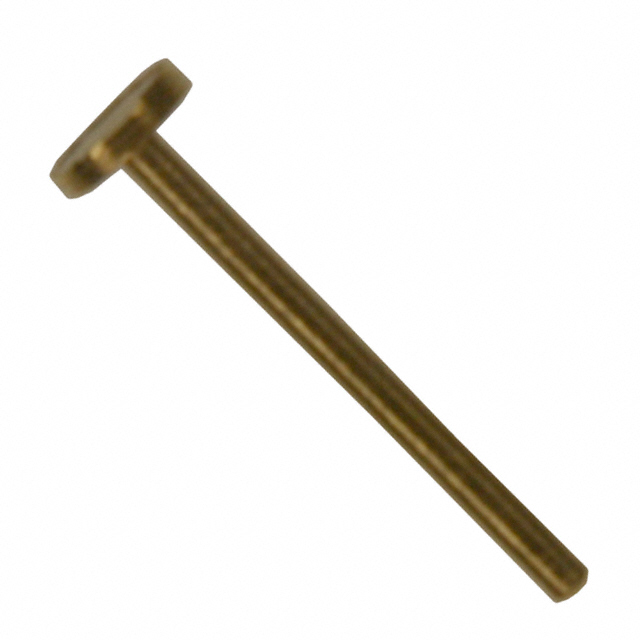

CONN PC PIN CIRC 0.012DIA GOLD
| Part | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Termination | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Style | Contact Finish | Terminal Type | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | 1.02 mm | 0.04 in | Non-Insulated | Solder | 0.25 Ám | 10 Áin | 0.153 in | 3.89 mm | 3.68 mm | 0.145 in | Nail Head Single End | Gold | PC Pin | Through Hole | 0.3 mm | 0.012 in | 0.41 mm | 0.016 in |
