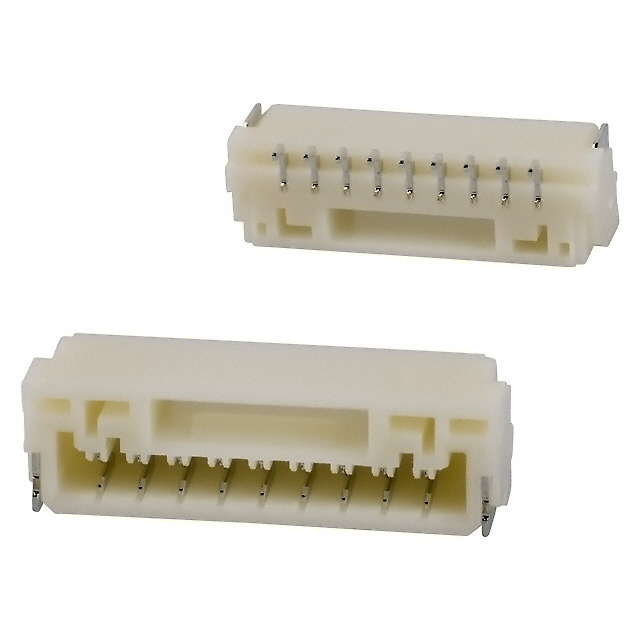

SM09B-GH Series
Manufacturer: JST Sales America Inc.
Catalog
CONN HEADER SMD R/A 9POS 1.25MM
| Part | Connector Type | Insulation Material | Voltage Rating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Finish - Post | Material Flammability Rating | Fastening Type | Style | Number of Positions | Contact Material | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Features | Contact Type | Insulation Height | Insulation Height | Mounting Type | Insulation Color | Number of Rows | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Header | Nylon 9T Polyamide (PA9T) | 50 V | 1.25 mm | 0.049 in | All | Tin | UL94 V-0 | Locking Ramp | Board to Cable/Wire | 9 | Phosphor Bronze | Rectangular | -25 °C | 85 °C | Shrouded - 4 Wall | Solder Retention | Outer Shroud Contact | 0.167 in | 4.25 mm | Surface Mount Right Angle | Natural | 1 | Solder |
