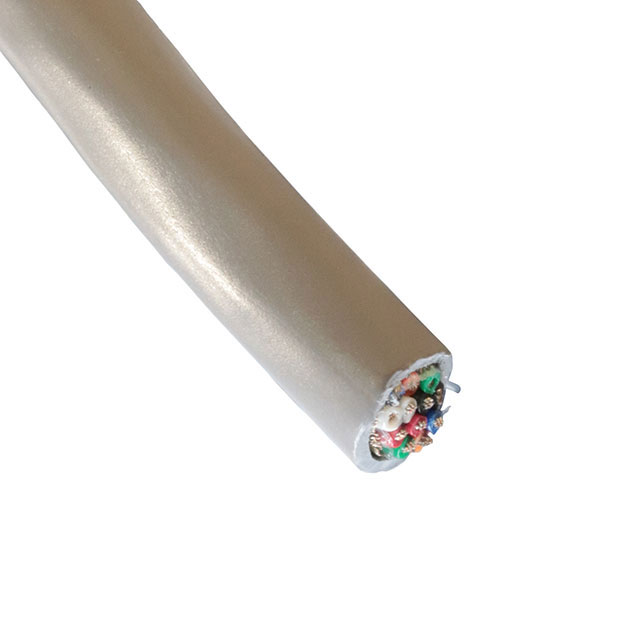

M13210 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 12COND 20AWG SHLD 100'
| Part | Shield Material | Shield Coverage | Conductor Insulation | Shield Type | Conductor Material | Ratings | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Voltage | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | Poly-Vinyl Chloride (PVC) | Braid | Copper Tinned | UL Style 2464 | 20 AWG | Poly-Vinyl Chloride (PVC) | 0.396 " | 10.06 mm | 1.016 mm | 0.04 in | 12 | Multi-Conductor | 80 °C | -20 ░C | 100 ft | 30.5 m | 300 VDC | Slate | 28 AWG | 7 | ||
ALPHA WIRE | Copper Tinned | 85 % | Poly-Vinyl Chloride (PVC) | Braid | Copper Tinned | UL Style 2464 | 20 AWG | Poly-Vinyl Chloride (PVC) | 0.396 " | 10.06 mm | 1.016 mm | 0.04 in | 12 | Multi-Conductor | 80 °C | -20 ░C | 300 VDC | Slate | 28 AWG | 7 | 152.4 m | 500 ft | ||
ALPHA WIRE | Copper Tinned | 85 % | Poly-Vinyl Chloride (PVC) | Braid | Copper Tinned | UL Style 2464 | 20 AWG | Poly-Vinyl Chloride (PVC) | 0.396 " | 10.06 mm | 1.016 mm | 0.04 in | 12 | Multi-Conductor | 80 °C | -20 ░C | 300 VDC | Slate | 28 AWG | 7 | 304.8 m | 1000 ft |
