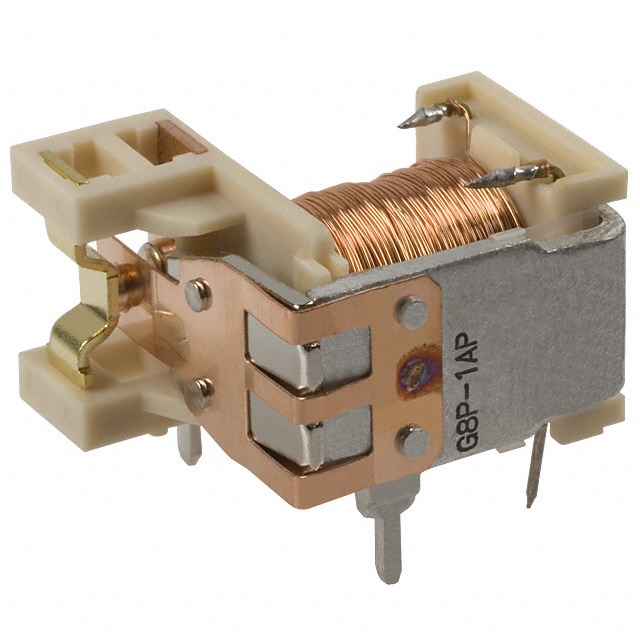

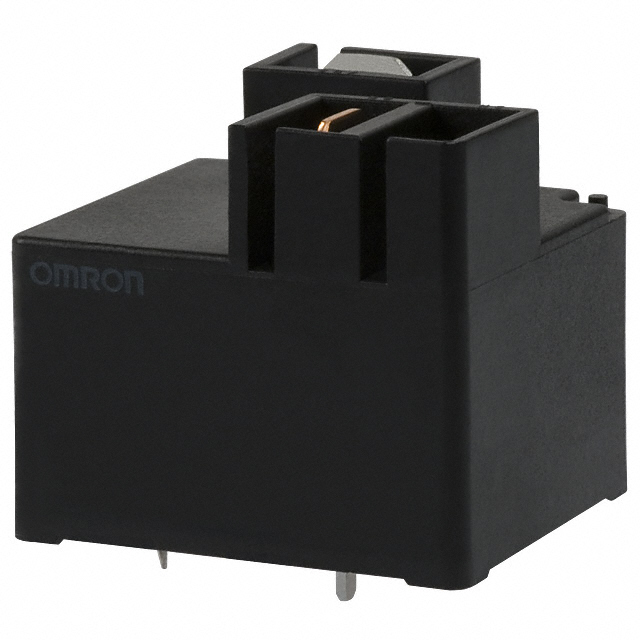

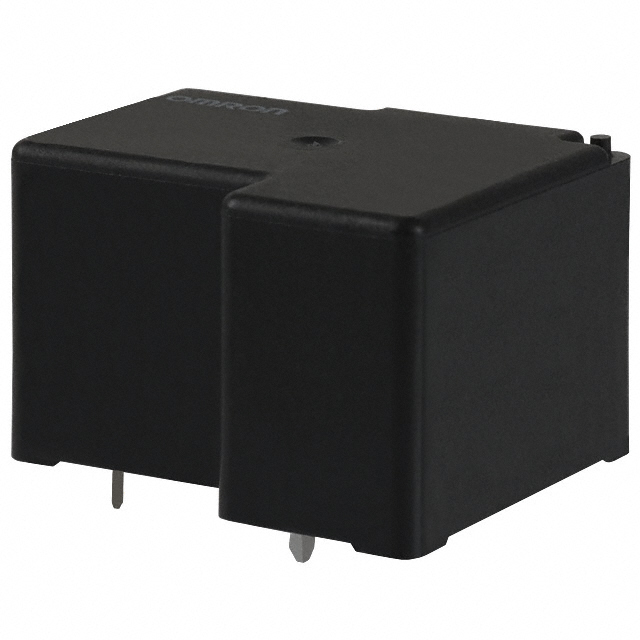

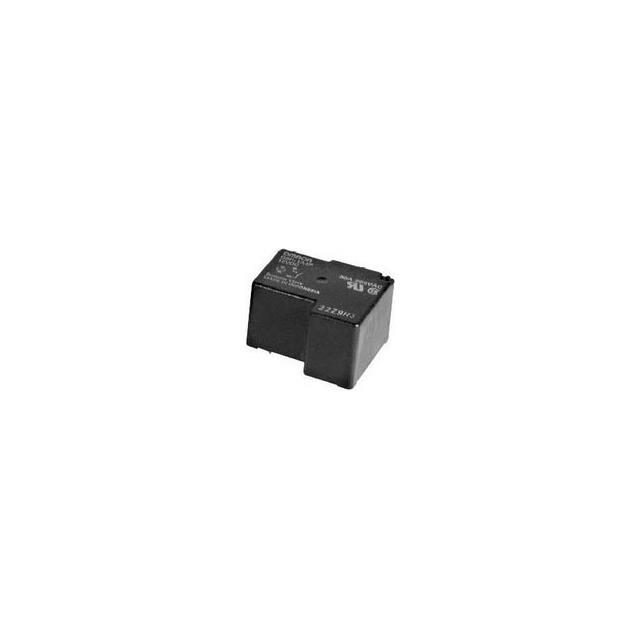

G8P-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 5V
| Part | Mounting Type | Termination Style | Operate Time | Relay Type | Coil Current | Coil Type | Load - Max Switching | Coil Resistance | Contact Material | Must Release Voltage | Must Operate Voltage | Release Time | Approval Agency | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Insulation | Contact Rating (Current) | Contact Form | Switching Voltage | Termination Style | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Through Hole | PC Pin | 15 ms | General Purpose | 185 mA | Non Latching | 840 W 7500 VA | 27 Ohms | Cadmium Free Silver Alloy | 0.5 VDC | 3.75 VDC | 10 ms | CSA UR | 5 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | ||
 Omron Electronics Inc-EMC Div | Chassis Mount | Quick Connect - 0.187"/0.250" | 15 ms | General Purpose | 77 mA | Non Latching | 840 W 7500 VA | 155 Ohms | Cadmium Free Silver Alloy | 1.2 VDC | 9 VDC | 10 ms | CSA UR | 12 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | ||
Omron Electronics Inc-EMC Div | Through Hole | PC Pin | 15 ms | General Purpose | 19 mA | Non Latching | 840 W 7500 VA | 2.48 kOhms | Cadmium Free Silver Alloy | 4.8 VDC | 36 VDC | 10 ms | CSA UR | 48 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | ||
 Omron Electronics Inc-EMC Div | Through Hole | PC Pin Quick Connect | 15 ms | General Purpose | 50 mA | Non Latching | 840 W 7500 VA | 380 Ohms | Cadmium Free Silver Alloy | 1.8 VDC | 13.5 VDC | 10 ms | CSA UR | 18 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | 0.25 in | Sealed - Fully |
Omron Electronics Inc-EMC Div | Through Hole | PC Pin | 15 ms | General Purpose | 93 mA | Non Latching | 840 W 7500 VA | 97 Ohms | Cadmium Free Silver Alloy | 0.9 VDC | 6.75 VDC | 10 ms | CSA UR | 9 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | ||
 Omron Electronics Inc-EMC Div | Through Hole | PC Pin | 15 ms | General Purpose | 36 mA | Non Latching | 840 W 7500 VA | 660 Ohms | Cadmium Free Silver Alloy | 2.4 VDC | 18 VDC | 10 ms | CSA UR | 24 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | Sealed - Fully | |
Omron Electronics Inc-EMC Div | Chassis Mount | Quick Connect - 0.187"/0.250" | 15 ms | General Purpose | 185 mA | Non Latching | 840 W 7500 VA | 27 Ohms | Cadmium Free Silver Alloy | 0.5 VDC | 3.75 VDC | 10 ms | CSA UR | 5 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | ||
Omron Electronics Inc-EMC Div | Through Hole | PC Pin Quick Connect | 15 ms | General Purpose | 36 mA | Non Latching | 840 W 7500 VA | 660 Ohms | Silver Cadmium Oxide (AgCdO) | 2.4 VDC | 18 VDC | 10 ms | CSA UR | 24 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | 0.25 in | Sealed - Fully |
 Omron Electronics Inc-EMC Div | Through Hole | PC Pin Quick Connect | 15 ms | General Purpose | 185 mA | Non Latching | 27 Ohms | Silver Cadmium Oxide (AgCdO) | 0.5 VDC | 3.75 VDC | 10 ms | 5 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | 0.25 in | Sealed - Fully | ||
Omron Electronics Inc-EMC Div | Through Hole | PC Pin Quick Connect | 15 ms | General Purpose | 93 mA | Non Latching | 840 W 7500 VA | 97 Ohms | Cadmium Free Silver Alloy | 0.9 VDC | 6.75 VDC | 10 ms | CSA UR | 9 VDC | 105 ░C | -55 °C | Class F | 30 A | SPST-NO (1 Form A) | 28 VDC 250 VAC | 0.25 in | Sealed - Fully |
