187 Series

Catalog

CONN MAG TERM 16-17.5AWG QC .187

Part	Style	Wire Gauge [Min]	Wire Gauge [Max]	Size	Features	Terminal Type	Termination	Tab Thickness	Tab Thickness	Contact Finish	Length - Overall [x]	Length - Overall [x]	Gender	Tab Width [x]	Tab Width [x]	Contact Material	Mounting Type	Insulation	Tab Length	Tab Length	Note	Material	For Use With/Related Products	For Use With/Related Products	Number of Positions	Terminal Size	Terminal Size	Color

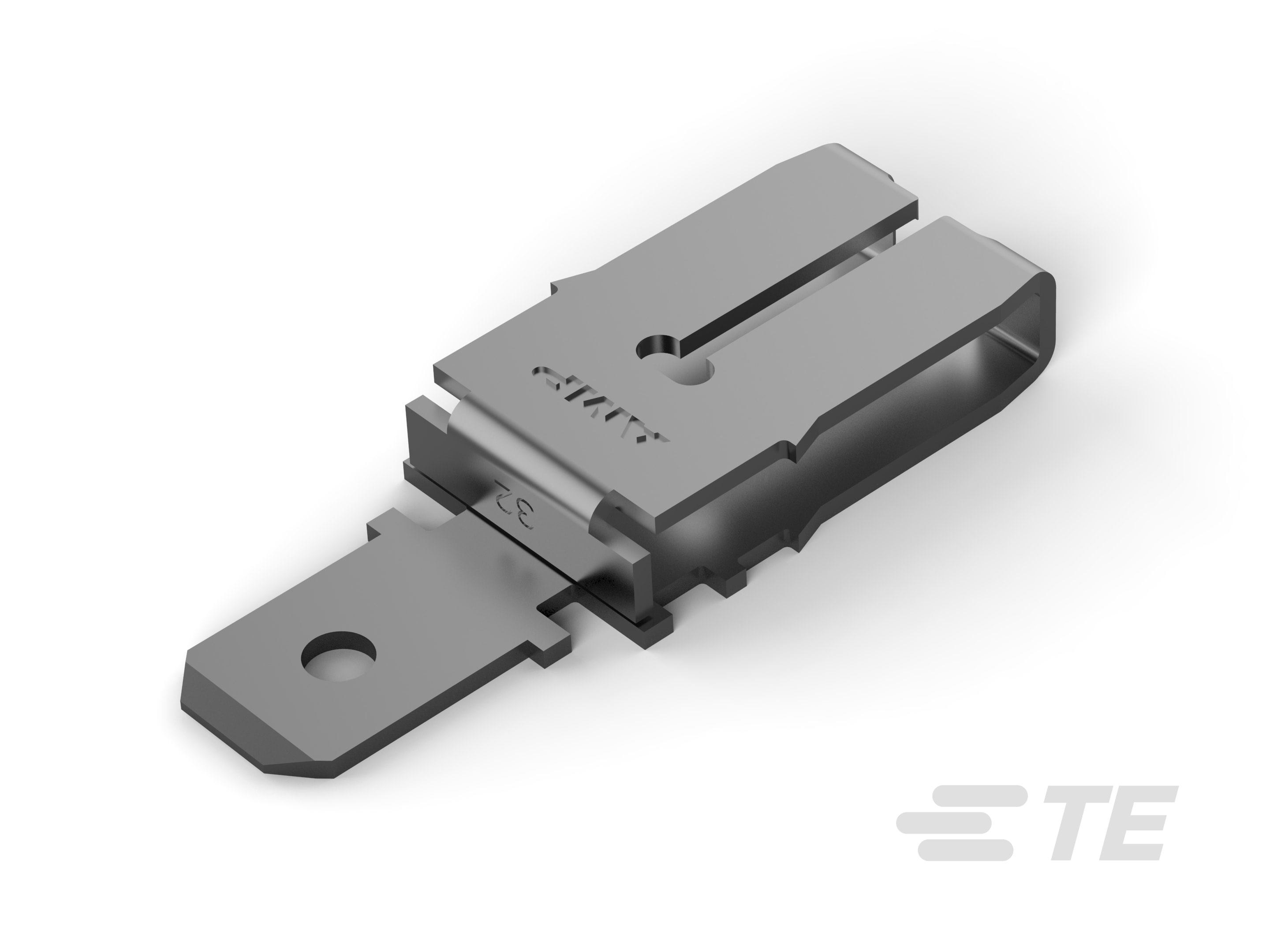

TE Connectivity AMP Connectors 63667-1	500	16 AWG	18 AWG	4	QC .187	Box IDC	Quick Connect

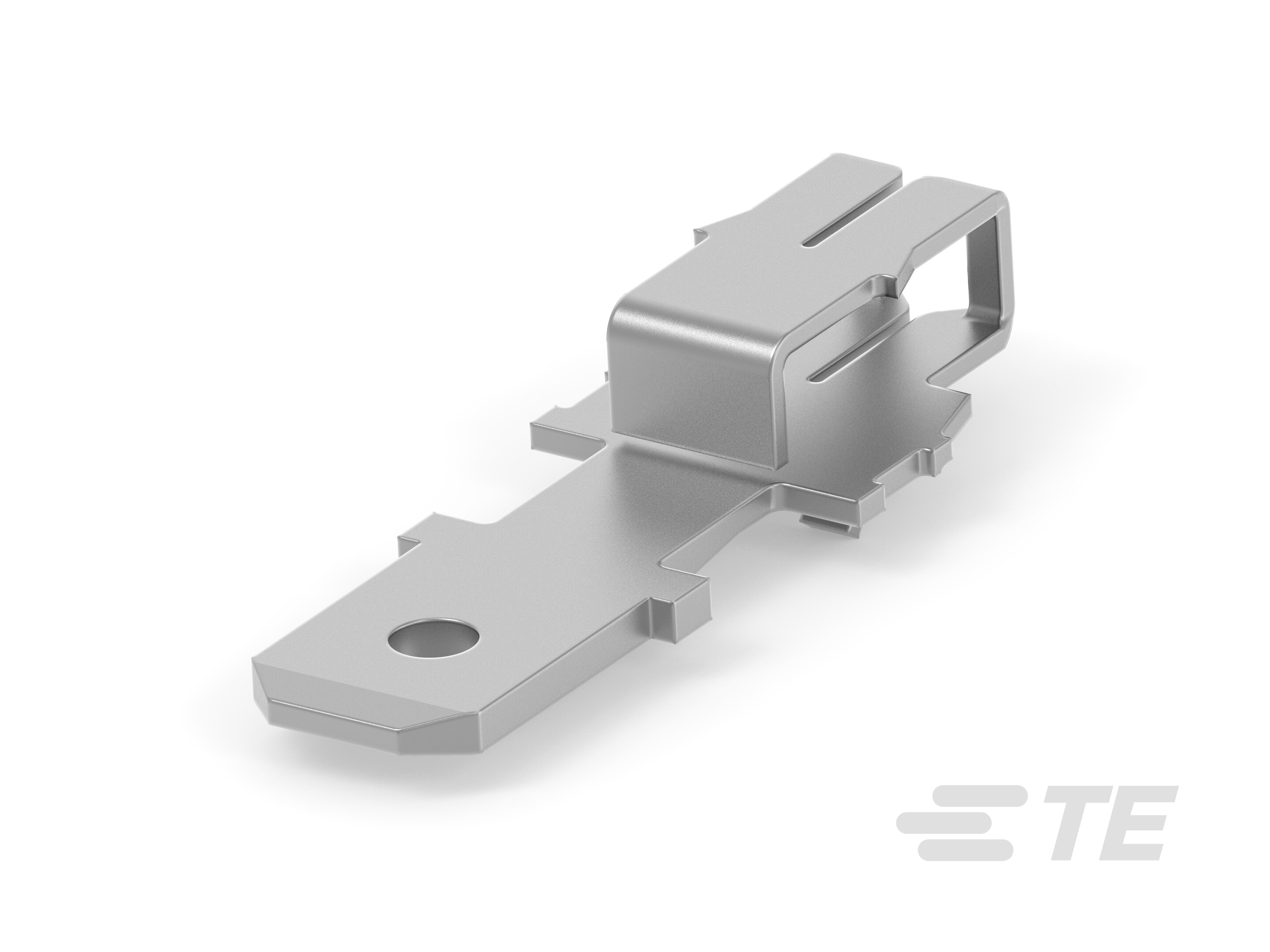

TE Connectivity AMP Connectors 1217993-1	300	23 AWG	27 AWG	3	QC .187	Box IDC	Quick Connect

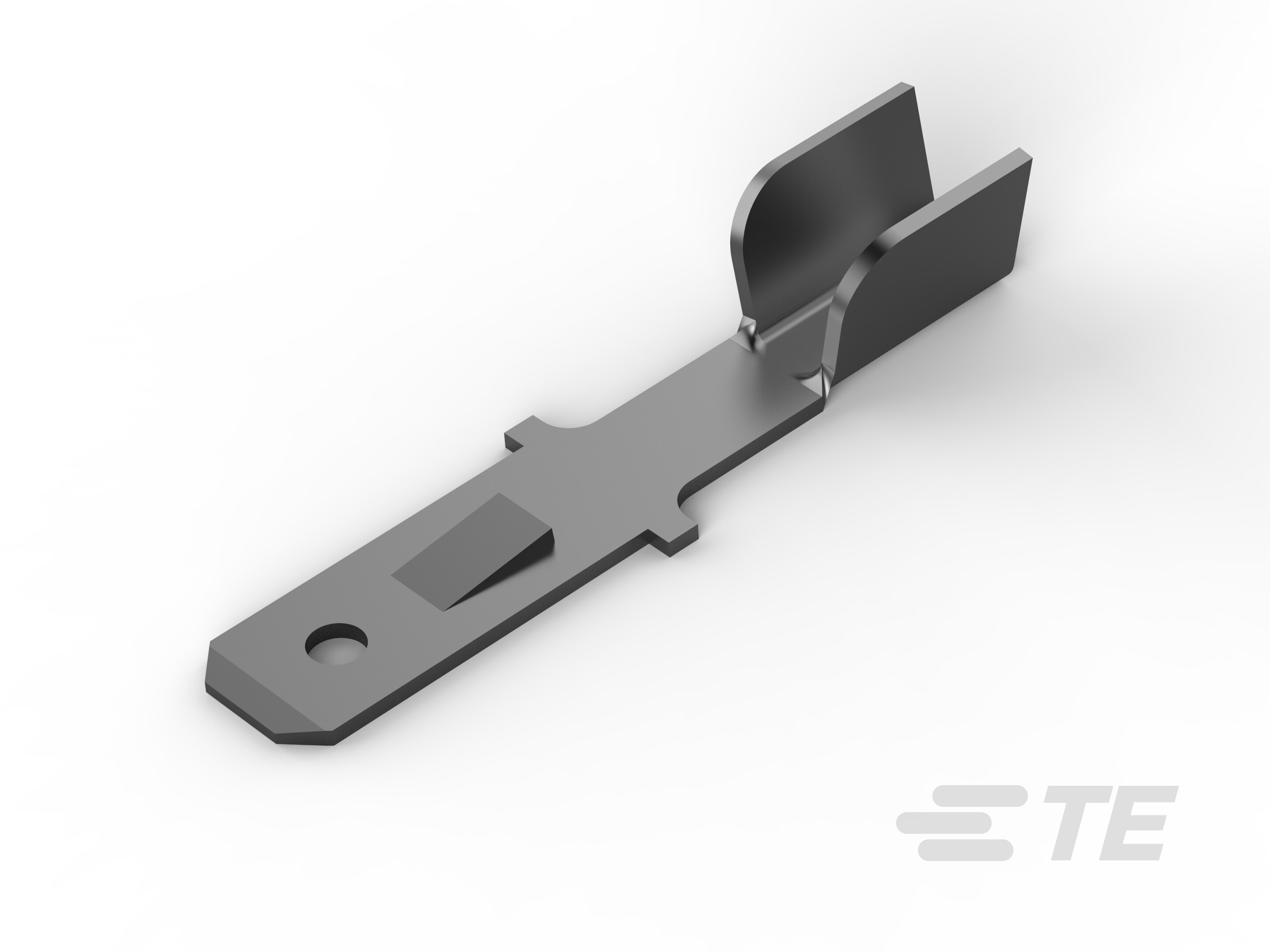

TE Connectivity AMP Connectors 62445-1		12 AWG	15 AWG			Standard	Crimp	0.02 in	0.51 mm	Tin	1.015 in	25.78 mm	Male	0.187 in	4.75 mm	Brass	Free Hanging (In-Line)	Non-Insulated	11.63 mm	0.458 in

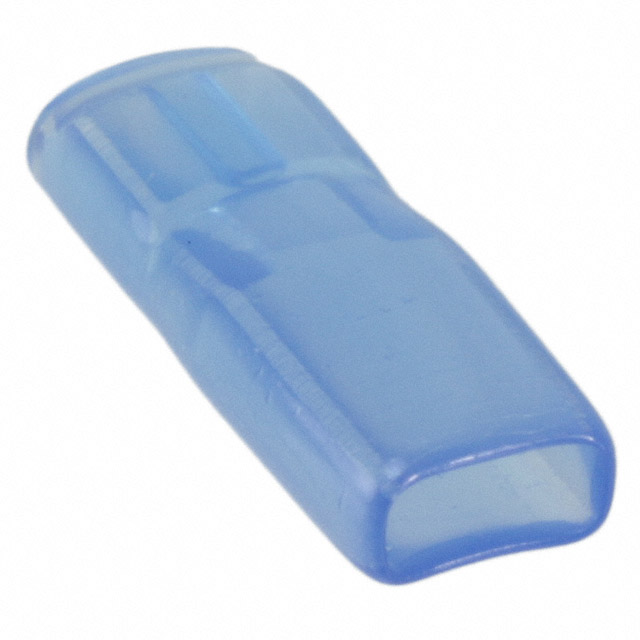

TE Connectivity AMP Connectors 174737-1	Sleeve					Quick Connect Disconnect							Female Receptacle				Free Hanging (In-Line)				Contacts Not Included	PVC	0.187 " 4.75 mm	Quick Connects	1	0.187 in	4.75 mm	Blue
TE Connectivity AMP Connectors 63428-1	500	13 AWG	14 AWG	4	QC .187	Box IDC	Quick Connect

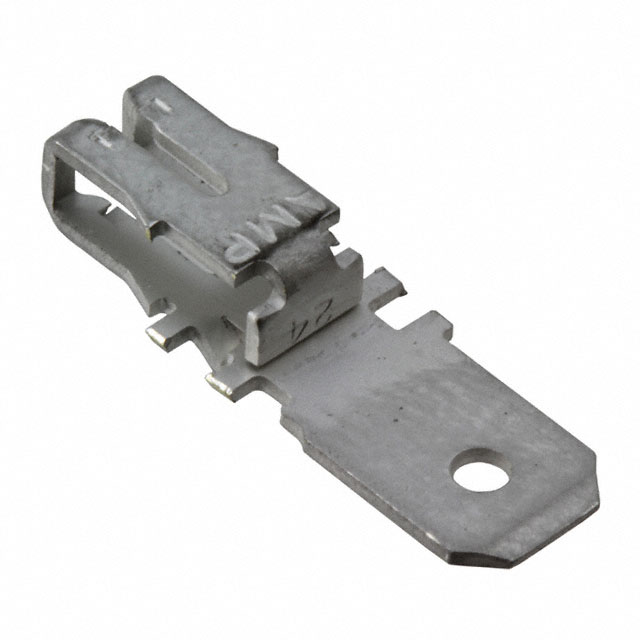

TE Connectivity AMP Connectors 63782-1	300	17 AWG	19 AWG	5	QC .187	Box IDC	Quick Connect
