84829 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

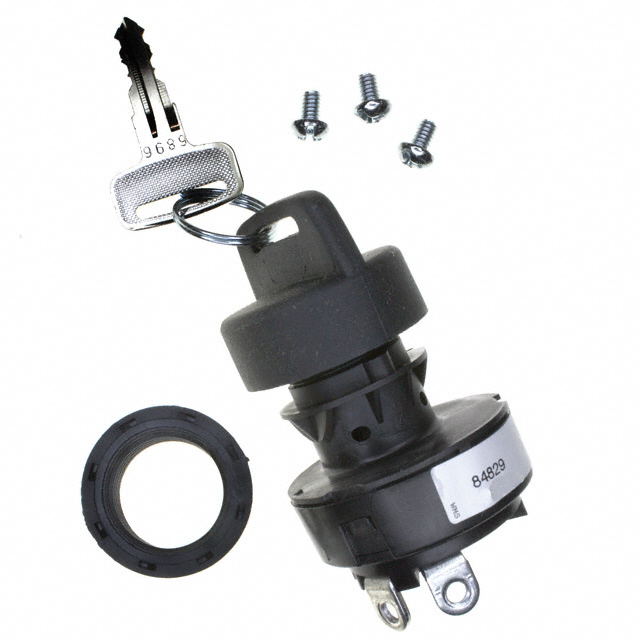

SWITCH KEYLOCK 3POS SPDT 20A 12V
| Part | Electrical Life | Mechanical Life | Depth Behind Flange | Contact Material | Switch Function | Key Removable Positions [custom] | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Timing | Panel Cutout Dimensions [diameter] | Angle of Throw | Mounting Type | Current Rating (Amps) | Circuit | Actuator Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 25000 Steps | 25000 Steps | 39.88 mm | Copper | Off-On-Mom | Left | Screw Terminal | 85 °C | -40 C | Not Specified | 22.35 mm | 45 ° | Panel Mount | 20 A | SPDT | Flat Key | 12 V |
 Honeywell Sensing and Productivity Solutions | 25000 Steps | 25000 Steps | 39.88 mm | Copper | Off-On-Mom | Left | Screw Terminal | 85 °C | -40 C | Not Specified | 22.35 mm | 45 ° | Panel Mount | 20 A | SPDT | Flat Key | 12 V |
Honeywell Sensing and Productivity Solutions | 25000 Steps | 25000 Steps | 39.88 mm | Copper | Off-On-Mom | Left | Screw Terminal | 85 °C | -40 C | Not Specified | 22.35 mm | 45 ° | Panel Mount | 20 A | SPDT | Flat Key | 12 V |
