RSF010P05 Series

Catalog

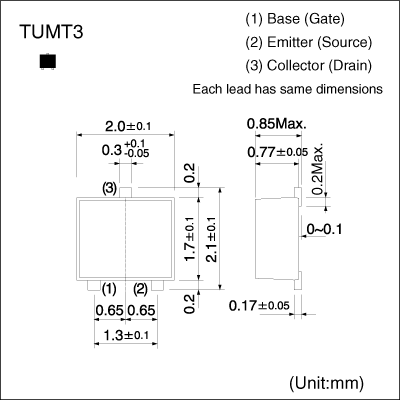

TRANS MOSFET P-CH 45V 1A 3-PIN TUMT T/R

Part	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Rds On (Max) @ Id, Vgs	Technology	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature	Mounting Type	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	FET Type	Drain to Source Voltage (Vdss)	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C
Rohm Semiconductor RSF010P05TL	2.5 V	4 V	10 V	460 mOhm	MOSFET (Metal Oxide)	2.3 nC	150 °C	Surface Mount	20 V	160 pF	P-Channel	45 V	TUMT3	1 A
