1213F Series
Manufacturer: Belden Inc.
Beta
⌘K

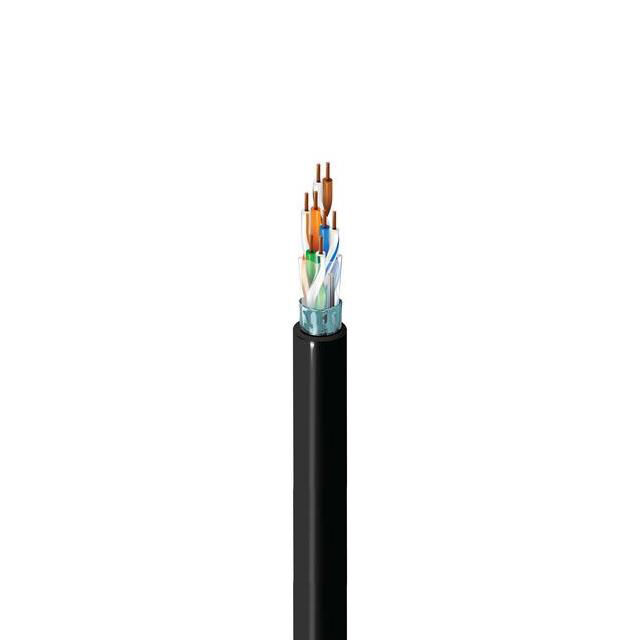

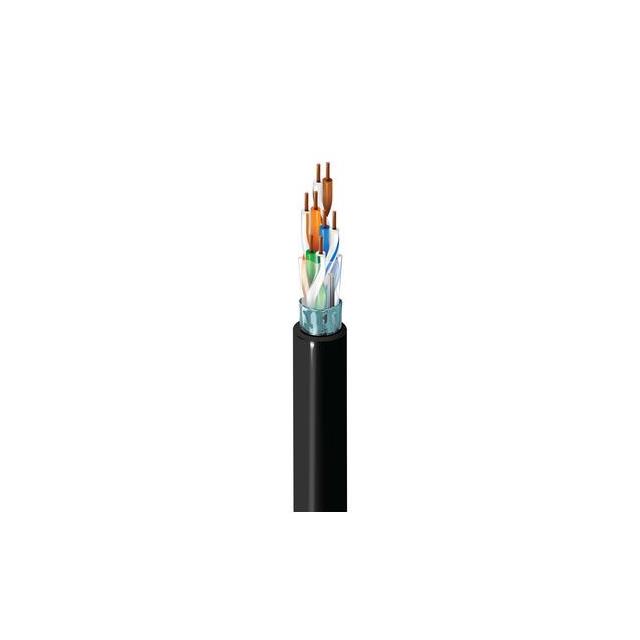

CABLE CAT5E 8COND 24AWG BLU
| Part | Shield Material | Shield Coverage | Number of Conductors | Conductor Material | Jacket Color | Usage | Wire Gauge | Shield Type | Ratings | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Features | Voltage | Conductor Strand | Conductor Insulation | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester | 100 % | 8 | Copper Bare | Blue | Ethernet LAN Video | 24 AWG | Foil | UL Style CMP | Multi-Pair Cat5e | 0.235 " | 5.97 mm | 152.4 m | 500 ft | Drain Wire | 300 VDC | Solid | Fluorinated Ethylene-Propylene (FEP) | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
Belden Inc. | Aluminum Polyester | 100 % | 8 | Copper Bare | White | Ethernet LAN Video | 24 AWG | Foil | UL Style CMP | Multi-Pair Cat5e | 0.235 " | 5.97 mm | 152.4 m | 500 ft | Drain Wire | 300 VDC | Solid | Fluorinated Ethylene-Propylene (FEP) | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
 Belden Inc. | Aluminum Polyester | 100 % | 8 | Copper Bare | Orange | Ethernet LAN Video | 24 AWG | Foil | UL Style CMP | Multi-Pair Cat5e | 0.235 " | 5.97 mm | 304.8 m | 1000 ft | Drain Wire | 300 VDC | Solid | Fluorinated Ethylene-Propylene (FEP) | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
Belden Inc. | Aluminum Polyester | 100 % | 8 | Copper Bare | Black | Ethernet LAN Video | 24 AWG | Foil | UL Style CMP | Multi-Pair Cat5e | 0.235 " | 5.97 mm | 304.8 m | 1000 ft | Drain Wire | 300 VDC | Solid | Fluorinated Ethylene-Propylene (FEP) | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
 Belden Inc. | Aluminum Polyester | 100 % | 8 | Copper Bare | Orange | Ethernet LAN Video | 24 AWG | Foil | UL Style CMP | Multi-Pair Cat5e | 0.235 " | 5.97 mm | 304.8 m | 1000 ft | Drain Wire | 300 VDC | Solid | Fluorinated Ethylene-Propylene (FEP) | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
Belden Inc. | Aluminum Polyester | 100 % | 8 | Copper Bare | Black | Ethernet LAN Video | 24 AWG | Foil | UL Style CMP | Multi-Pair Cat5e | 0.235 " | 5.97 mm | 304.8 m | 1000 ft | Drain Wire | 300 VDC | Solid | Fluorinated Ethylene-Propylene (FEP) | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
Belden Inc. | Aluminum Polyester | 100 % | 8 | Copper Bare | Blue | Ethernet LAN Video | 24 AWG | Foil | UL Style CMP | Multi-Pair Cat5e | 0.235 " | 5.97 mm | 304.8 m | 1000 ft | Drain Wire | 300 VDC | Solid | Fluorinated Ethylene-Propylene (FEP) | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
Belden Inc. | Aluminum Polyester | 100 % | 8 | Copper Bare | White | Ethernet LAN Video | 24 AWG | Foil | UL Style CMP | Multi-Pair Cat5e | 0.235 " | 5.97 mm | 304.8 m | 1000 ft | Drain Wire | 300 VDC | Solid | Fluorinated Ethylene-Propylene (FEP) | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
