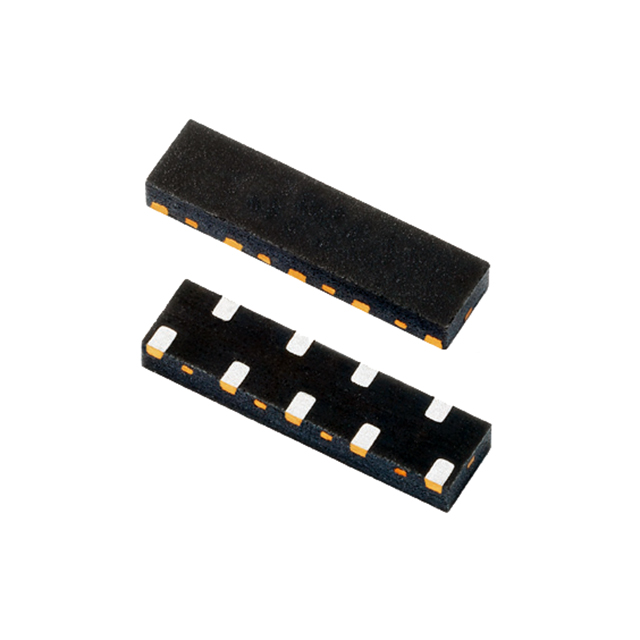

SP7538PUTG Series
8Ch 12KV 5V 0.5pF Diode Array u-DFN-9
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
8Ch 12KV 5V 0.5pF Diode Array u-DFN-9
Key Features
• ESD, IEC61000-4-2, ±12kV contact, ±15 kV air
• Lightning, IEC61000-4-5, 2nd edition,4A (tP=8/20μs)
• EFT, IEC61000-4-4, 40 A (tp = 5/50 ns)
• Low capacitance of 0.5 pF (TYP) per I/O
• Low leakage current of 1.5μA (MAX) at 5V
• Lead-free, halogen-free, and RoHS compliant
• AEC-Q101 qualified
Description
AI
The SP7538PUTG integrates 8 channels of ultra low capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust device can safely absorb repetitive ESD strikes above the maximum level specified in the IEC61000-4-2 international standard (±8kV contact discharge) without performance degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as V-By-One, HDMI, USB3.0, USB2.0, and IEEE 1394.
