PCF51 Series

Catalog

IC MCU 32BIT 256KB FLASH 64LQFP

Part	Core Size (Bit Width)	Core Configuration	Program Memory Type	Mounting Type	Connectivity	Speed	RAM Size Width	RAM Size Depth	Operating Temperature (Max)	Operating Temperature (Min)	Core Processor	Number of I/O	Oscillator Type	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Package Length	Package Name	Package Width	A/D Channels	A/D Resolution (bits)	Program Memory Width	Program Memory Depth	Program Memory Size	Peripherals	Package / Case	D/A Channels	D/A Resolution (bits)	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)
NXP USA Inc. PCF51AC256ACPUE	32 Bit	Single-Core	FLASH	Surface Mount	CANbus I2C SCI SPI	50 MHz	8 bit	32 K	85 °C	-40 °C	Coldfire V1	54	External	2.7 V	5.5 V	10 mm	64-LQFP	10 mm	20 count	12 bit	8 bit	256 K	256 KB	LVD PWM WDT	64-LQFP
NXP USA Inc. PCF51QU64VLF	32 Bit	Single-Core	FLASH	Surface Mount	EBI EMI I2C SPI UART USART	50 MHz	8 bit	16 K	105 °C	-40 °C	Coldfire V1	35	Internal	1.71 V	3.6 V	7 mm	48-LQFP	7 mm	13 count	12 bit	8 bit	64 K	64 KB	DMA LVD POR PWM	48-LQFP	1 count	12 bit
NXP USA Inc. PCF51JF128VLH	32 Bit	Single-Core	FLASH	Surface Mount	EBI EMI I2C SPI UART USART USB OTG	50 MHz	8 bit	32 K	105 °C	-40 °C	Coldfire V1	48	Internal	1.71 V	3.6 V	10 mm	64-LQFP	10 mm	17 count	12 bit				DMA I2S LVD POR PWM	64-LQFP	1 count	12 bit	128 K	128KB	8
NXP USA Inc. PCF51JF64VLF	32 Bit	Single-Core	FLASH	Surface Mount	EBI EMI I2C SPI UART USART USB OTG	50 MHz	8 bit	16 K	105 °C	-40 °C	Coldfire V1	35	Internal	1.71 V	3.6 V	7 mm	48-LQFP	7 mm	11 count	12 bit	8 bit	64 K	64 KB	DMA I2S LVD POR PWM	48-LQFP	1 count	12 bit
NXP USA Inc. PCF51QU64VLF	32 Bit		FLASH	Surface Mount	EBI EMI I2C SPI UART USART	50 MHz	8 bit	16 K	105 °C	-40 °C	Coldfire V1	35	Internal	1.71 V	3.6 V	7 mm	48-LQFP	7 mm	13 count	12 bit	8 bit	64 K	64 KB	DMA LVD POR PWM	48-LQFP	1 count	12 bit

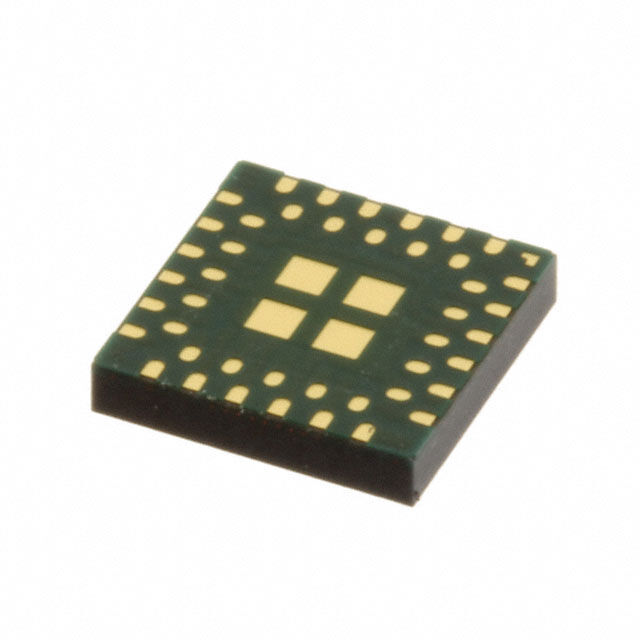

NXP USA Inc. PCF51JF128VHS	32 Bit	Single-Core	FLASH	Surface Mount	EBI EMI I2C SPI UART USART USB OTG	50 MHz	8 bit	32 K	105 °C	-40 °C	Coldfire V1	31	Internal	1.71 V	3.6 V	5 mm	44-MAPLGA	5 mm	9 count	12 bit				DMA I2S LVD POR PWM	44-VFLGA Exposed Pad	1 count	12 bit	128 K	128KB	8
