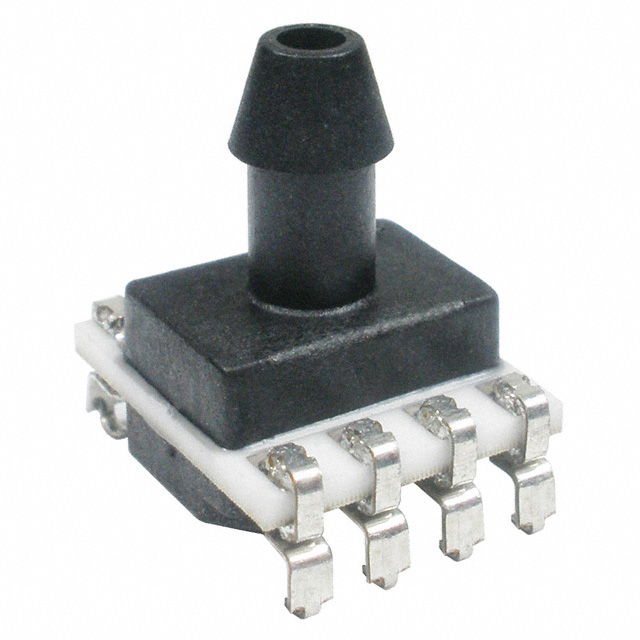

HSCMANN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 15PSIA 0.19" 12BIT 8SMD

Part	Output	Features	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Applications	Output Type	Mounting Type	Supplier Device Package	Operating Pressure [custom]	Operating Pressure [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Port Size	Port Size	Accuracy	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Pressure Type	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions HSCMANN015PA2A3	12 b	Amplified Output Temperature Compensated	85 °C	-20 C	Barbed	Board Mount	I2C	Surface Mount	8-SMD	15 PSI	103.42 kPa	3.6 V	3 V	8-SMD J-Lead Top Port	4.93 mm	0.19 "	0.25 %	J Lead	30 PSI	206.84 kPa
Honeywell Sensing and Productivity Solutions HSCMANN001BA2A3	12 b	Amplified Output Temperature Compensated	85 °C	-20 C	Barbed	Board Mount	I2C	Surface Mount	8-SMD			3.6 V	3 V	8-SMD J-Lead Top Port	4.93 mm	0.19 "	0.25 %	J Lead	29.01 PSI	200 kPa	100 kPa	14.5 PSI
Honeywell Sensing and Productivity Solutions HSCMANN100PGSA5	12 b	Amplified Output Temperature Compensated	85 °C	-20 C	Barbed	Board Mount	SPI	Surface Mount	8-SMD			5.25 V	4.75 V	8-SMD J-Lead Top Port	4.93 mm	0.19 "	0.25 %	J Lead	250 PSI	1723.69 kPa	689.48 kPa	100 PSI	Vented Gauge
Honeywell Sensing and Productivity Solutions HSCMANN100MDAA5
Honeywell Sensing and Productivity Solutions HSCMANN030PA2A3
Honeywell Sensing and Productivity Solutions HSCMANN015PD2A3	12 b	Amplified Output Temperature Compensated	85 °C	-20 C	Barbed	Board Mount	I2C	Surface Mount	8-SMD			3.6 V	3 V	8-SMD J-Lead Top Port	4.93 mm	0.19 "	0.25 %	J Lead			103.42 kPa	15 PSI	Differential	60 PSI	413.69 kPa
