PBW50F Series

Catalog

AC/DC CONVERTER +/-12V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Output 1	Current - Output 1	Voltage - Output 2	Efficiency	Approval Agency	Applications	Current - Output 2	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Isolation	Power (Watts)	Features

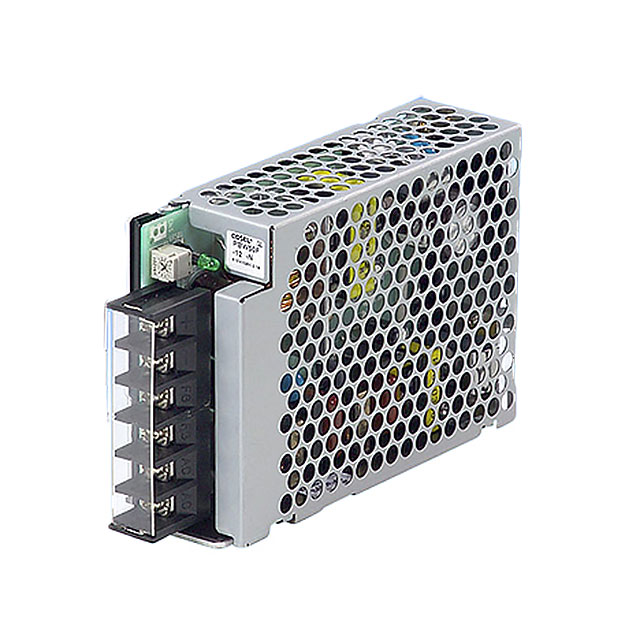

Cosel USA, Inc. PBW50F-12-TN	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2	12 V	2.1 A	-12 V	83 %	CE cURus TUV	ITE (Commercial)	2.7 A	Chassis Mount	71 °C	-10 °C	Enclosed	3000 V
Cosel USA, Inc. PBW50F-12-VN	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2	12 V	2.1 A	-12 V	83 %	CE cURus TUV	ITE (Commercial)	2.7 A	Chassis Mount	71 °C	-10 °C	Enclosed	3000 V
Cosel USA, Inc. PBW50F-5-RN	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2	5 V	3 A	-5 V	77 %	CE cURus TUV	ITE (Commercial)	4 A	Chassis Mount	71 °C	-10 °C	Enclosed	3000 V
Cosel USA, Inc. PBW50F-12-RN	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2	12 V	2.1 A	-12 V	83 %	CE cURus TUV	ITE (Commercial)	2.7 A	Chassis Mount	71 °C	-10 °C	Enclosed	3000 V
Cosel USA, Inc. PBW50F-5-GN	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2	5 V	3 A	-5 V	77 %	CE cURus TUV	ITE (Commercial)	4 A	Chassis Mount	71 °C	-10 °C	Enclosed	3000 V

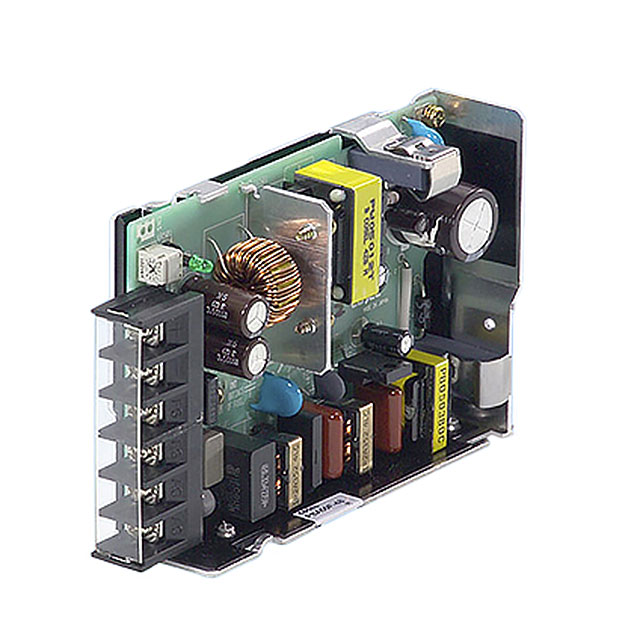

Cosel USA, Inc. PBW50F-12-E	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2	12 V	2.1 A	-12 V	83 %	CE cURus TUV	ITE (Commercial)	2.7 A	Chassis Mount	71 °C	-10 °C	Open Frame	3000 V
Cosel USA, Inc. PBW50F-12-G	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2	12 V	2.1 A	-12 V	83 %	CE cURus TUV	ITE (Commercial)	2.7 A	Chassis Mount	71 °C	-10 °C	Open Frame	3000 V
Cosel USA, Inc. PBW50F-15-G	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2	15 V	1.7 A	-15 V	83 %	CE cURus TUV	ITE (Commercial)		Chassis Mount	71 °C	-10 °C	Open Frame	3000 V
Cosel USA, Inc. PBW50F-12							2	12 V	2.1 A	-12 V	83 %	CE cURus TUV	ITE (Commercial)	2.7 A	Chassis Mount			Enclosed		50 W	DC Input Capable Universal Input
Cosel USA, Inc. PBW50F-15-V	82 mm	4.72 "	1.22 in	3.23 in	119.9 mm	31 mm	2	15 V	1.7 A	-15 V	83 %	CE cURus TUV	ITE (Commercial)		Chassis Mount	71 °C	-10 °C	Open Frame	3000 V
