MX34E08N Series
Manufacturer: JAE Electronics
Beta
⌘K

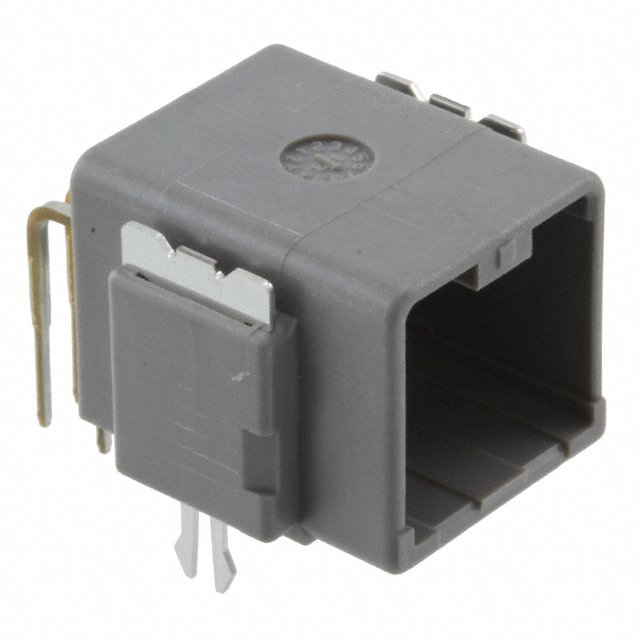

CONN HEADER R/A 8POS 2.4MM
| Part | Applications | Contact Material | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Current Rating (Amps) | Termination | Number of Positions Loaded | Number of Positions | Style | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Number of Rows [custom] | Insulation Material | Insulation Color | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Mounting Type | Contact Length - Mating | Contact Length - Mating | Connector Type | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Brass | 2.4 mm | 0.094 in | Locking Ramp | Tin | 3.5 mm | 0.138 " | 3 A | Solder | All | 8 | Board to Cable/Wire | 0.126 " | 3.2 mm | Square | 2 | Glass Filled Syndiotactic Polystyrene (SPS) | Gray | Shrouded - 4 Wall | 85 °C | -40 C | 14.2 mm | 0.559 " | Right Angle Through Hole | 0.303 in | 7.7 mm | Header | Male Pin | Board Lock |
