09200161 Series
Manufacturer: HARTING
Beta
⌘K
CONN HOOD TOP ENTRY SZ16A PG16
| Part | Ingress Protection | Style | Housing Material | Housing Color | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Housing Finish | Connector Type | Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

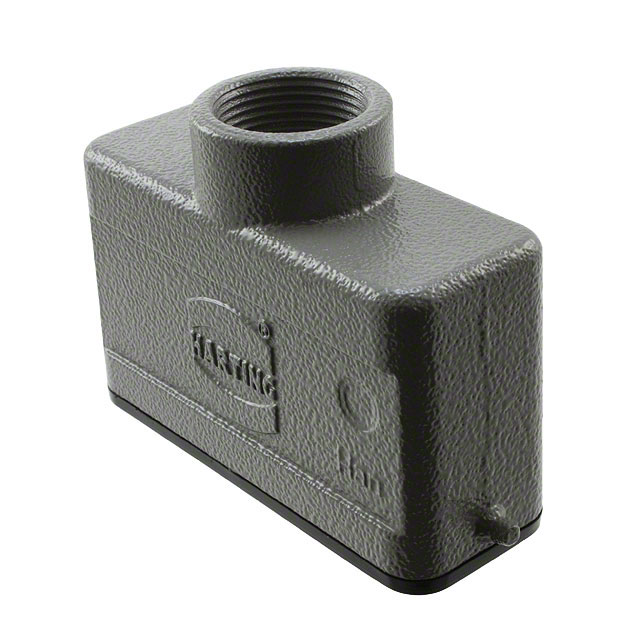

 HARTING | IP65 - Dust Tight Water Resistant | Top Entry | Aluminum Die Cast | Gray | PG16 | 125 °C | -40 C | Locking Clip (1) on Base Bottom | 1.85 in | 1.161 in | 3.13 " | 47 mm | 29.5 mm | 79.5 mm | Powder Coated | Hood | 16 A | |

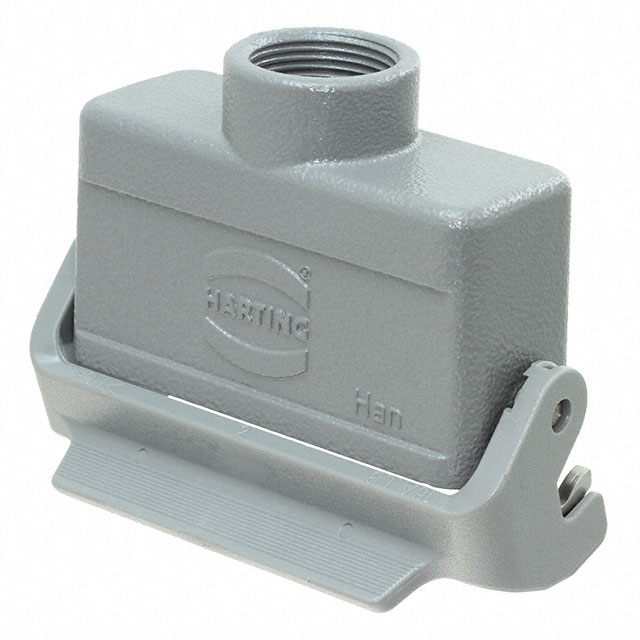

 HARTING | Bottom Entry Top or Bottom Entry | PG16 | Locking Clip (1) on Hood Top | 1.654 in | 1.161 in | 3.118 in | 42 mm | 29.5 mm | 79.2 mm | Hood - Coupling | 16 A | Cable to Cable |
