R12509 Series

Catalog

SMA / STRAIGHT PLUG CLAMP TYPE C

Part	Body Finish	Center Contact Plating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Mating Cycles	Dielectric Material	Contact Termination	Number of Ports	Center Contact Material	Connector Style	Connector Type	Cable Group	Cable Group	Shield Termination	Mounting Type	Fastening Type	Impedance	Housing Color	Frequency - Max [Max]

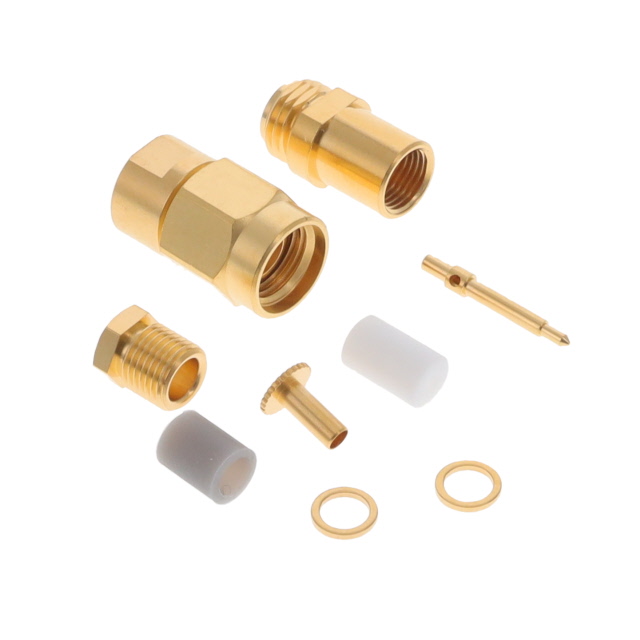

Radiall USA, Inc. R125091000	Gold	Gold	250 V	-65 ░C	165 °C	Stainless Steel	500	Polytetrafluoroethylene (PTFE)	Crimp Solder	1	Brass	SMA	Plug Male Pin	RG-174	316	Clamp	Free Hanging (In-Line)	Threaded	50 Ohms	Gold	12.4 GHz
Radiall USA, Inc. R125091000W	Gold	Gold	250 V	-65 ░C	165 °C	Stainless Steel	500	Polytetrafluoroethylene (PTFE)	Crimp Solder	1	Brass	SMA	Plug Male Pin	RG-174	316	Clamp	Free Hanging (In-Line)	Threaded	50 Ohms	Gold	12.4 GHz

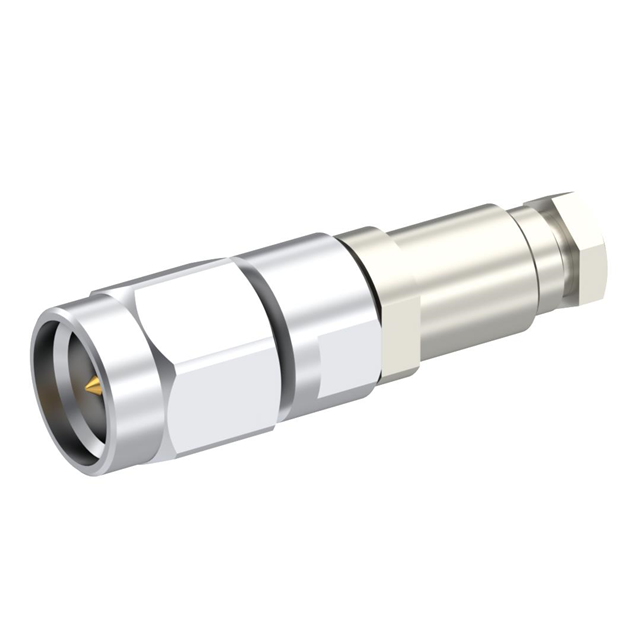

Radiall USA, Inc. R125091001		Gold	335 V	-65 ░C	165 °C	Stainless Steel	500	Polytetrafluoroethylene (PTFE)	Crimp Solder	1	Brass	SMA	Plug Male Pin	RG-174	316	Clamp	Free Hanging (In-Line)	Threaded	50 Ohms	Silver	12.4 GHz
Radiall USA, Inc. R125091001W		Gold	250 V	-65 ░C	165 °C	Stainless Steel	500	Polytetrafluoroethylene (PTFE)	Crimp Solder	1	Brass	SMA	Plug Male Pin	RG-174	316	Clamp	Free Hanging (In-Line)	Threaded	50 Ohms	Silver	12.4 GHz
