HVG.2W Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Contact Material	Orientation [custom]	Color	Mounting Feature	Contact Finish - Mating	Shell Finish	Ingress Protection	Shell Size - Insert	Connector Type	Mounting Type	Primary Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Features	Material Flammability Rating	Applications	Insert Material	Shielding	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Termination
LEMO HVG.2W.304.CLLP	Bronze	G	Silver	Bulkhead - Rear Side Nut	Gold	Chrome	IP68 - Dust Tight Waterproof	304	Receptacle Female Sockets	Panel Mount	Metal	4	80 °C	-20 ░C	Threaded	Potted	UL94 V-0	Audio Aviation Military	Polyetheretherketone (PEEK)	Shielded	15 A	1.5 Ám	59 Áin	Brass
LEMO HVG.2W.318.CLNPV	Bronze	G	Silver	Bulkhead - Rear Side Nut	Gold	Chrome	IP68 - Dust Tight Waterproof	318	Receptacle Female Sockets	Panel Mount Through Hole	Metal	18	80 °C	-20 ░C	Threaded	Potted Vacuumtight	UL94 V-0	Audio Aviation Military	Polyetheretherketone (PEEK)	Shielded	5.5 Amps	1.5 Ám	59 Áin	Brass	Solder
LEMO HVG.2W.306.CLLPV	Bronze	G	Silver	Bulkhead - Rear Side Nut	Gold	Chrome	IP68 - Dust Tight Waterproof	306	Receptacle Female Sockets	Panel Mount	Metal	6	80 °C	-20 ░C	Threaded	Potted Vacuumtight	UL94 V-0	Audio Aviation Military	Polyetheretherketone (PEEK)	Shielded	12 Amps	1.5 Ám	59 Áin	Brass

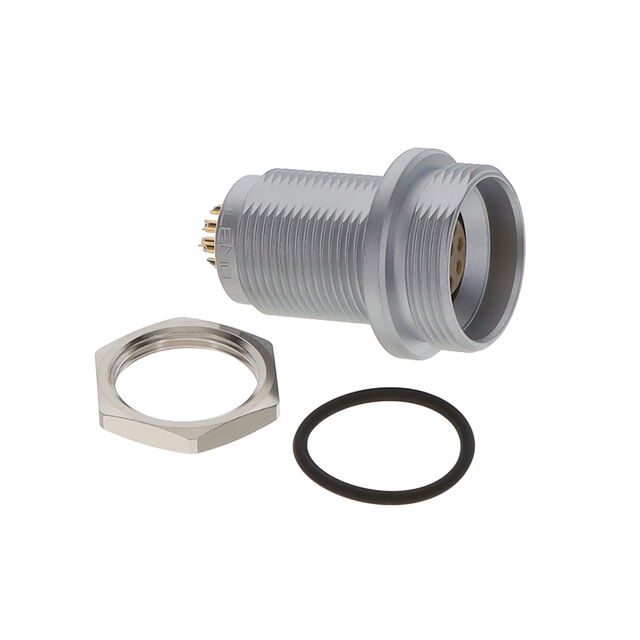

LEMO HVG.2W.310.CLLP	Bronze	G	Silver	Bulkhead - Rear Side Nut	Gold	Chrome	IP68 - Dust Tight Waterproof	310	Receptacle Female Sockets	Panel Mount	Metal	10	80 °C	-20 ░C	Threaded	Potted	UL94 V-0	Audio Aviation Military	Polyetheretherketone (PEEK)	Shielded	8 A	1.5 Ám	59 Áin	Brass
LEMO HVG.2W.302.CLLPV	Bronze	G	Silver	Bulkhead - Rear Side Nut	Gold	Chrome	IP68 - Dust Tight Waterproof	302	Receptacle Female Sockets	Panel Mount	Metal	2	80 °C	-20 ░C	Threaded	Potted Vacuumtight	UL94 V-0	Audio Aviation Military	Polyetheretherketone (PEEK)	Shielded	30 A	1.5 Ám	59 Áin	Brass
LEMO HVG.2W.319.CLLP	Bronze	G	Silver	Bulkhead - Rear Side Nut	Gold	Chrome	IP68 - Dust Tight Waterproof	319	Receptacle Female Sockets	Panel Mount	Metal	19	80 °C	-20 ░C	Threaded	Potted	UL94 V-0	Audio Aviation Military	Polyetheretherketone (PEEK)	Shielded	5 A	1.5 Ám	59 Áin	Brass
LEMO HVG.2W.310.CLLPV	Bronze	G	Silver	Bulkhead - Rear Side Nut	Gold	Chrome	IP68 - Dust Tight Waterproof	310	Receptacle Female Sockets	Panel Mount	Metal	10	80 °C	-20 ░C	Threaded	Potted Vacuumtight	UL94 V-0	Audio Aviation Military	Polyetheretherketone (PEEK)	Shielded	8 A	1.5 Ám	59 Áin	Brass
