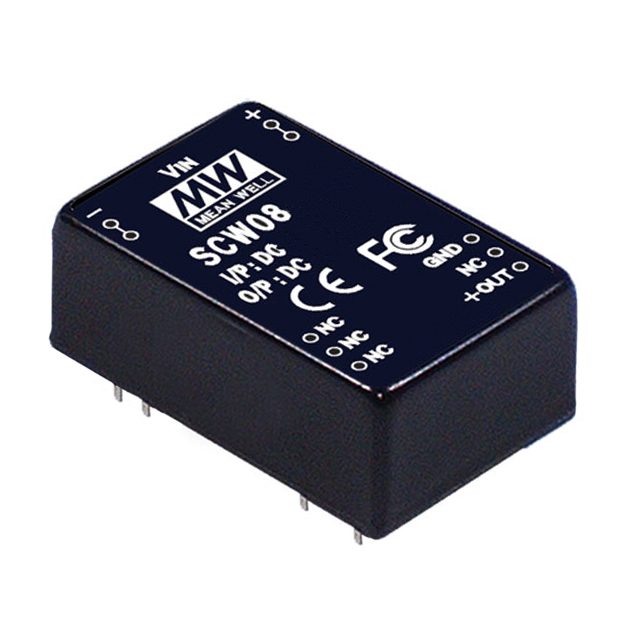

SCW08 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 12V 8W
| Part | Features | Voltage - Output 1 | Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Number of Outputs | Voltage - Input (Max) [Max] | Voltage - Isolation | Current - Output (Max) [Max] | Mounting Type | Power (Watts) | Efficiency | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | OCP SCP | 12 V | Isolated Module | -40 °C | 71 °C | 24-DIP Module 8 Leads | 36 V | 0.8 " | 1.25 in | 12.2 mm | 0.48 " | 31.8 mm | 20.3 mm | 1 | 72 V | 1000 V | 670 mA | Through Hole | 8 W | 81 % | ITE (Commercial) |
