CDSOD323 Series

Catalog

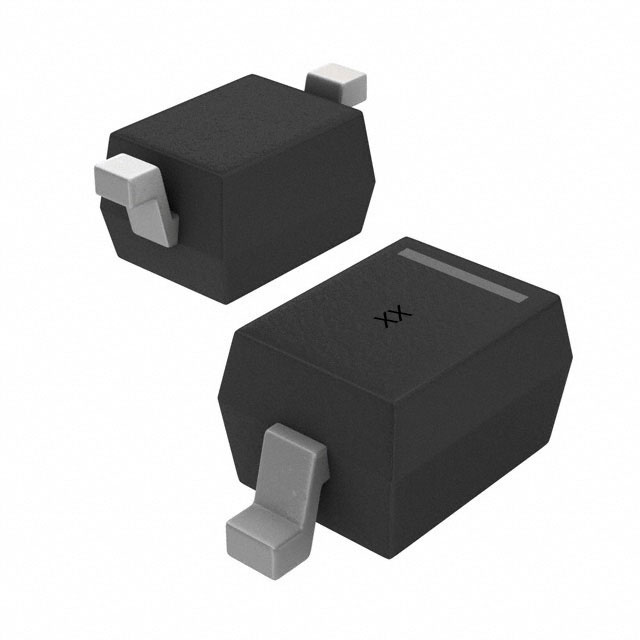

TVS DIODE 12VWM 25.9VC SOD323

Part	Voltage - Clamping (Max) @ Ipp	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Capacitance @ Frequency	Power - Peak Pulse	Package / Case	Applications	Type	Unidirectional Channels [custom]	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]
Bourns Inc. CDSOD323-T12S	25.9 V	Surface Mount	SOD-323	150 °C	-55 °C	21 A	13.3 V	12 V	1 MHz 150 pF	500 W	SC-76 SOD-323	General Purpose	Zener	1
Bourns Inc. CDSOD323-T24SC	46.2 V	Surface Mount	SOD-323	150 °C	-55 °C	9 A	26.7 V	24 V	40 pF	400 W	SC-76 SOD-323	General Purpose	Zener		1
Bourns Inc. CDSOD323-T03SC		Surface Mount	SOD-323	150 °C	-55 °C	43 A	4 V	3.3 V	200 pF	400 W	SC-76 SOD-323	General Purpose	Zener		1	10.9 V
Bourns Inc. CDSOD323-T18C		Surface Mount	SOD-323	150 °C	-55 °C	8 A	20 V	18 V	1 MHz 3 pF	350 W	SC-76 SOD-323	General Purpose	Zener		1	45 V
Bourns Inc. CDSOD323-T08S		Surface Mount	SOD-323	150 °C	-55 °C	34 A	8.5 V	8 V	1 MHz 250 pF	500 W	SC-76 SOD-323	General Purpose	Zener	1		16.9 V
Bourns Inc. CDSOD323-T05S	13.5 V	Surface Mount	SOD-323	150 °C	-55 °C	42 A	6 V	5 V	1 MHz 350 pF	500 W	SC-76 SOD-323	General Purpose	Zener	1
Bourns Inc. CDSOD323-T08SC		Surface Mount	SOD-323	150 °C	-55 °C	17 A	8.5 V	8 V	1 MHz 150 pF	400 W	SC-76 SOD-323	General Purpose	Zener		1	18.5 V
Bourns Inc. CDSOD323-T12C		Surface Mount	SOD-323	150 °C	-55 °C	11 A	13.3 V	12 V	1 MHz 3 pF	350 W	SC-76 SOD-323	General Purpose	Zener		1	28.3 V
Bourns Inc. CDSOD323-T05SC	14.5 V	Surface Mount	SOD-323	150 °C	-55 °C	28 A	6 V	5 V	175 pF	400 W	SC-76 SOD-323	General Purpose	Zener		1
Bourns Inc. CDSOD323-T24LC	56 V	Surface Mount	SOD-323	150 °C	-55 °C	6 A	26.7 V	24 V	1 pF	250 W	SC-76 SOD-323	HDMI USB OTG	Zener		1
