6609075 Series

Catalog

LINE FILTER 125VDC 15A PNL MT

Part	Voltage - Rated DC	Applications	Filter Type	Current	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Approval Agency	Configuration	Inductance	Voltage - Rated AC (Phase to Phase)	Voltage - Rated AC (Phase to Ground/Neutral)

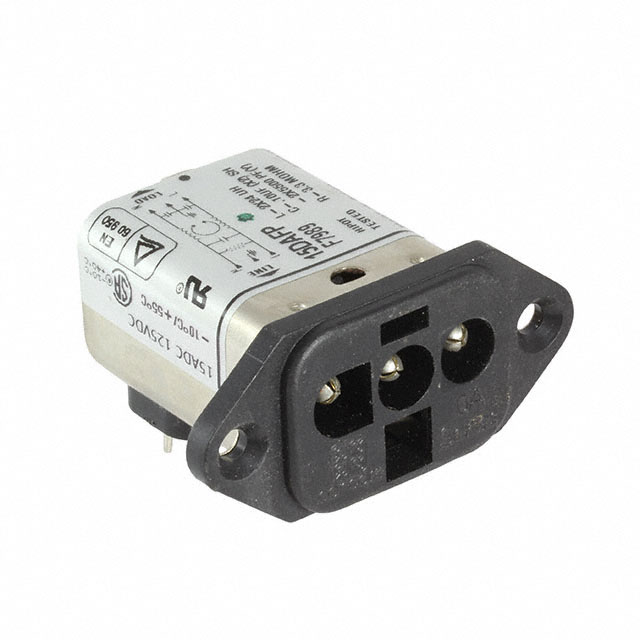

TE Connectivity Corcom Filters 6609075-9	125 V	General Purpose	Single Phase	15 A	Panel Mount	55 °C	-10 °C	PC Pins	CSA TUV UL	Single Stage	24 µH

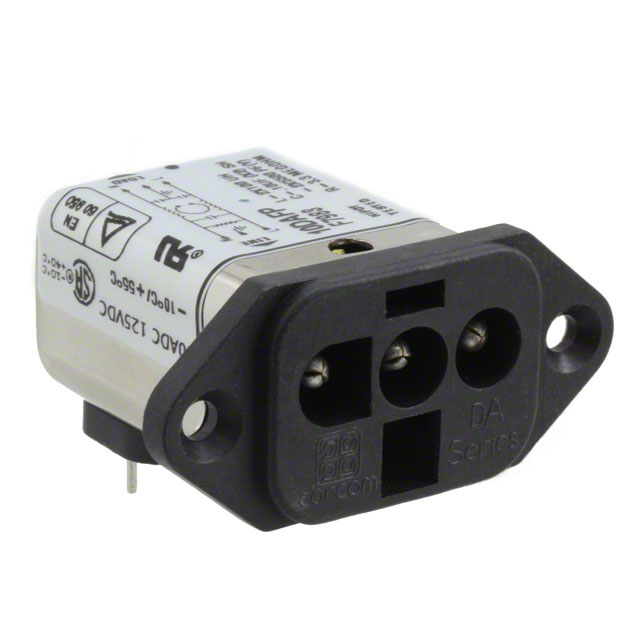

TE Connectivity Corcom Filters 6609075-7	125 V	General Purpose	Single Phase	10 A	Panel Mount	55 °C	-10 °C	PC Pins	CSA TUV UL	Single Stage
TE Connectivity Corcom Filters 2-6609075-9	125 V	General Purpose	DC	15 A	Panel Mount	40 °C	-10 °C	SMD (SMT) Tab	CSA TUV UL		24 µH	1.45 kV	2.25 kV
