32RK647 Series
Manufacturer: Rosenberger
Beta
⌘K

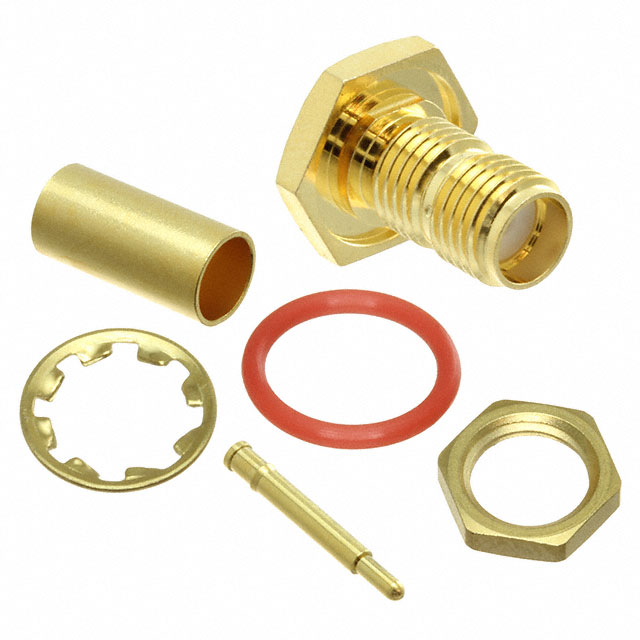

CONN RP-SMA JACK STR 50OHM SOLDR
| Part | Body Material | Body Finish | Center Contact Plating | Includes | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Connector Style | Mounting Feature | Center Contact Material | Frequency - Max [Max] | Impedance | Cable Group | Housing Color | Fastening Type | Shield Termination | Number of Ports | Contact Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | Gold | Gold | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | 480 V | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Jack Male Pin | RP-SMA | Bulkhead - Front Side Nut | Beryllium Copper | 12.4 GHz | 50 Ohms | 188A 316 RG-174A | Gold | Threaded | Crimp | 1 | Solder | Panel Mount |
