9519 Series
Manufacturer: Belden Inc.
Beta
⌘K

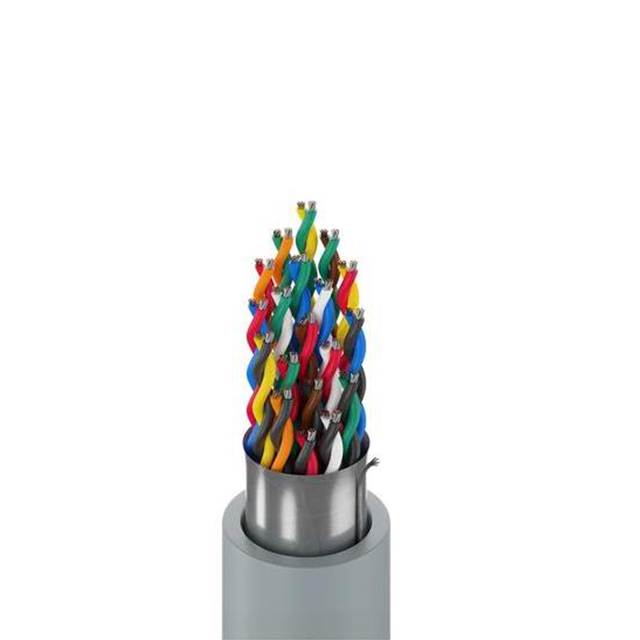

MULTI-PAIR 38COND 24AWG
| Part | Shield Material | Shield Coverage | Wire Gauge | Number of Conductors | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket Color | Conductor Material | Features | Shield Type | Length [x] | Length [x] | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Material | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 24 AWG | 38 | 300 VDC | 0.864 mm | 0.034 in | 7 | 32 AWG | UL Style 2464 | Chrome | Copper Tinned | Drain Wire | Foil | 100 ft | 30.5 m | Computer | 0.448 in | 11.38 mm | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Multi-Pair | 80 °C | -30 ░C |
