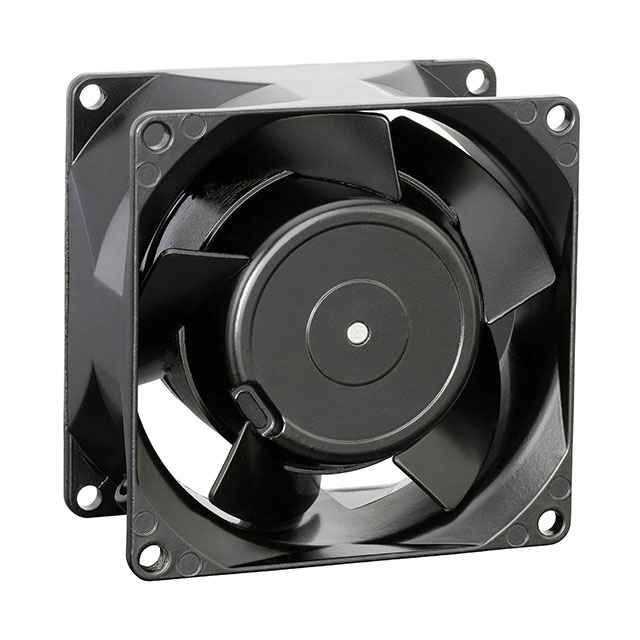

8500 Series

Catalog

FAN AXIAL 80X38MM 115VAC WIRE

Part	Air Flow	Air Flow	Lifetime @ Temp.	Material - Frame	Material - Blade	Noise	Fan Type	Voltage - Rated	Bearing Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Width [y]	Weight	Weight	Air Flow	Ingress Protection	RPM	Termination

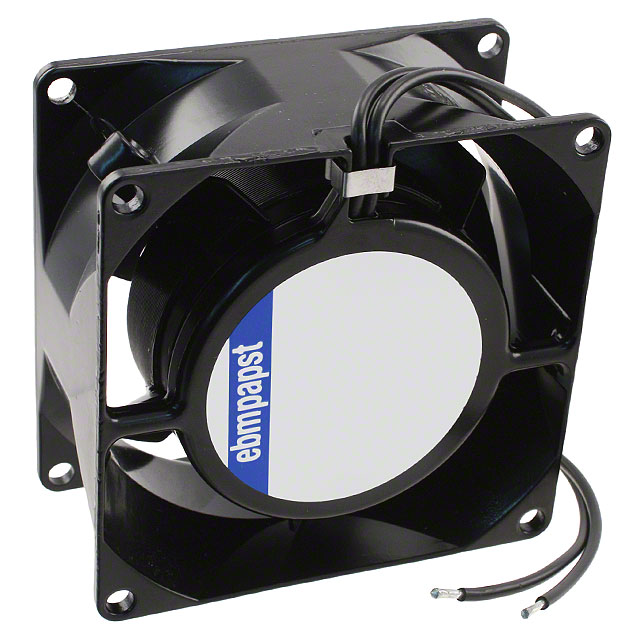

ebm-papst Inc. 8500N	1.01 m³/min	35.9 CFM	55000 Hrs	Metal	Metal	34 dB(A)	Tubeaxial	115 VAC	Sintec	11 W	75 ░C	-10 °C	80 mm	80 mm	CE CSA UL VDE	38 mm	499 g	1.1 lbs	35.9 CFM	IP20	3200 RPM	2 Wire Leads

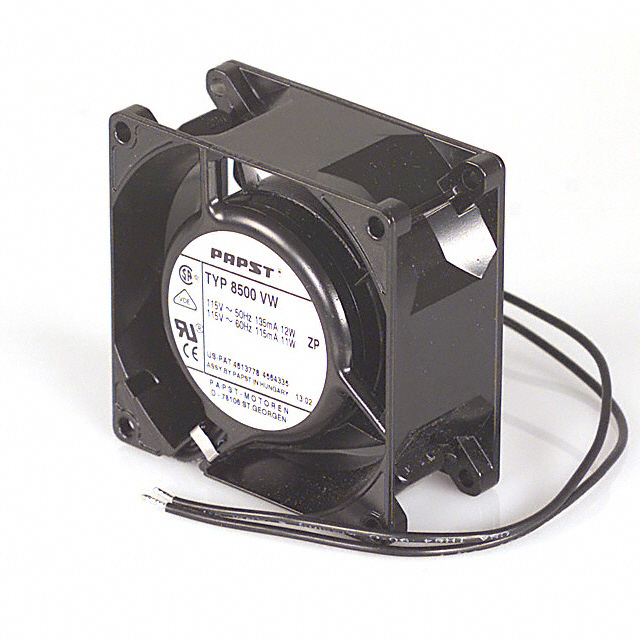

ebm-papst Inc. 8500VW	1.01 m³/min			Metal	Metal	34 dB(A)	Tubeaxial	115 VAC	Sintec	11 W			80 mm	80 mm	CSA UL VDE	38 mm	499 g	1.1 lbs	36 CFM			2 Wire Leads

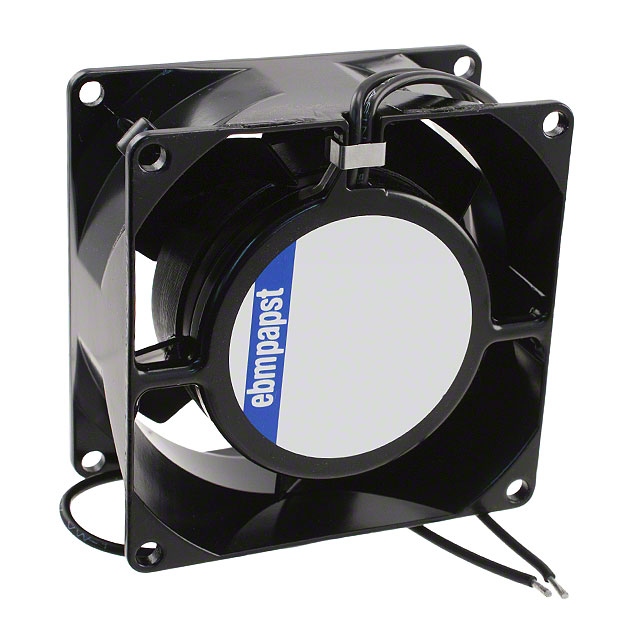

ebm-papst Inc. 8500DP	1.01 m³/min	35.9 CFM		Metal	Metal	34 dB(A)	Tubeaxial	115 VAC	Sintec	11 W			80 mm	80 mm		38 mm	499 g	1.1 lbs	35.9 CFM		3200 RPM	2 Wire Leads
