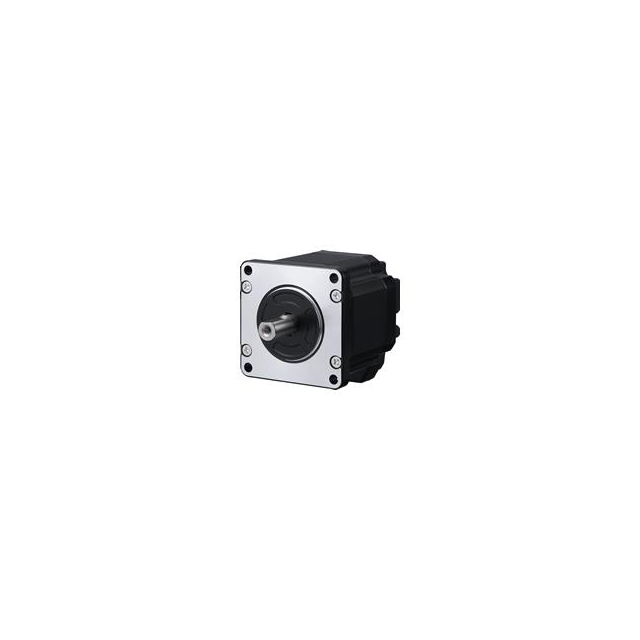

PBM603 Series
Manufacturer: Sanyo Denki SanMotion Products
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
PB, PB, SQ.60, FOR PB3D, , ,
| Part | Rotor Inertia | Approval Agency | Voltage - Rated | Type | Mounting Hole Spacing | Coil Type | Length - Shaft and Bearing | Operating Temperature (Min) | Operating Temperature (Max) | Diameter - Shaft | Torque - Holding (oz-in) | Torque - Holding (mNm) | Size / Dimension Length | Size / Dimension Shape | Size / Dimension Width | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki SanMotion Products | 9.62 gcm² | CE cURus TUV | 48 VDC | Hybrid | 1.969 in | Bipolar | 0.811 in | -10 °C | 40 °C | 0.394 in | 184.1 oz-in | 1300 mNm | 2.362 in | Square | 2.362 in | Wire Leads with Connector |
