HLP Series

Catalog

CONN PLUG HSG 9POS 3.96MM

Part	Note	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Fastening Type	Color	Pitch	Pitch	Insulation Material	Contact Termination	Number of Positions	Connector Type	Mounting Type	Row Spacing	Row Spacing	Number of Rows

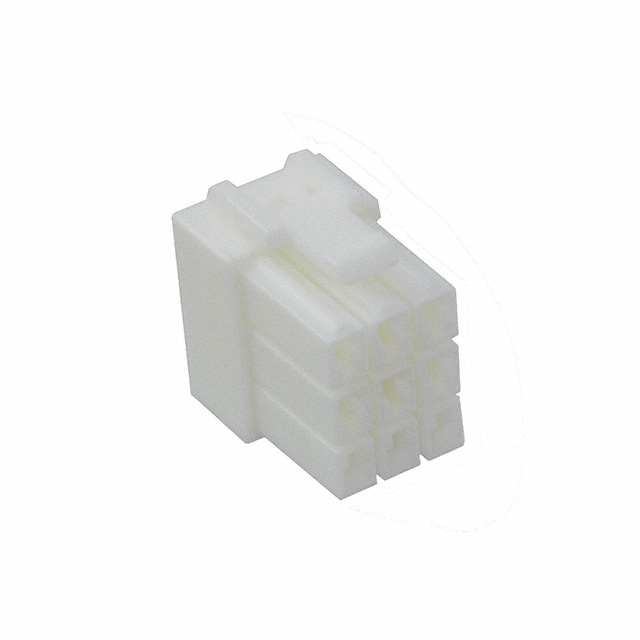

JST Sales America Inc. HLP-09V	Contacts Not Included	3	90 °C	-25 °C	Female Socket	Latch Lock	White	3.96 mm	0.156 in	Nylon 6/6 Polyamide (PA66)	Crimp	9	Plug	Free Hanging (In-Line)	0.156 in	3.96 mm
JST Sales America Inc. HLP-12V	Contacts Not Included	2	90 °C	-25 °C	Female Socket	Latch Lock	White	3.96 mm	0.156 in	Nylon 6/6 Polyamide (PA66)	Crimp	12	Plug	Free Hanging (In-Line)	0.156 in	3.96 mm

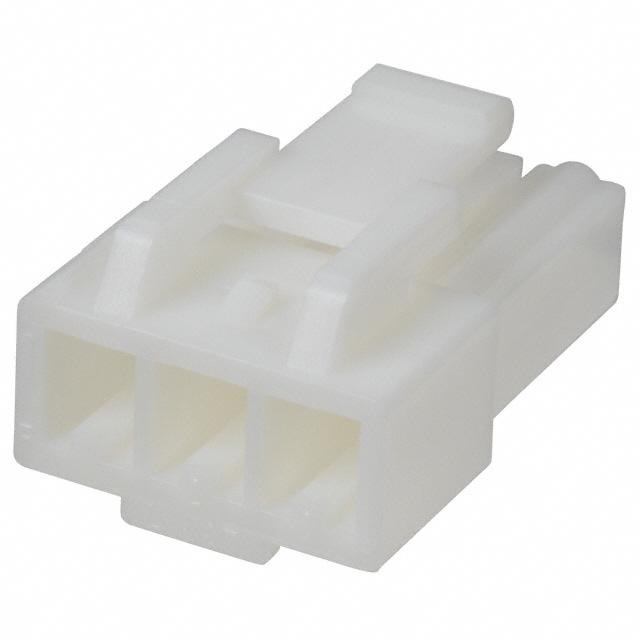

JST Sales America Inc. HLP-03V	Contacts Not Included		90 °C	-25 °C	Female Socket	Latch Lock	White	3.96 mm	0.156 in	Nylon 6/6 Polyamide (PA66)	Crimp		Plug	Free Hanging (In-Line)			1

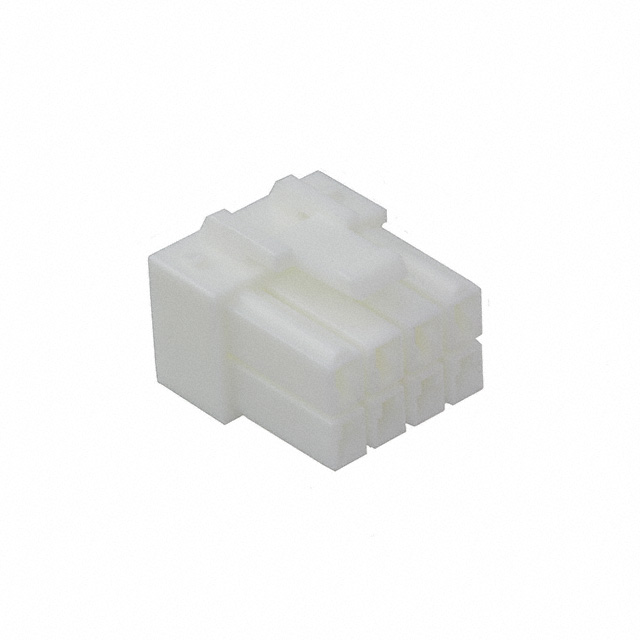

JST Sales America Inc. HLP-08V	Contacts Not Included	2	90 °C	-25 °C	Female Socket	Latch Lock	White	3.96 mm	0.156 in	Nylon 6/6 Polyamide (PA66)	Crimp	8	Plug	Free Hanging (In-Line)	0.156 in	3.96 mm

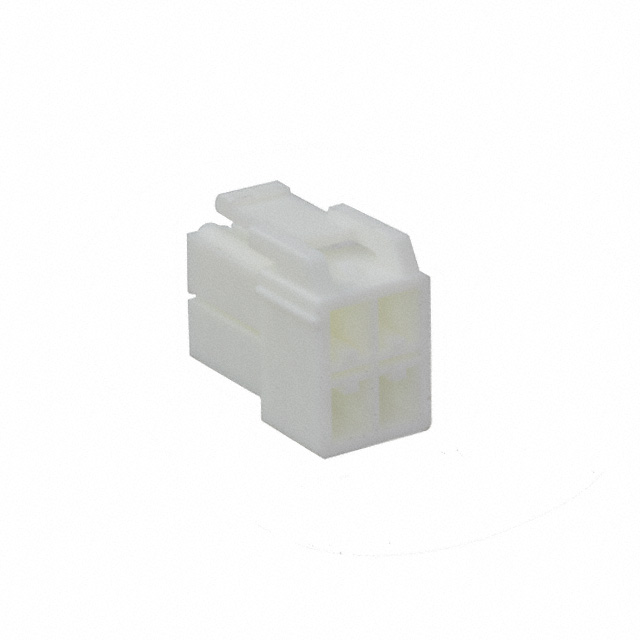

JST Sales America Inc. HLP-04V	Contacts Not Included	2	90 °C	-25 °C	Female Socket	Latch Lock	White	3.96 mm	0.156 in	Nylon 6/6 Polyamide (PA66)	Crimp	4	Plug	Free Hanging (In-Line)	0.156 in	3.96 mm

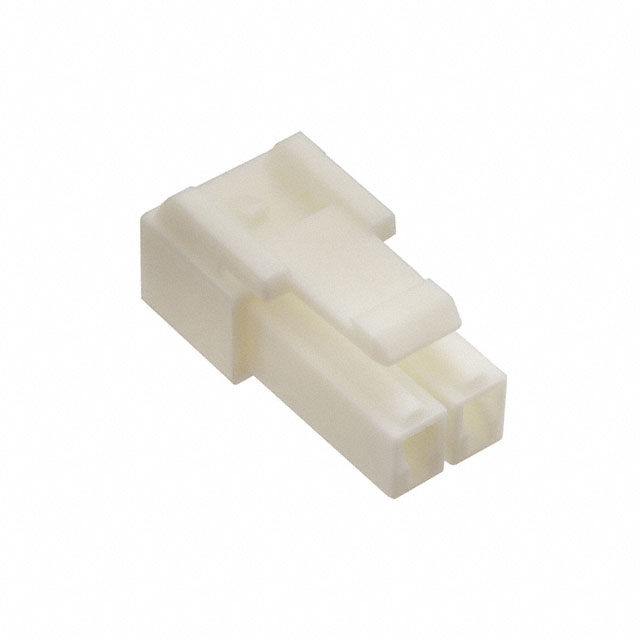

JST Sales America Inc. HLP-02V	Contacts Not Included		90 °C	-25 °C	Female Socket	Latch Lock	White	3.96 mm	0.156 in	Nylon 6/6 Polyamide (PA66)	Crimp	2	Plug	Free Hanging (In-Line)			1
