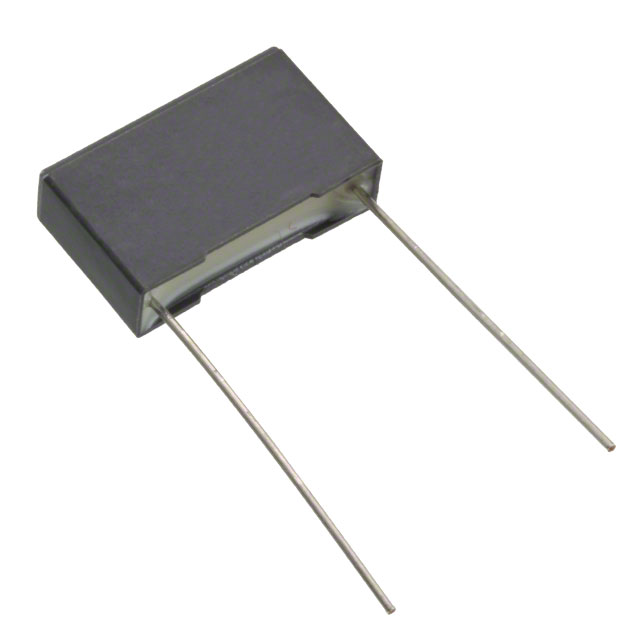

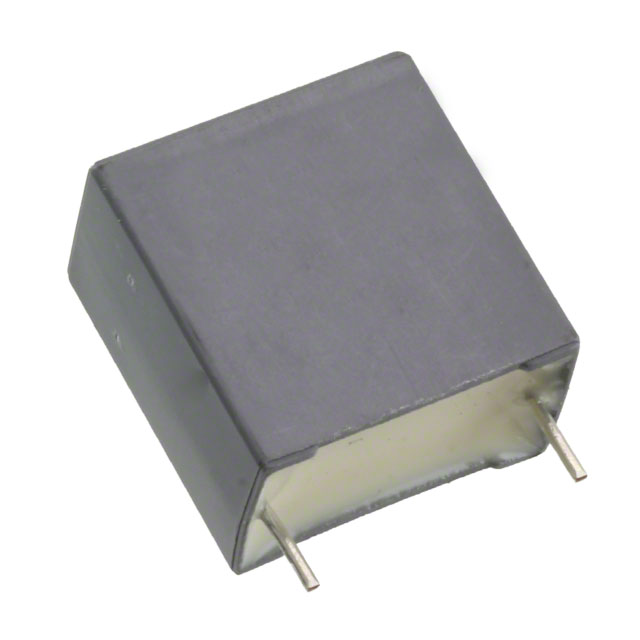

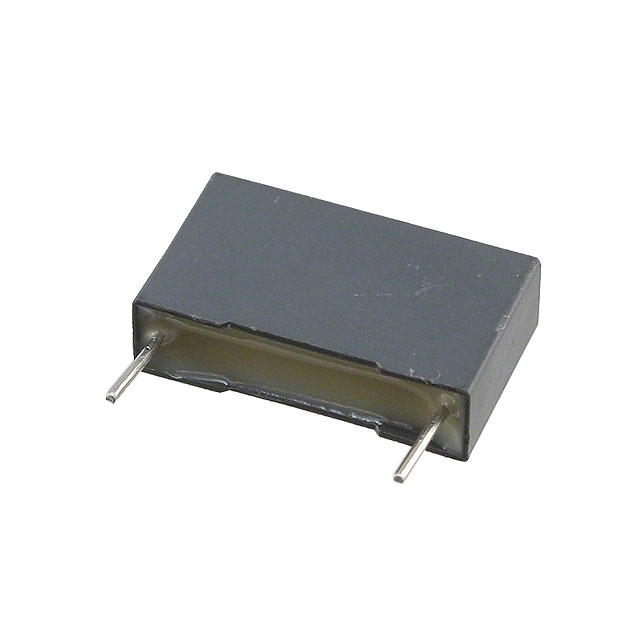

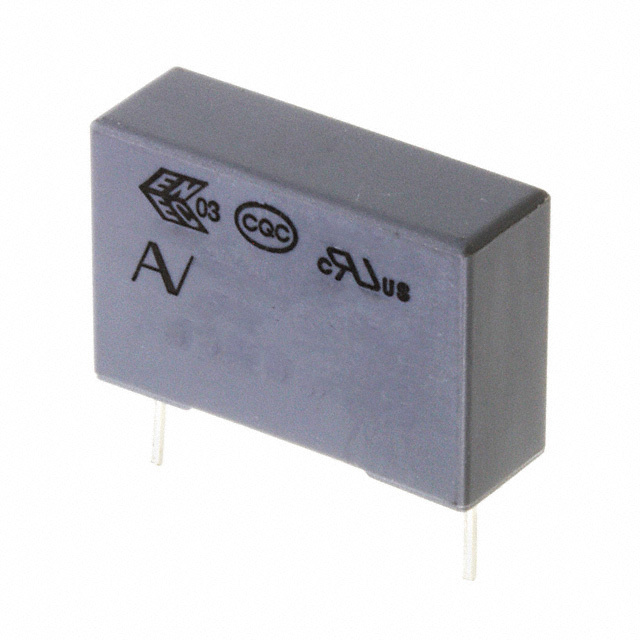

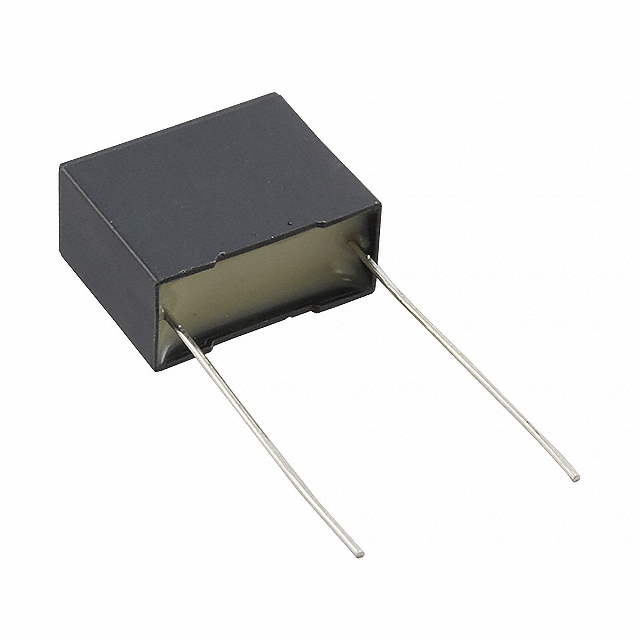

R46KI Series

Manufacturer: KEMET

Catalog

Catalog

CAP FILM 0.68UF 10% 560VDC RAD

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Mounting Type	Voltage Rating - DC	Capacitance	Termination	Dielectric Material	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Applications	Voltage Rating - AC	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [y]	Height - Seated (Max) [Max]
KEMET R46KI368000P0K	0.709 in	0.433 in	18 mm	11 mm	10 %	Through Hole	560 V	0.68 µF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C	19.1 mm	0.752 "	15 mm	0.591 in	EMI RFI Suppression	275 V	X2
KEMET R46KI3470JPM1M	0.709 in	0.433 in	18 mm	11 mm	20 %	Through Hole	560 V	0.47 µF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C	19.1 mm	0.752 "	15 mm	0.591 in	EMI RFI Suppression	275 V	X2
KEMET R46KI347040M1K	0.709 in	0.433 in	18 mm	11 mm	10 %	Through Hole	560 V	0.47 µF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C	19.1 mm	0.752 "	15 mm	0.591 in	EMI RFI Suppression	275 V	X2
KEMET R46KI333000P2M	0.709 in	0.236 "	18 mm	6 mm	20 %	Through Hole	560 V	0.33 µF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C			15 mm	0.591 in	EMI RFI Suppression	275 V	X2	0.693 in	17.6 mm
KEMET R46KI333000M1K	0.709 in	0.394 in	18 mm	10 mm	10 %	Through Hole	560 V	0.33 µF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C	16.1 mm		15 mm	0.591 in	EMI RFI Suppression	275 V	X2			0.634 "
KEMET R46KI31000001M	0.709 in	0.197 "	18 mm		20 %	Through Hole	560 V	100000 pF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C		0.437 in	15 mm	0.591 in	EMI RFI Suppression	275 V	X2				11.1 mm	5 mm
KEMET R46KI3470DQ02M	0.709 in	0.295 in	18 mm	7.5 mm	20 %	Through Hole	560 V	0.47 µF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C			15 mm	0.591 in	EMI RFI Suppression	275 V	X2				0.732 in		18.6 mm
KEMET R46KI333040P1K	0.709 in	0.354 in	18 mm	9 mm	10 %	Through Hole	560 V	0.33 µF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C			15 mm	0.591 in	EMI RFI Suppression	275 V	X2	12.6 mm		0.496 in
KEMET R46KI347000M1K	0.709 in	0.433 in	18 mm	11 mm	10 %	Through Hole	560 V	0.47 µF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C	19.1 mm	0.752 "	15 mm	0.591 in	EMI RFI Suppression	275 V	X2
KEMET R46KI347040P0M	0.709 in	0.335 in	18 mm	8.5 mm	20 %	Through Hole	560 V	0.47 µF	PC Pins	Polypropylene (PP) Metallized	Radial	-40 C	110 °C			15 mm	0.591 in	EMI RFI Suppression	275 V	X2			0.575 in	14.6 mm
