AWH 26A Series
Manufacturer: Assmann WSW Components
Beta
⌘K

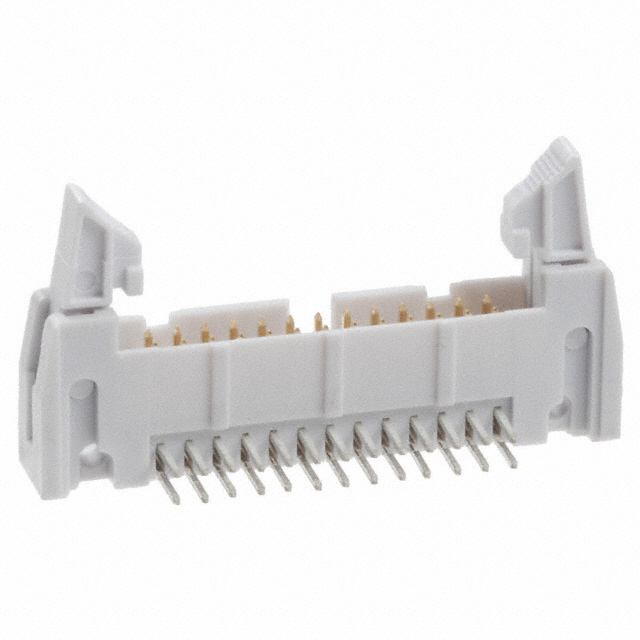

CONN HEADER R/A 26POS 2.54MM
| Part | Features | Insulation Color | Number of Positions Loaded | Mounting Type | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Material Flammability Rating | Style | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Connector Type | Number of Positions | Termination | Pitch - Mating | Pitch - Mating | Contact Material | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Insulation Material | Current Rating (Amps) | Contact Shape | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Keying Slot | Gray | All | Right Angle Through Hole | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Latch Lock/Eject Hooks | UL94 V-0 | Board to Cable/Wire | Gold | -40 C | 105 ░C | 2 | Header | 26 | Solder | 0.1 " | 2.54 mm | Brass | Tin | Flash | 3.81 mm | 0.15 in | Male Pin | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Square | 17 mm | 0.669 in |
