PPPC221 Series

Catalog

CONN HDR 22POS 0.1 GOLD PCB

Part	Contact Material	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Fastening Type	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Type	Current Rating (Amps)	Number of Positions Loaded	Connector Type	Contact Finish - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Contact Length - Post	Contact Length - Post

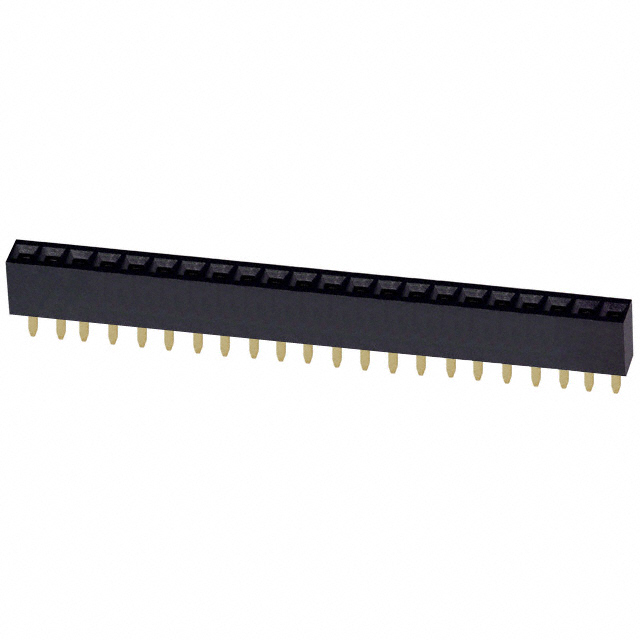

Sullins Connector Solutions PPPC221LFBN-RC	Phosphor Bronze	Flash	Polyester	Square	Push-Pull	0.1 "	2.54 mm	Through Hole	0.335 "	8.51 mm	UL94 V-0	1	Flash	Gold	Female Socket	3 A	All	Header	Gold	Black	-40 C	105 ░C	Solder	22	0.126 "	3.2 mm	250 V

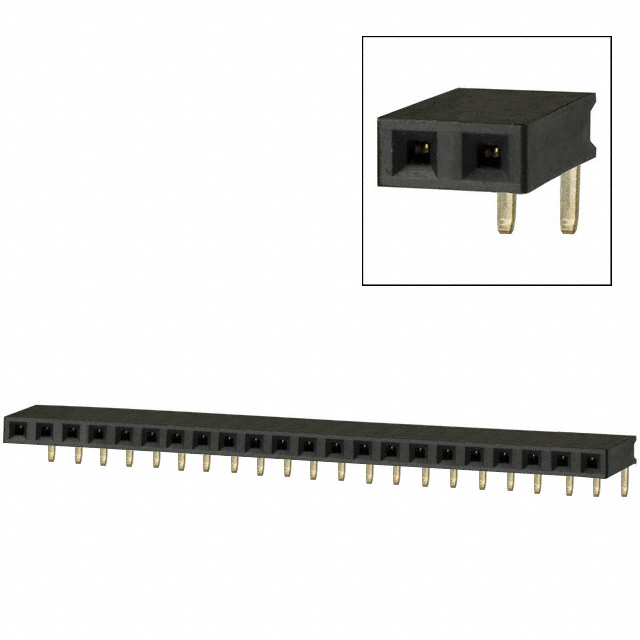

Sullins Connector Solutions PPPC221LGBN	Phosphor Bronze	Flash	Polyester	Square	Push-Pull	0.1 "	2.54 mm	Right Angle Through Hole	0.1 in	2.54 mm	UL94 V-0	1	Flash	Gold	Female Socket	3 A	All	Header	Gold	Black	-40 C	105 ░C	Solder	22			250 V	0.124 in	3.15 mm
Sullins Connector Solutions PPPC221LFBN	Phosphor Bronze	Flash	Polyester	Square	Push-Pull	0.1 "	2.54 mm	Through Hole	0.335 "	8.51 mm	UL94 V-0	1	Flash	Gold	Female Socket	3 A	All	Header	Gold	Black	-40 C	105 ░C	Solder	22	0.126 "	3.2 mm	250 V
Sullins Connector Solutions PPPC221LGBN-RC	Phosphor Bronze	Flash	Polyester	Square	Push-Pull	0.1 "	2.54 mm	Right Angle Through Hole	0.1 in	2.54 mm	UL94 V-0	1	Flash	Gold	Female Socket	3 A	All	Header	Gold	Black	-40 C	105 ░C	Solder	22			250 V	0.124 in	3.15 mm
