ACI4400 Series

Catalog

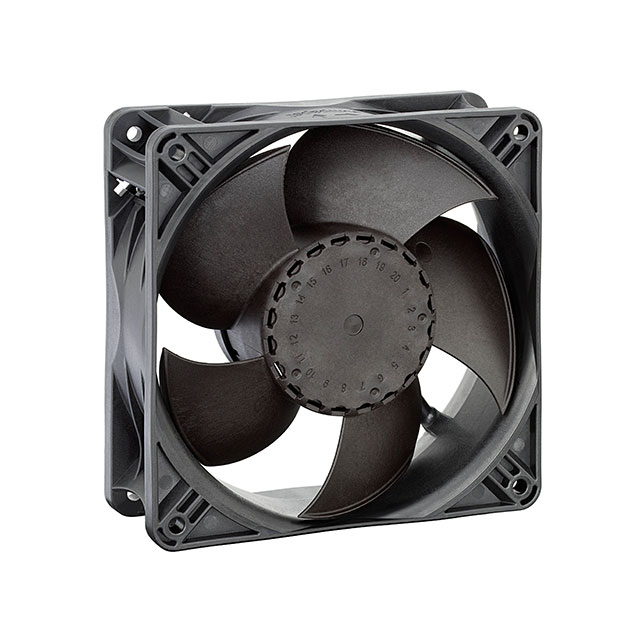

FAN AXIAL 119X38MM 100-240VAC

Part	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Blade	Bearing Type	RPM	Width [y]	Termination	Voltage - Rated [Max]	Voltage - Rated [Min]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Features	Fan Type	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Weight	Weight	Approval Agency	Air Flow	Air Flow	Power (Watts)	Air Flow
ebm-papst Inc. ACI4400H	90 VAC	264 VAC	100000 Hrs	Polyamide (PA) Nylon	Ball	3000 RPM	38 mm	2	240 VAC	100 VAC	Square	119 mm	119 mm	Electronic Commutation (EC) Locked Rotor Sensor	Tubeaxial	43 dB	75 ░C	-40 C	-40 °C	75 °C	IP20	274.88 g	0.606 lb	CSAus cURus	103 CFM	2.88 mł/min	3.8 W
ebm-papst Inc. ACI4400/2HHP	90 VAC	264 VAC	100000 Hrs	Polyamide (PA) Nylon	Ball	3300 RPM	38 mm	5 Terminals	240 VAC	100 VAC	Square	119 mm	119 mm	Electronic Commutation (EC) Locked Rotor Sensor PWM Control Speed Sensor (Tach)	Tubeaxial	43 dB	75 ░C	-40 C	-40 °C	75 °C	IP20	274.88 g	0.606 lb	CSAus cURus	103 CFM	2.88 mł/min	4.5 W
ebm-papst Inc. ACI4400L	90 VAC	264 VAC	100000 Hrs	Polyamide (PA) Nylon	Ball	1500 RPM	38 mm	3 Terminals	240 VAC	100 VAC	Square	119 mm	119 mm	Electronic Commutation (EC) Locked Rotor Sensor	Tubeaxial	23 dB(A)	75 ░C	-40 C	-40 °C	75 °C	IP20	274.88 g	0.606 lb	CSAus cURus	46 CFM	1.29 m³/min	1.1 W
ebm-papst Inc. ACI4400HHAU	90 VAC	264 VAC	100000 Hrs	Polyamide (PA) Nylon	Ball	3300 RPM	38 mm	4	240 VAC	100 VAC	Square	119 mm	119 mm	Electronic Commutation (EC) Locked Rotor Sensor Speed Sensor (Tach)	Tubeaxial	43 dB	75 ░C	-40 C	-40 °C	75 °C	IP65 - Dust Tight Water Resistant	274.88 g	0.606 lb	CSAus cURus	103 CFM	2.88 mł/min	4.5 W	103 CFM
