PC3SF11 Series

Catalog

OPTOISOLATOR 5KV TRIAC 6DIP

Part	Voltage - Off State	Number of Channels [custom]	Mounting Type	Package / Case	Package / Case	Package / Case	Package / Case	Current - Hold (Ih)	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Approval Agency	Current - On State (It (RMS)) (Max) [Max]	Turn On Time [Max]	Static dV/dt (Min) [Min]	Output Type	Current - LED Trigger (Ift) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]

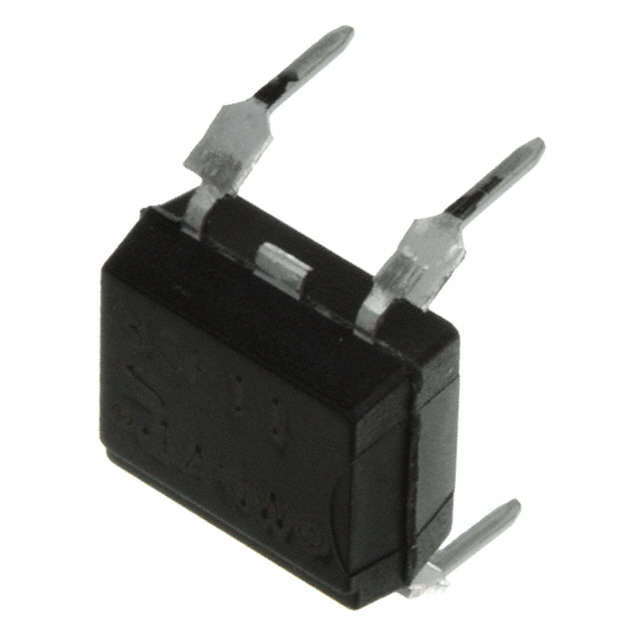

SHARP/Socle Technology PC3SF11YVZAF	600 V	1	Through Hole	6-DIP	0.3 in	5 Leads	7.62 mm	3.5 mA	50 mA	6-DIP	BSI CSA DEMKO FIMKO SEMKO UR VDE	100 mA	100 µs	1 kV/µs	Triac	10 mA	-30 ░C	100 °C

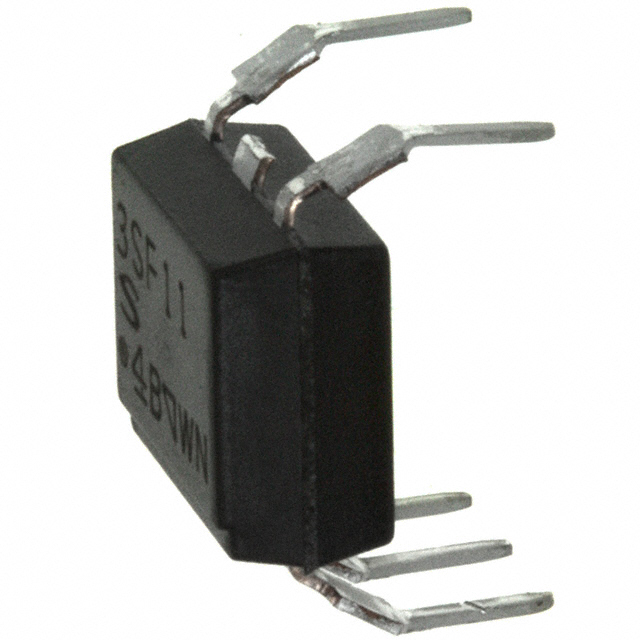

SHARP/Socle Technology PC3SF11YVZBF	600 V	1	Through Hole	6-DIP	0.3 in	5 Leads	7.62 mm	3.5 mA	50 mA	6-DIP	BSI CSA DEMKO FIMKO SEMKO UR VDE	100 mA	100 µs	1 kV/µs	Triac	7 mA	-30 ░C	100 °C

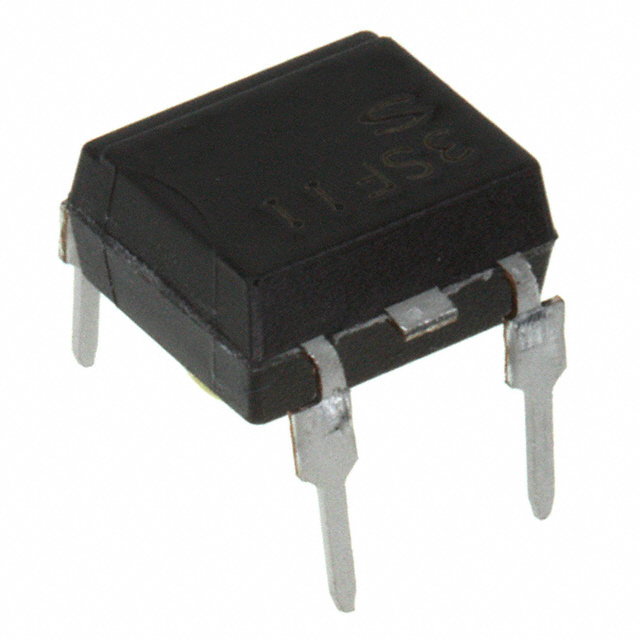

SHARP/Socle Technology PC3SF11YTZBF	600 V	1	Through Hole	6-DIP	0.3 in	5 Leads	7.62 mm	3.5 mA	50 mA	6-DIP	BSI CSA DEMKO FIMKO SEMKO UR VDE	100 mA	100 µs	1 kV/µs	Triac	7 mA	-30 ░C	100 °C
SHARP/Socle Technology PC3SF11YVZBH	600 V	1	Through Hole	6-DIP	10.16 mm	5 Leads	10.16 mm	3.5 mA	50 mA	6-DIP	BSI CSA DEMKO FIMKO SEMKO UR VDE	100 mA	100 µs	1 kV/µs	Triac	7 mA	-30 ░C	100 °C
