6EP34337 Series
Manufacturer: Siemens
Beta
⌘K

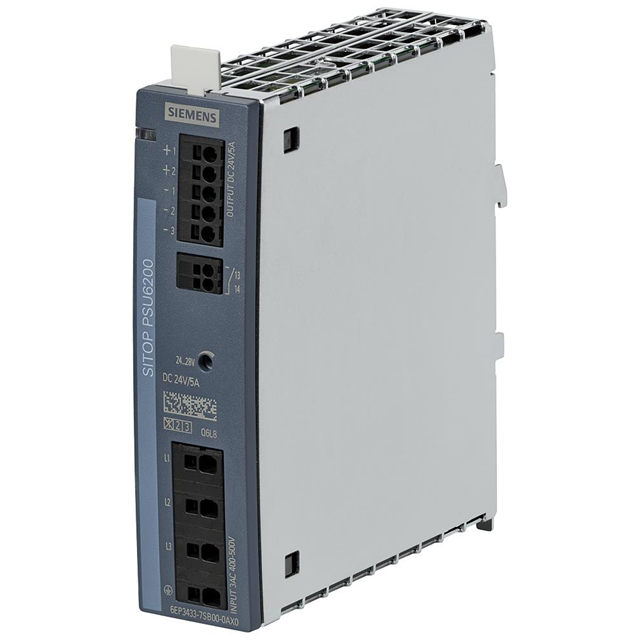

AC/DC DIN RAIL SUPPLY 24V 120W
| Part | Standard Number | Applications | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Efficiency | DC Voltage - Input (Min) [Min] | Approval Agency | Input Type | Voltage - Output 1 | Features | DC Voltage - Input (Max) [Max] | Current - Output (Max) | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | 60950-1; UL 508 | Hazardous Locations Industrial ITE (Commercial) | 120 W | 70 °C | -25 °C | 323 VAC 400 VAC | 500 VAC 576 VAC | 91.2 % | 450 V | CB cCSAus CE CSA cUL cULus UL | AC or DC | 24 V | Adjustable Output IP20 | 600 V | 5 A | 1 | 1.38 in | 5.31 " | 125 mm | 4.92 in | 35 mm | 135 mm |
