2823588 Series

Catalog

M12 D-90 DEGR-F-4,CAT 5 RADOX 7.3MM, H&S

Part	Features	Voltage Rating	Color	Material Flammability Rating	Ingress Protection	Contact Finish - Mating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Insert Material	Termination	Contact Material	Shell Finish	Shielding	Orientation	Shell Material	Number of Positions	Current Rating (Amps)	Connector Type	Mounting Type

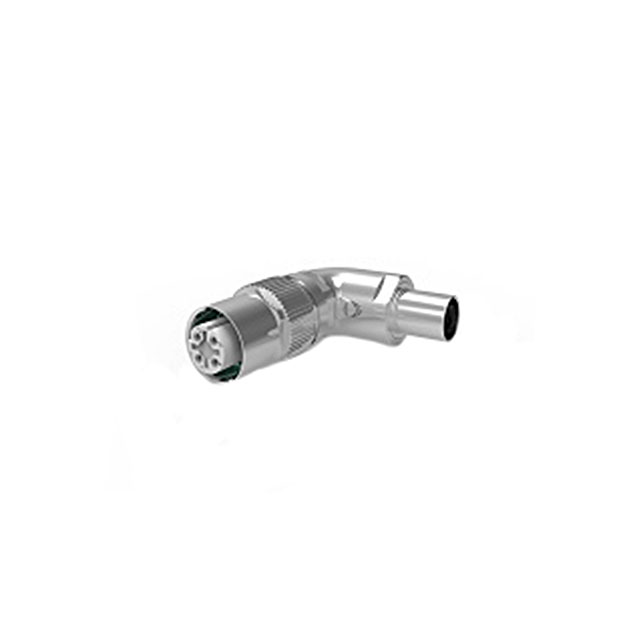

TE Connectivity Raychem Cable Protection 1-2823588-2	Backshell Rotatable	50 V	Silver	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	M12-4	-40 °C	70 °C	Metal	Thermoplastic	Crimp	Copper Alloy	Nickel	Shielded	D	Copper	4	4 A	Receptacle Female Sockets	Free Hanging (In-Line) Right Angle
TE Connectivity Raychem Cable Protection 1-2823588-1	Backshell Rotatable	50 V	Silver	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	M12-4	-40 °C	70 °C	Metal	Thermoplastic	Crimp	Copper Alloy	Nickel	Shielded	D	Copper	4	4 A	Male Pins Plug	Free Hanging (In-Line) Right Angle
