2029058 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

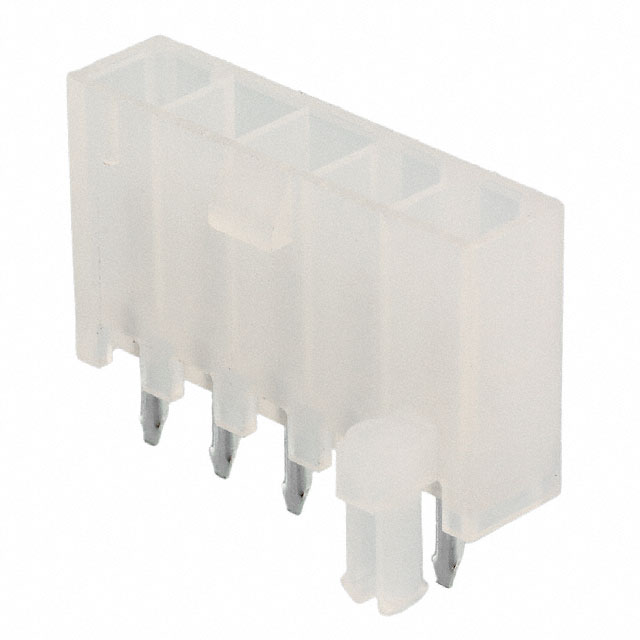

CONN HEADER VERT 5POS 4.2MM
| Part | Connector Type | Contact Shape | Fastening Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Insulation Color | Mounting Type | Pitch - Mating | Pitch - Mating | Shrouding | Material Flammability Rating | Current Rating (Amps) | Voltage Rating | Contact Finish - Post | Insulation Material | Applications | Insulation Height | Insulation Height | Number of Rows | Style | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Contact Type | Termination | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Header | Square | Locking Ramp | 2.03 µm | 80 µin | Brass Alloy | Natural | Through Hole | 4.2 mm | 0.165 in | Shrouded - 4 Wall | UL94 V-2 | 9 A | 600 VAC | Tin | Nylon Polyamide (PA) | General Purpose Industrial Lighting | 12.8 mm | 0.504 in | 1 | Board to Cable/Wire | -40 °C | 105 ░C | All | Male Pin | Solder | 3.5 mm | 0.138 in | 2.03 µm | 80 µin |
