FF0360SA Series
Manufacturer: JAE Electronics
Beta
⌘K

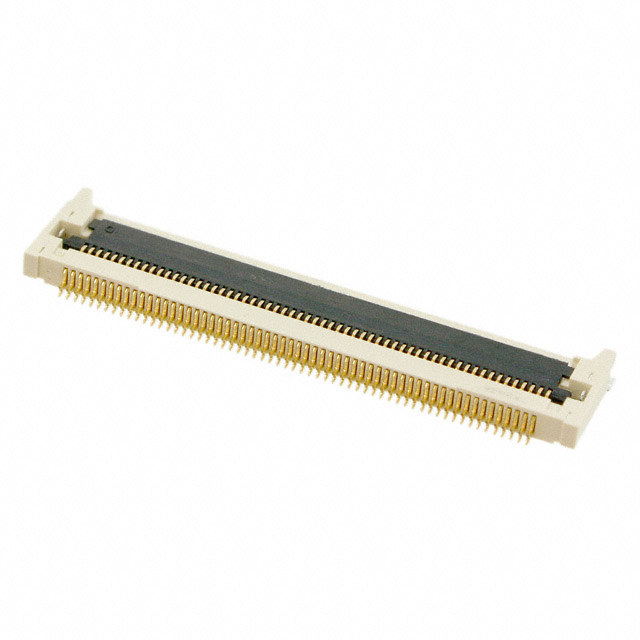

CONN FPC BOTTOM 60POS 0.5MM R/A
| Part | Housing Color | Mating Cycles | Current Rating (Amps) | Actuator Color | Termination | Height Above Board | Height Above Board | Voltage Rating | Mounting Type | Connector/Contact Type | Cable End Type | Locking Feature | FFC, FCB Thickness | Contact Material | Housing Material | Actuator Material | Pitch | Pitch | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Flat Flex Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | White | 20 | 500 mA | Black | Solder | 2 mm | 0.079 in | 50 V | Right Angle Surface Mount | Contacts Bottom | Straight | Rotary Lock | 0.3 mm | Copper Alloy | Liquid Crystal Polymer (LCP) | Glass Filled Nylon Polyamide (PA) | 0.02 " | 0.5 mm | Gold | 85 °C | -40 C | 60 | FPC |
