22MP1 Series

Catalog

GROMMET, OPEN, 1.125 ", NYLON 6 (POLYAMIDE 6), 1.5 ", 0.125 "

Part	For Use With/Related Products	Material Flammability Rating	Bushing, Grommet Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Panel Thickness	Panel Thickness	Color	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Material	Features	Panel Cutout Dimensions

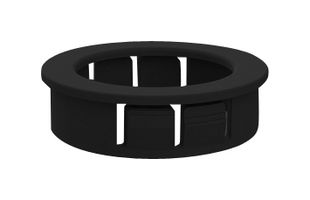

Essentra Components 22MP15018	Cable Wires	UL94 V-2	Bushing	28.58 mm	1.125 in	3.18 mm	0.125 in	Black	38.1 mm	1.5 in	Polyamide (PA66) Nylon 6/6
Essentra Components 22MP10914W	Cable Wires	UL94 V-2	Bushing	22.22 mm	0.875 in	3.18 mm	0.125 in	White	27.76 mm	1.093 in	Polyamide (PA66) Nylon 6/6	Snap-Mount
Essentra Components 22MP15017	Cable Wires	UL94 V-2	Bushing	26.97 mm	1.062 in	3.18 mm	0.125 in	Black	38.1 mm	1.5 in	Polyamide (PA66) Nylon 6/6

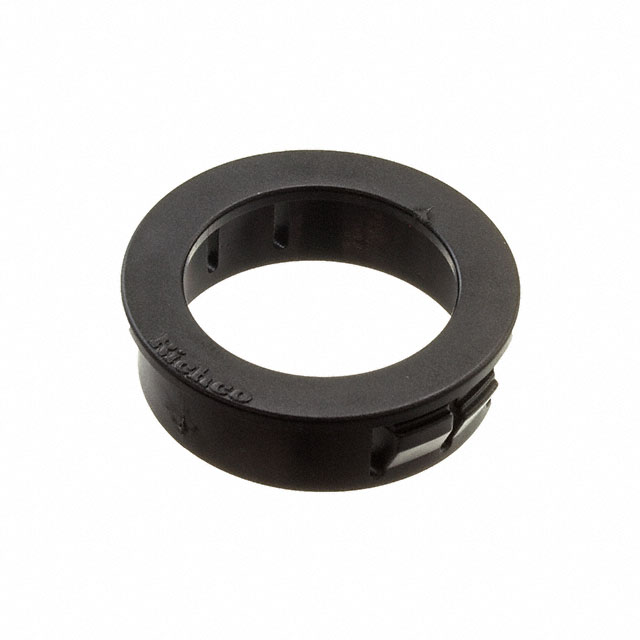

Essentra Components 22MP13716	Cable Wires	UL94 V-2	Bushing	25.4 mm	1 "	3.18 mm	0.125 in	Black		1.375 in	Polyamide (PA66) Nylon 6/6		34.93 mm
Essentra Components 22MP12515	Cable Wires	UL94 V-2	Bushing	23.8 mm	0.937 in	3.18 mm	0.125 in	Black	31.75 mm	1.25 "	Polyamide (PA66) Nylon 6/6
Essentra Components 22MP10914	Cable Wires	UL94 V-2	Bushing	22.22 mm	0.875 in	3.18 mm	0.125 in	Black	27.76 mm	1.093 in	Polyamide (PA66) Nylon 6/6

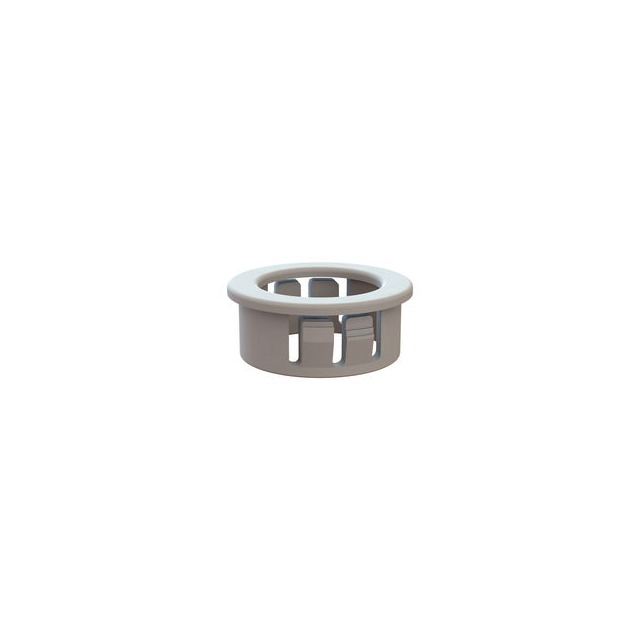

Essentra Components 22MP10012W	Cable Wires	UL94 V-2	Bushing	19.05 mm	0.75 in	3.18 mm	0.125 in	White	25.4 mm	1 in	Polyamide (PA66) Nylon 6/6	Snap-Mount

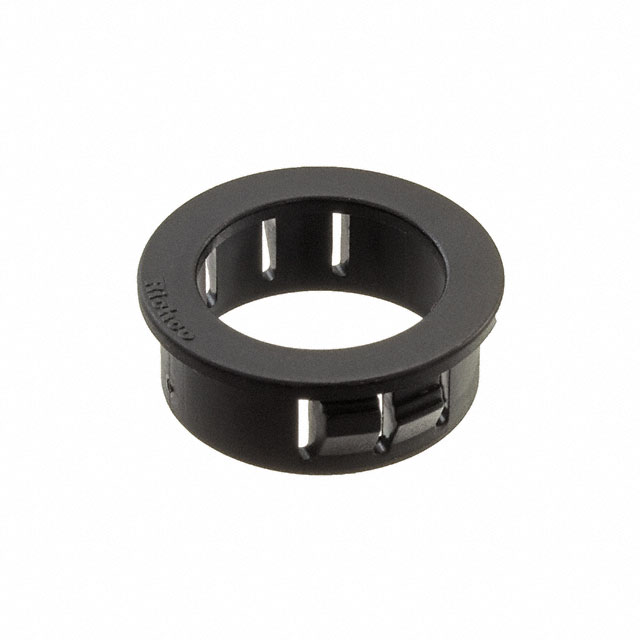

Essentra Components 22MP10913	Cable Wires	UL94 V-2	Bushing	20.62 mm	0.812 in	3.18 mm	0.125 in	Black	27.76 mm	1.093 in	Polyamide (PA66) Nylon 6/6

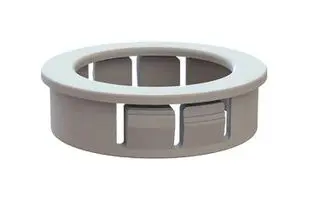

Essentra Components 22MP15018W	Cable Wires	UL94 V-2	Bushing	28.58 mm	1.125 in	3.18 mm	0.125 in	White	38.1 mm	1.5 in	Polyamide (PA66) Nylon 6/6	Snap-Mount
Essentra Components 22MP15021	Cable Wires	UL94 V-2	Bushing	33.32 mm	1.312 "	3.18 mm	0.125 in	Black	38.33 mm	1.509 in	Polyamide (PA66) Nylon 6/6
