CSDA1 Series

Catalog

SENSOR CURRENT SWITCH 7.5A AC/DC

Part	Mounting Type	Current - Supply (Max) [Max]	Output	Current - Sensing	For Measuring	Polarization	Response Time	Accuracy	Sensor Type	Package / Case	Number of Channels	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]

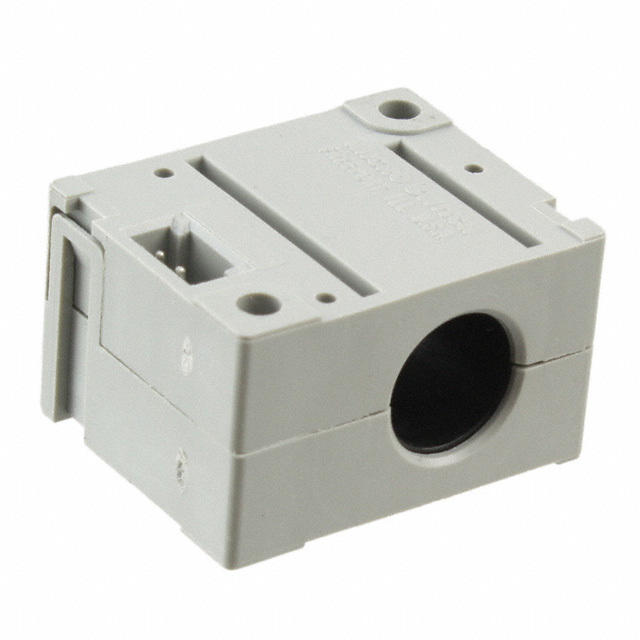

Honeywell Sensing and Productivity Solutions CSDA1DC	Chassis Mount	12 mA	NPN	7.5 A	AC/DC	Bidirectional	100 µs	0.5 %	Current Switch	Module Single Pass Through	1	-25 °C	85 °C	16 V	6 V
Honeywell Sensing and Productivity Solutions CSDA1BC	Chassis Mount	12 mA	NPN	7.5 A	AC/DC	Bidirectional	100 µs	0.5 %	Current Switch	Module Single Pass Through	1	-25 °C	85 °C	16 V	6 V
Honeywell Sensing and Productivity Solutions CSDA1AC	Through Hole	12 mA	NPN	7.5 A	AC/DC	Bidirectional	100 µs	0.5 %	Current Switch	Module	1	-25 °C	85 °C	16 V	6 V

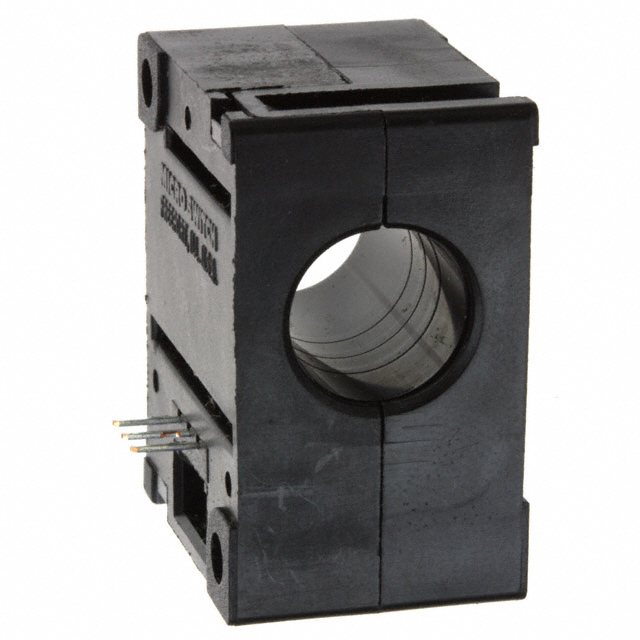

Honeywell Sensing and Productivity Solutions CSDA1BA	Through Hole	12 mA	NPN	1 A	AC/DC	Bidirectional	100 µs	0.5 %	Current Switch	Module Single Pass Through	1	-25 °C	85 °C	16 V	6 V
