4751 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

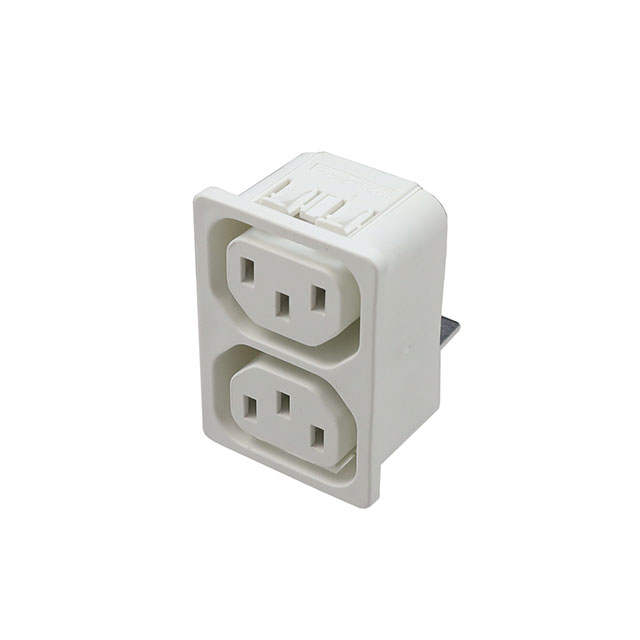

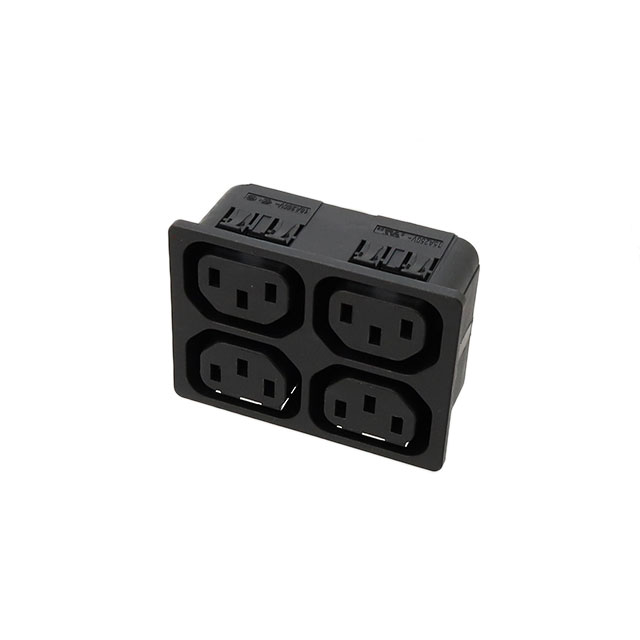

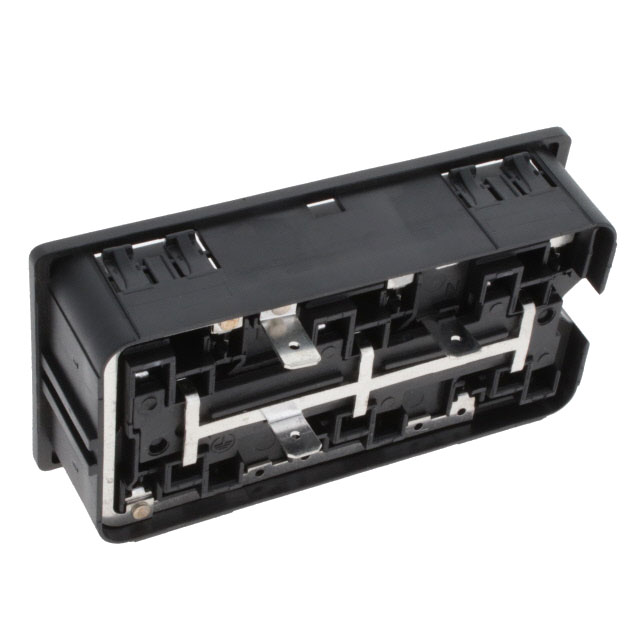

PWR ENT RCPT IEC320-2-2F PNL QC
| Part | Termination | Termination | Termination | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Ingress Protection | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet | Filter Type | Features | Approval Agency | Connector Type | Panel Thickness | Panel Thickness | Accomodates a Fuse | Number of Positions | Number of Positions | Material Flammability Rating | Connector Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 6.3 mm | Quick Connect | 0.25 " | 97.2 mm | 48.9 mm | IP20 | 250 VAC | 10 A | Unfiltered - Commercial | Terminating Cover | CCC cURus ENEC | Receptacle Female Sockets | 1.5 mm | 0.059 in | 6 | 3 | UL94 V-0 | IEC 320-2-2/F | Panel Mount Snap-In | |
 SCHURTER Inc. | 6.3 mm | Quick Connect | 0.25 " | 49 mm | 32.45 mm | IP20 | 250 VAC | 10 A | Unfiltered - Commercial | Terminating Cover | CCC cURus ENEC | Receptacle Female Sockets | 1.5 mm | 0.059 in | 3 | UL94 V-0 | IEC 320-2-2/F | Panel Mount Snap-In | ||
 SCHURTER Inc. | 6.3 mm | Quick Connect | 0.25 " | 64.75 mm | 48.9 mm | IP20 | 250 VAC | 10 A | Unfiltered - Commercial | Terminating Cover | CCC cURus ENEC | Receptacle Female Sockets | 1.5 mm | 0.059 in | 3 | UL94 V-0 | IEC 320-2-2/F | Panel Mount Snap-In |
