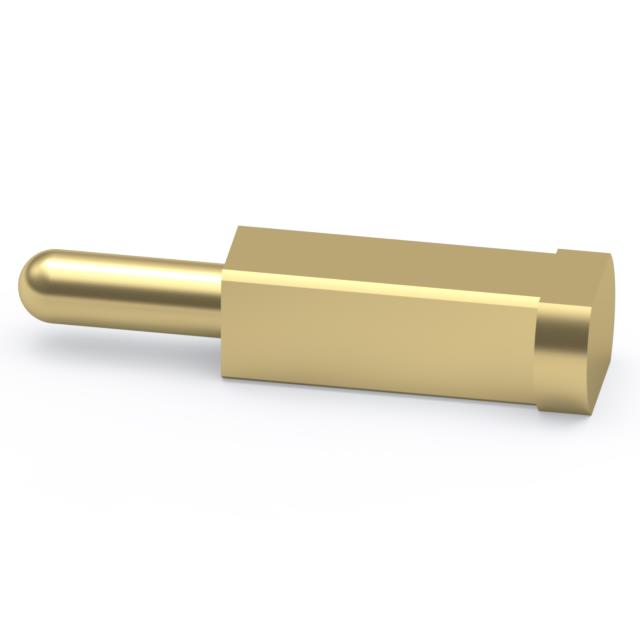

0988-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
HORIZONTAL SURFACE MOUNT (HSMT)
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Operating Force - Initial | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Minimum Working Height [Min] | Minimum Working Height [Min] | Contact Type | Contact Material | Maximum Working Height [Max] | Maximum Working Height [Max] | Mating Cycles | Operating Force - Mid Compression | Current Rating (Amps) | Recommended Working Height | Recommended Working Height | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 20 µin | 0.51 µm | 0.093 in | 2.36 mm | 25 gf | 0.042 in | 1.07 mm | Gold | 5.39 mm | 0.212 in | Sleeve & Plunger (Pogo Pins) | Brass Alloy | 0.33 in | 8.38 mm | 1000000 | 100 gf | 8.8 A | 6.88 mm | 0.271 in | Surface Mount |
