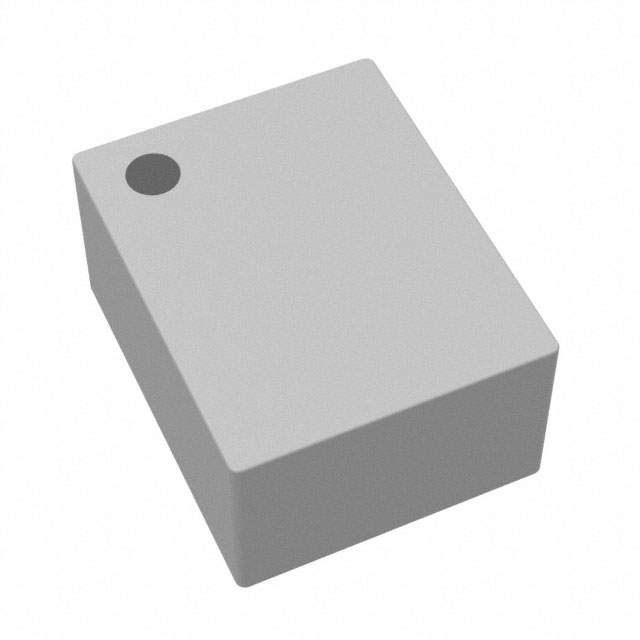

HTEK20161 Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
FIXED IND 1UH 4.5A 43 MOHM SMD
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Material - Core | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Mounting Type | Supplier Device Package | Inductance | Package / Case | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current Rating (Amps) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | 0.039 in | 1 mm | 1 MHz | Metal | 43 mOhm | 4.2 A | Surface Mount | 0806 | 1 µH | 0806 (2016 Metric) | Shielded | -55 C | 125 °C | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 4.5 A | 20 % |
Delta Electronics/Cyntec | 0.039 in | 1 mm | 1 MHz | Metal | 5.5 A | Surface Mount | 0806 | 470 nH | 0806 (2016 Metric) | Shielded | -55 C | 125 °C | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 5.4 A | 20 % |
