DT-2 Series

Catalog

SWITCH SNAP ACTION DPDT 10A 125V

Part	Actuator Type	Voltage Rating - DC	Operating Force	Switch Function	Termination Style	Current Rating (Amps)	Mounting Type	Overtravel	Overtravel	Voltage Rating - AC	Differential Travel	Differential Travel	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Operating Force [Max]	Operating Force [Min]	Pretravel	Pretravel	Release Force

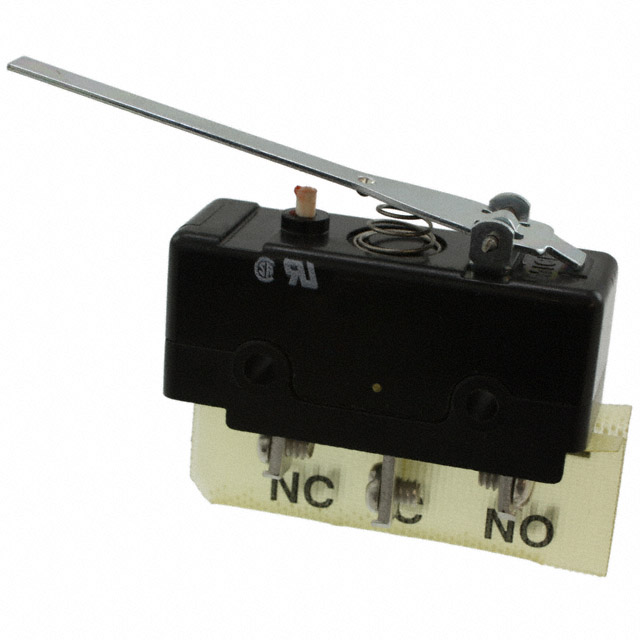

Honeywell Sensing and Productivity Solutions DT-2RV49-B6	Lever Straight	125 VDC	397 gf	On-Mom	Screw Terminal	10 A 300 mA	Chassis Mount	0.25 mm	0.01 in	125 V	4.45 mm	0.175 in	DPDT	85 °C	-55 °C	18.3 mm	0.72 in

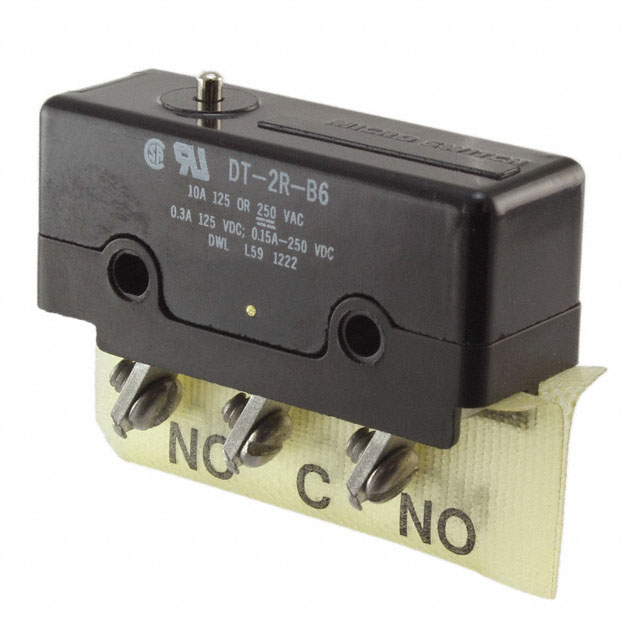

Honeywell Sensing and Productivity Solutions DT-2R-B6	Round (Pin Plunger)	125 VDC		On-Mom	Screw Terminal	10 A 300 mA	Chassis Mount	0.13 mm	0.005 in	125 V	1.5 mm	0.06 "	DPDT	85 °C	-55 °C	15.6 mm	0.615 in	567 gf	340 gf	0.09 in	2.3 mm	57 gf
Honeywell Sensing and Productivity Solutions DT-2R722-A7	Round (Pin Plunger)	28 V		On-Mom	Screw Terminal	250 mA	Chassis Mount	0.13 mm	0.005 in		1.5 mm	0.06 "	DPDT	85 °C	-55 °C	15.6 mm	0.615 in	567 gf	340 gf	0.075 in	1.9 mm	57 gf
Honeywell Sensing and Productivity Solutions DT-2RV31-A7	Lever Straight	125 VDC		On-Mom	Screw Terminal	10 A 300 mA	Chassis Mount	0.25 mm	0.01 in	125 V	3.2 mm	0.125 in	DPDT	85 °C	-55 °C	18.3 mm	0.72 in	283 gf	170 gf	0.185 in	4.7 mm	28 gf

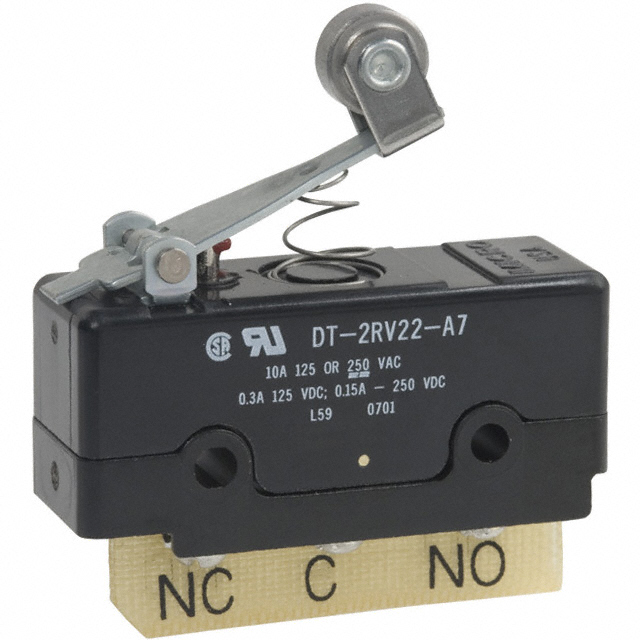

Honeywell Sensing and Productivity Solutions DT-2RV22-A7	Lever Roller	125 VDC		On-Mom	Screw Terminal	10 A 300 mA	Chassis Mount	0.76 mm	0.03 in	125 V	7.75 mm	0.305 in	DPDT	85 °C	-55 °C	30.2 mm	1.188 in	397 gf	255 gf			85 gf
