PPPN151 Series

Catalog

CONN HDR 15POS 0.079 GOLD SMD

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Material	Current Rating (Amps)	Contact Type	Connector Type	Mounting Type	Number of Positions	Voltage Rating	Material Flammability Rating	Contact Finish Thickness - Mating	Termination	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Color	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PPPN151BFLC	Square	Polyester	Flash	Phosphor Bronze	2 A	Female Socket	Header	Surface Mount	15	150 VDC	UL94 V-0	Flash	Solder	Gold	0.181 in	4.6 mm	Push-Pull	0.079 "	2 mm	-40 C	105 ░C	Gold	Black	1	All

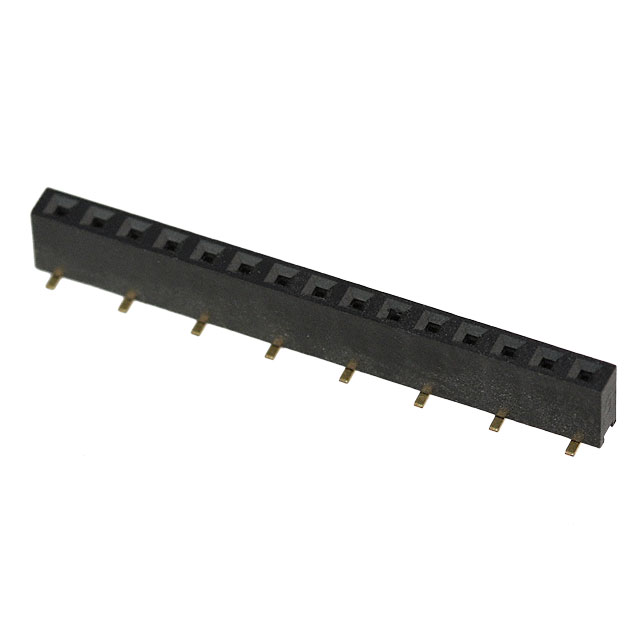

Sullins Connector Solutions PPPN151BFLD	Square	Polyester	Flash	Phosphor Bronze	2 A	Female Socket	Header	Surface Mount	15	150 VDC	UL94 V-0	Flash	Solder	Gold	0.181 in	4.6 mm	Push-Pull	0.079 "	2 mm	-40 C	105 ░C	Gold	Black	1	All

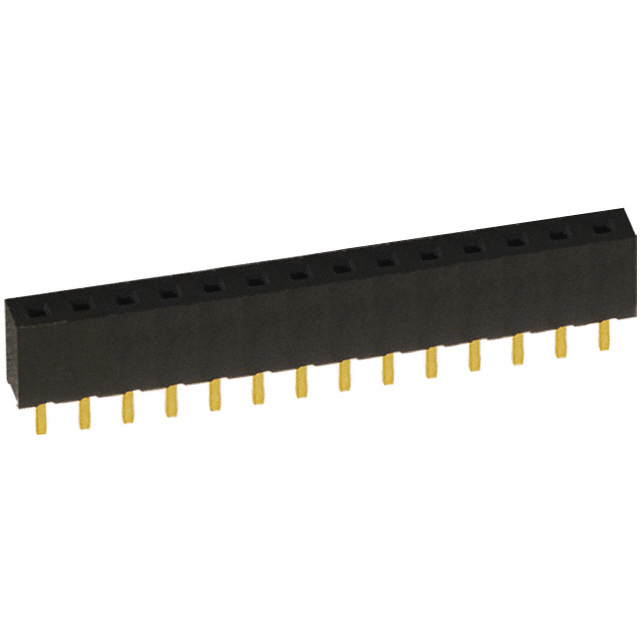

Sullins Connector Solutions PPPN151BFCN	Square	Polyester	Flash	Phosphor Bronze	2 A	Female Socket	Header	Through Hole	15		UL94 V-0	Flash	Solder	Gold			Push-Pull	0.079 "	2 mm	-40 C	105 ░C	Gold	Black	1	All	4.4 mm	0.173 in	2.4 mm	0.094 in
Sullins Connector Solutions PPPN151FGGN	Square	Polyester	Flash	Phosphor Bronze	2 A	Female Socket	Header	Right Angle Through Hole	15		UL94 V-0	Flash	Solder	Gold			Push-Pull	0.079 "	2 mm	-40 C	105 ░C	Gold	Black	1	All					0.122 in	3.1 mm
