181-M44 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, RIGHT ANGLE, HD44, HIGH DENSITY, PLUG, 181 M SERIES, 44 CONTACTS, DB, SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Shell Size, Connector Layout | Flange Feature | Flange Feature | Current Rating (Amps) | Contact Finish Thickness | Contact Finish | Number of Positions | Features | Backset Spacing | Backset Spacing | Shell Material, Finish | Connector Type | Connector Style | Number of Rows [custom] | Mounting Type | Material Flammability Rating | Contact Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

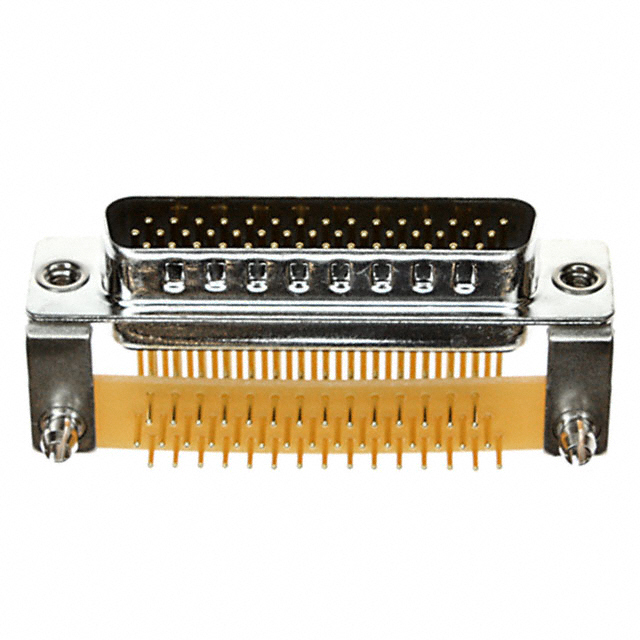

 NorComp Inc. | -55 C | 105 ░C | Nylon 9T Polyamide (PA9T) | Brass | Black | 3 | Housing/Shell | 4-40 | 5 A | Flash | Gold | 44 | Board Lock Grounding Indents Shielded | 8.89 mm | 0.35 in | Nickel Plated Steel | Plug Male Pins | D-Sub High Density | 3 | Panel Mount Right Angle Through Hole | UL94 V-0 | Signal | Solder |

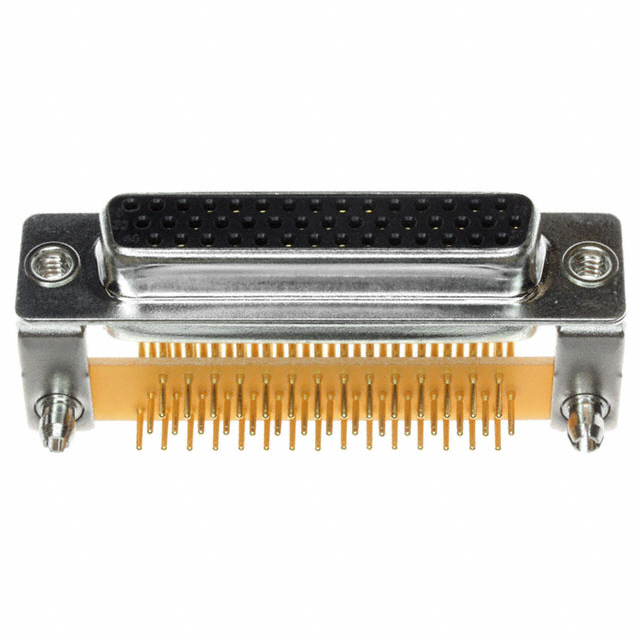

 NorComp Inc. | -55 C | 105 ░C | Nylon 9T Polyamide (PA9T) | Brass | Black | 3 | Housing/Shell | 4-40 | 5 A | Flash | Gold | 44 | Board Lock Shielded | 8.89 mm | 0.35 in | Nickel Plated Steel | Receptacle Female Sockets | D-Sub High Density | 3 | Panel Mount Right Angle Through Hole | UL94 V-0 | Signal | Solder |
