ECA-2WM Series

Catalog

CAP ALUMINUM LYTIC 2.2UF 450V 20% (10 X 12.5MM) RADIAL 5MM 0.044A 2000H 85°C AMMO AUTOMOTIVE AEC-Q200

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Mounting Type	Ripple Current @ Low Frequency	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Tolerance	Capacitance	Lifetime @ Temp.	Applications	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECA-2WM2R2B	Can Radial	85 °C	-25 °C	0.197 "	5 mm	Through Hole	44 mA	Polar	0.394 in	10 mm	450 V	20 %	2.2 µF	2000 Hrs	General Purpose	74.8 mA	0.531 in	13.5 mm

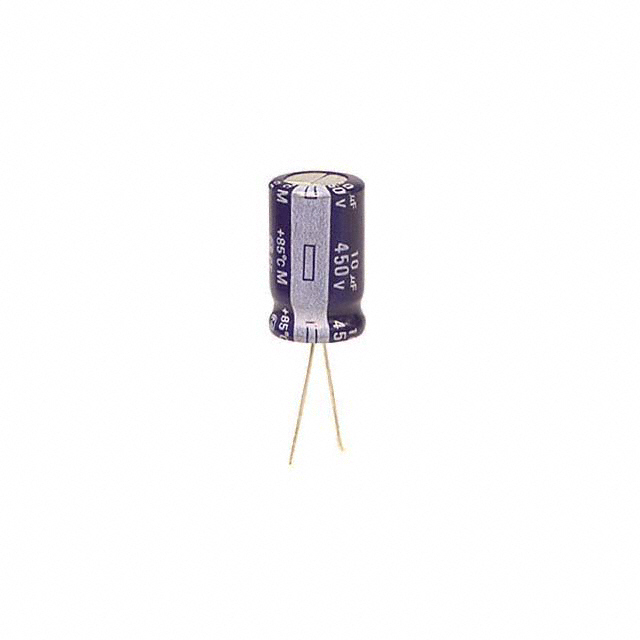

Panasonic Electronic Components ECA-2WM100	Can Radial	85 °C	-25 °C	0.197 "	5 mm	Through Hole	130 mA	Polar	0.492 in	12.5 mm	450 V	20 %	10 µF	2000 Hrs	General Purpose	221 mA			0.866 in	22 mm
Panasonic Electronic Components ECA-2WM3R3	Can Radial	85 °C	-25 °C	0.197 "	5 mm	Through Hole	60 mA	Polar	0.394 in	10 mm	450 V	20 %	3.3 µF	2000 Hrs	General Purpose	102 mA		17 mm			0.669 "

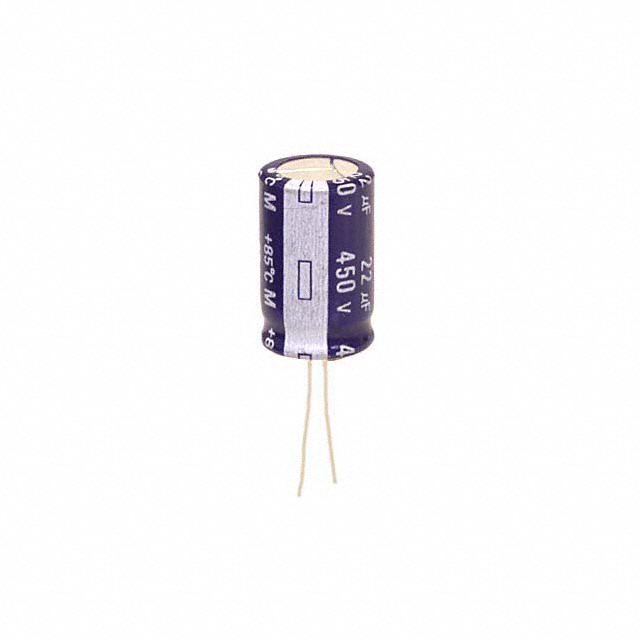

Panasonic Electronic Components ECA-2WM220	Can Radial	85 °C	-25 °C	0.295 in	7.5 mm	Through Hole	210 mA	Polar	0.63 in	16 mm	450 V	20 %	22 µF	2000 Hrs	General Purpose	357 mA	1.063 in	27 mm
Panasonic Electronic Components ECA-2WM010BJ	Can Radial	85 °C	-25 °C	0.138 in	3.5 mm	Through Hole	37 mA	Polar	0.315 in	8 mm	450 V	20 %	1 µF	2000 Hrs	General Purpose	62.9 mA		0.492 in				12.5 mm
