56SDP36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

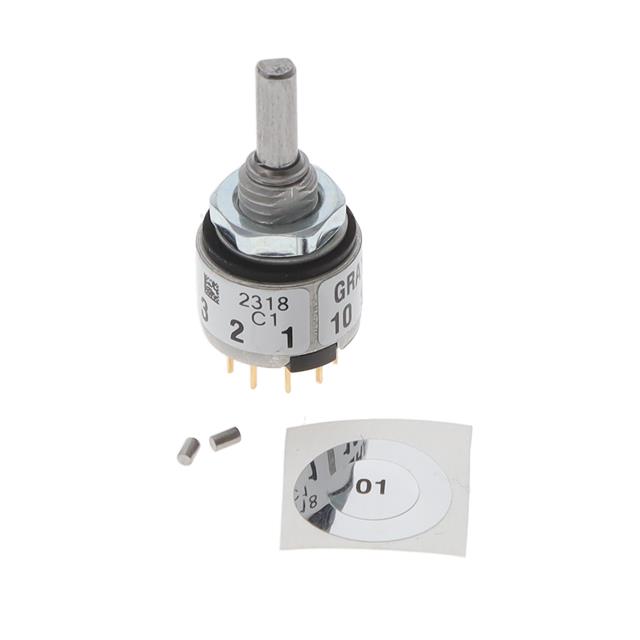

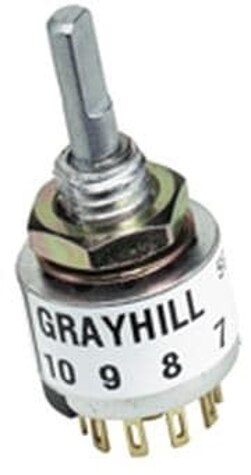

ROTARY SWITCHES ROTARY SWITCH, SHAFT/PANEL SEAL, ADJUSTABLE STOP, PC MOUNT, 36-DEG;, 1 DECK, 1 POLE/DECK, NON-SHORTING, 56SDP36-01PAJN
| Part | Depth Behind Panel [z] | Current Rating (Amps) | Contact Material | Mounting Type | Features | Contact Timing | Number of Decks [custom] | Angle of Throw | Voltage Rating - AC | Contact Finish | Actuator Length [x] | Actuator Type | Number of Poles per Deck | Index Stops | Voltage Rating - DC | Circuit per Deck | Termination Style | Number of Positions [Max] | Number of Positions [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 9.58 mm | 200 mA | Brass | Panel Mount Through Hole | Shaft and Panel Sealed | Non-Shorting (BBM) | 1 | 36 ° | 115 V | Silver | 9.53 mm | Flatted (3.17mm Dia) | 1 | Adjustable | 30 V | SP10T | PC Pin | ||
 Grayhill Inc. | 9.58 mm | 200 mA | Brass | Panel Mount Through Hole | Shaft and Panel Sealed | Shorting (MBB) | 1 | 36 ° | 115 V | Silver | 9.53 mm | Flatted (3.17mm Dia) | 2 | Adjustable | 30 V | DP5T | PC Pin | 5 | 2 |
Grayhill Inc. | 9.58 mm | 200 mA | Brass | Panel Mount Through Hole | Shaft and Panel Sealed | Shorting (MBB) | 1 | 36 ° | 115 V | Silver | 9.53 mm | Flatted (3.17mm Dia) | 1 | Adjustable | 30 V | SP10T | PC Pin | ||
 Grayhill Inc. | 9.58 mm | 200 mA | Brass | Panel Mount Through Hole | Shaft and Panel Sealed | Shorting (MBB) | 1 | 36 ° | 115 V | Silver | 9.53 mm | Flatted (3.17mm Dia) | 2 | Adjustable | 30 V | DP5T | PC Pin | 5 | 2 |
 Grayhill Inc. | 9.58 mm | 200 mA | Brass | Panel Mount Through Hole | Shaft and Panel Sealed | Non-Shorting (BBM) | 1 | 36 ° | 115 V | Silver | 9.53 mm | Flatted (3.17mm Dia) | 2 | Adjustable | 30 V | DP5T | PC Pin | 5 | 2 |
Grayhill Inc. | 9.58 mm | 200 mA | Brass | Panel Mount Through Hole | Shaft and Panel Sealed | Shorting (MBB) | 1 | 36 ° | 115 V | Silver | 9.53 mm | Flatted (3.17mm Dia) | 1 | Adjustable | 30 V | SP10T | PC Pin |
