94674 Series

Catalog

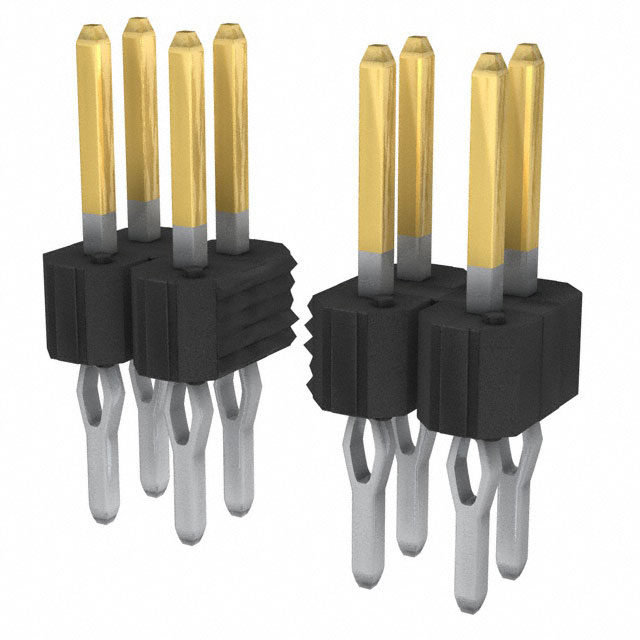

CONN HEADER VERT 40POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Contact Shape	Shrouding	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Termination	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Mating	Mounting Type	Material Flammability Rating	Contact Material	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Insulation Color
Amphenol ICC (FCI) 94674-540	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	30 Áin	0.76 Ám	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	40	Gold GXT™	Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Push-Pull	All	Black

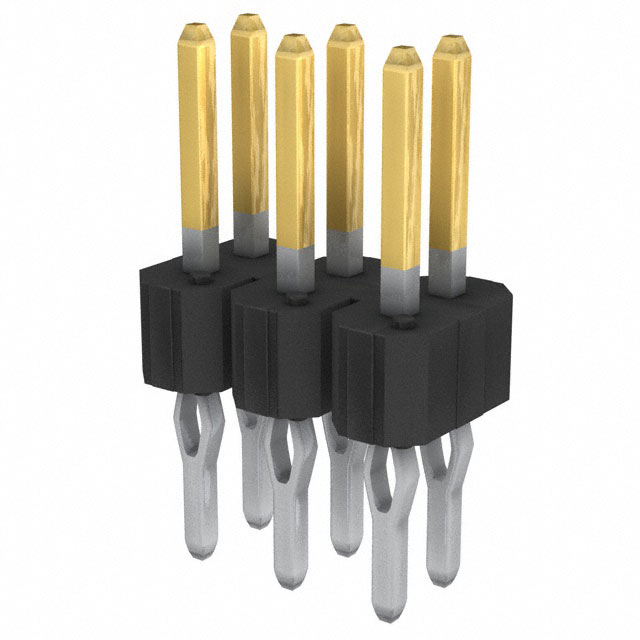

Amphenol ICC (FCI) 94674-206HLF	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	15 µin	0.38 µm	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	6	Gold	Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Push-Pull	All	Black
Amphenol ICC (FCI) 94674-240	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	15 µin	0.38 µm	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	40	Gold	Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Push-Pull	All	Black

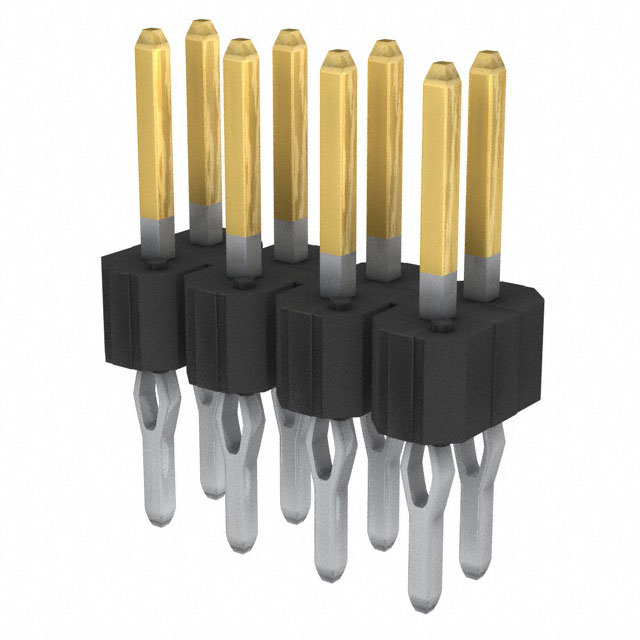

Amphenol ICC (FCI) 94674-108LF	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	30 Áin	0.76 Ám	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	8	Gold	Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Push-Pull	All	Black
Amphenol ICC (FCI) 94674-114LF	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	30 Áin	0.76 Ám	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	14	Gold	Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Push-Pull	All	Black
Amphenol ICC (FCI) 94674-120LF	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	30 Áin	0.76 Ám	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	20	Gold	Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Push-Pull	All	Black
Amphenol ICC (FCI) 94674-220LF	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	15 µin	0.38 µm	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	20	Gold	Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Push-Pull	All	Black

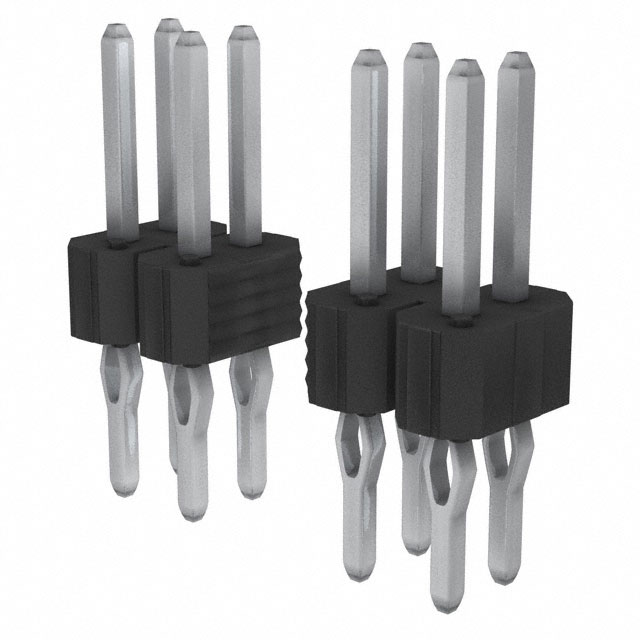

Amphenol ICC (FCI) 94674-440LF	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	120 µin	3.05 Ám	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	40		Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Push-Pull	All	Black

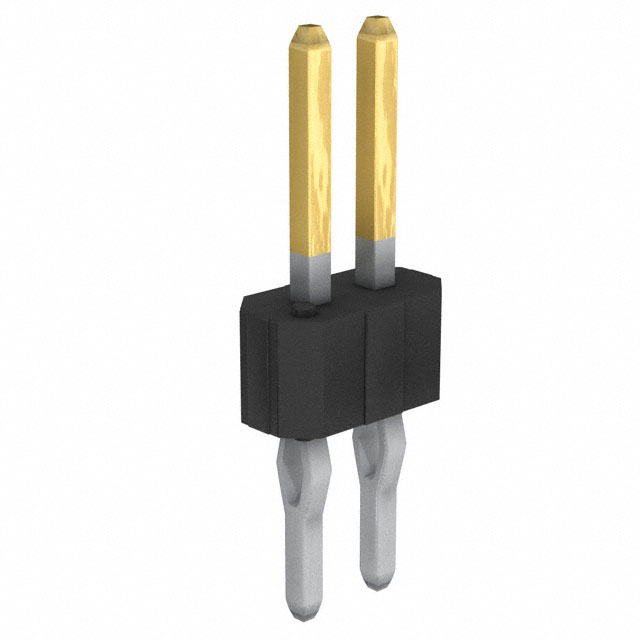

Amphenol ICC (FCI) 94674-202LF	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	15 µin	0.38 µm	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	2	Gold	Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm			Push-Pull	All	Black
Amphenol ICC (FCI) 94674-102LF	2.54 mm	0.1 in	Male Pin	4.7 mm	0.185 in	30 Áin	0.76 Ám	2	Header	Square	Unshrouded	12.83 mm	0.505 in	3 A	Press-Fit Solder	0.1 in	2.54 mm	-65 ░C	130 °C	2	Gold	Through Hole	UL94 V-0	Phosphor Bronze	Tin	0.23 in	5.84 mm			Push-Pull	All	Black
