2342071 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

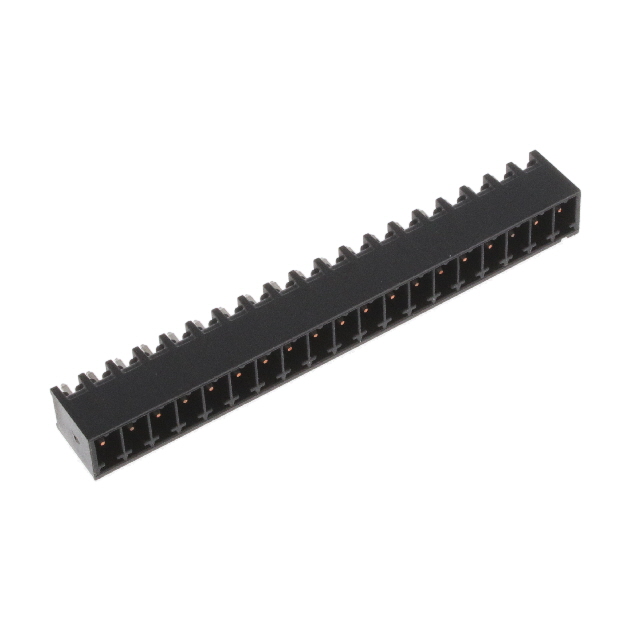

PLUGGABLE TERMINAL BLOCKS 15POS HDR ST,HT 3.5MM PITCH,TL 1.9MM
| Part | Positions Per Level | Header Orientation | Number of Levels | Contact Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Housing Material | Current - UL | Material Flammability Rating | Mounting Type | Type | Features | Contact Mating Finish | Contact Tail Length | Contact Tail Length | Color | Voltage - UL | Pitch [x] | Pitch [x] | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

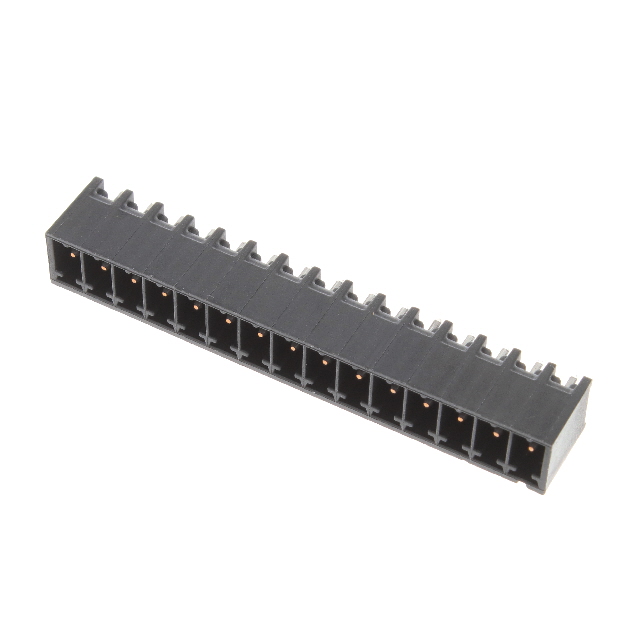

 TE Connectivity Raychem Cable Protection | 15 | Vertical | 1 | Copper Alloy | 15 | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm |

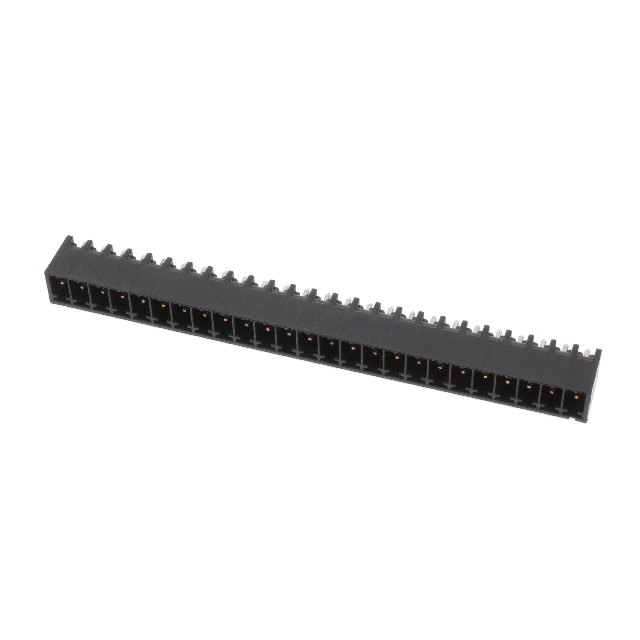

 TE Connectivity Raychem Cable Protection | 25 | Vertical | 1 | Copper Alloy | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm | |
 TE Connectivity Raychem Cable Protection | 19 | Vertical | 1 | Copper Alloy | 19 | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm |
 TE Connectivity Raychem Cable Protection | 18 | Vertical | 1 | Copper Alloy | 18 | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm |
TE Connectivity Raychem Cable Protection | 11 | Vertical | 1 | Copper Alloy | 11 | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm |

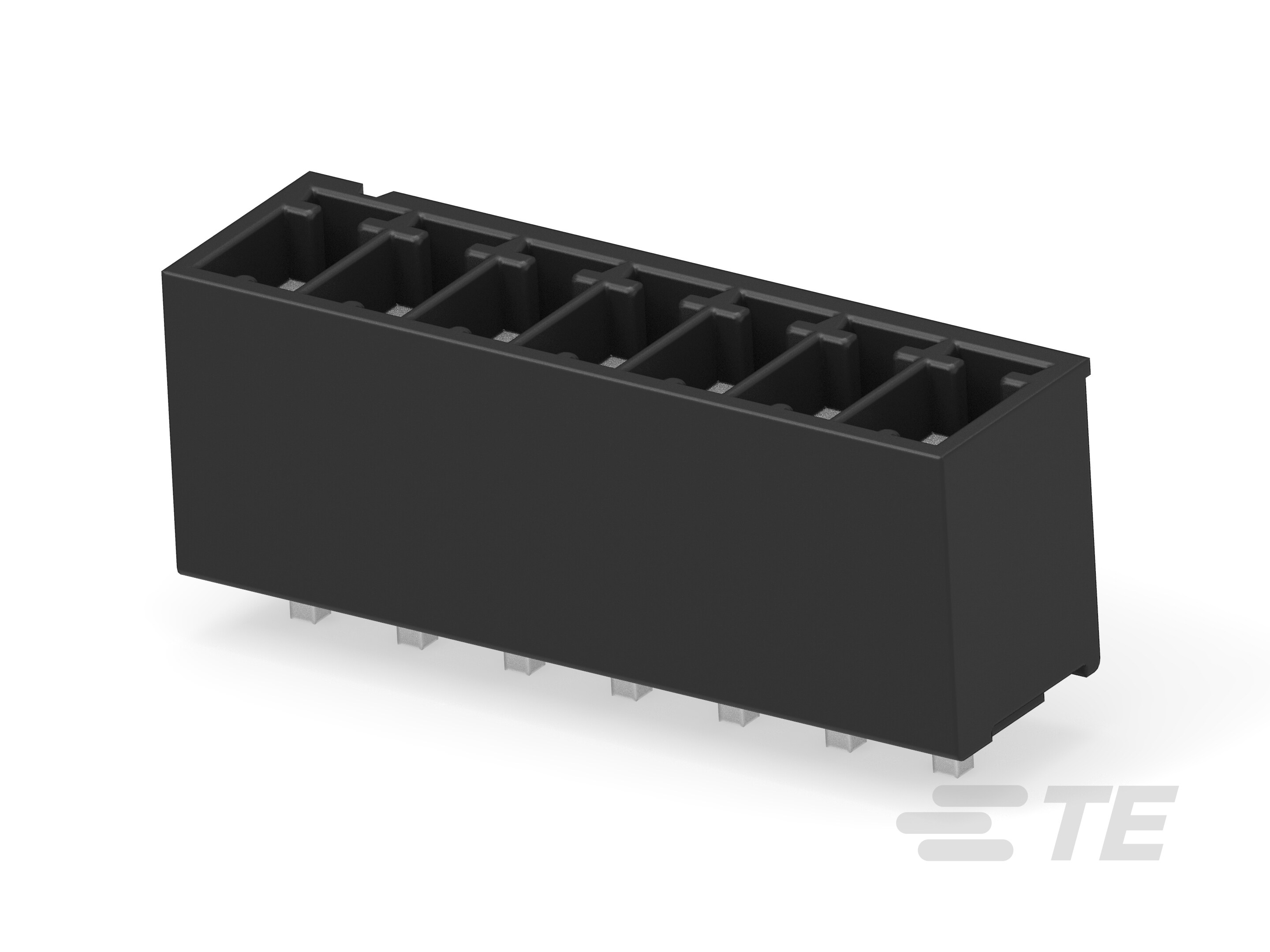

 TE Connectivity Raychem Cable Protection | 7 | Vertical | 1 | Copper Alloy | 7 | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm |

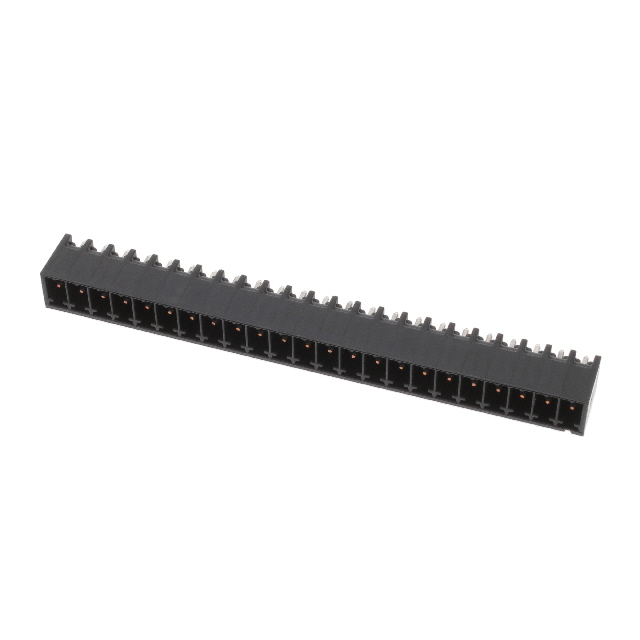

 TE Connectivity Raychem Cable Protection | 23 | Vertical | 1 | Copper Alloy | 23 | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm |

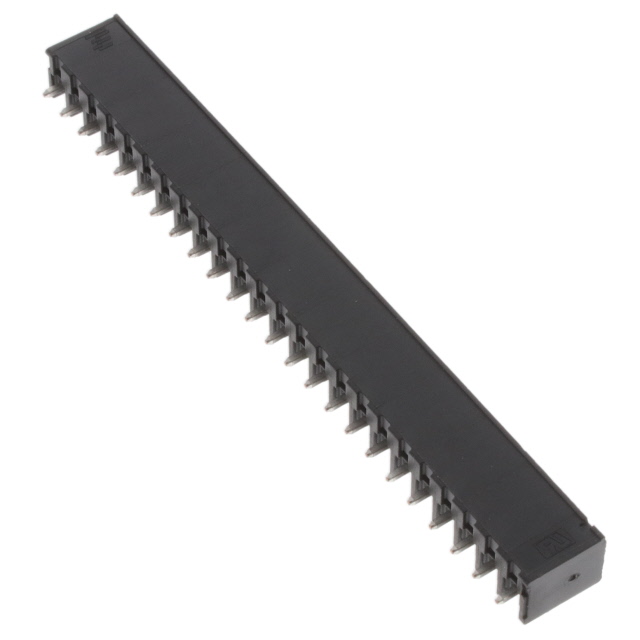

 TE Connectivity Raychem Cable Protection | Vertical | 1 | Copper Alloy | 24 | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm | |
TE Connectivity Raychem Cable Protection | 12 | Vertical | 1 | Copper Alloy | 12 | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm |

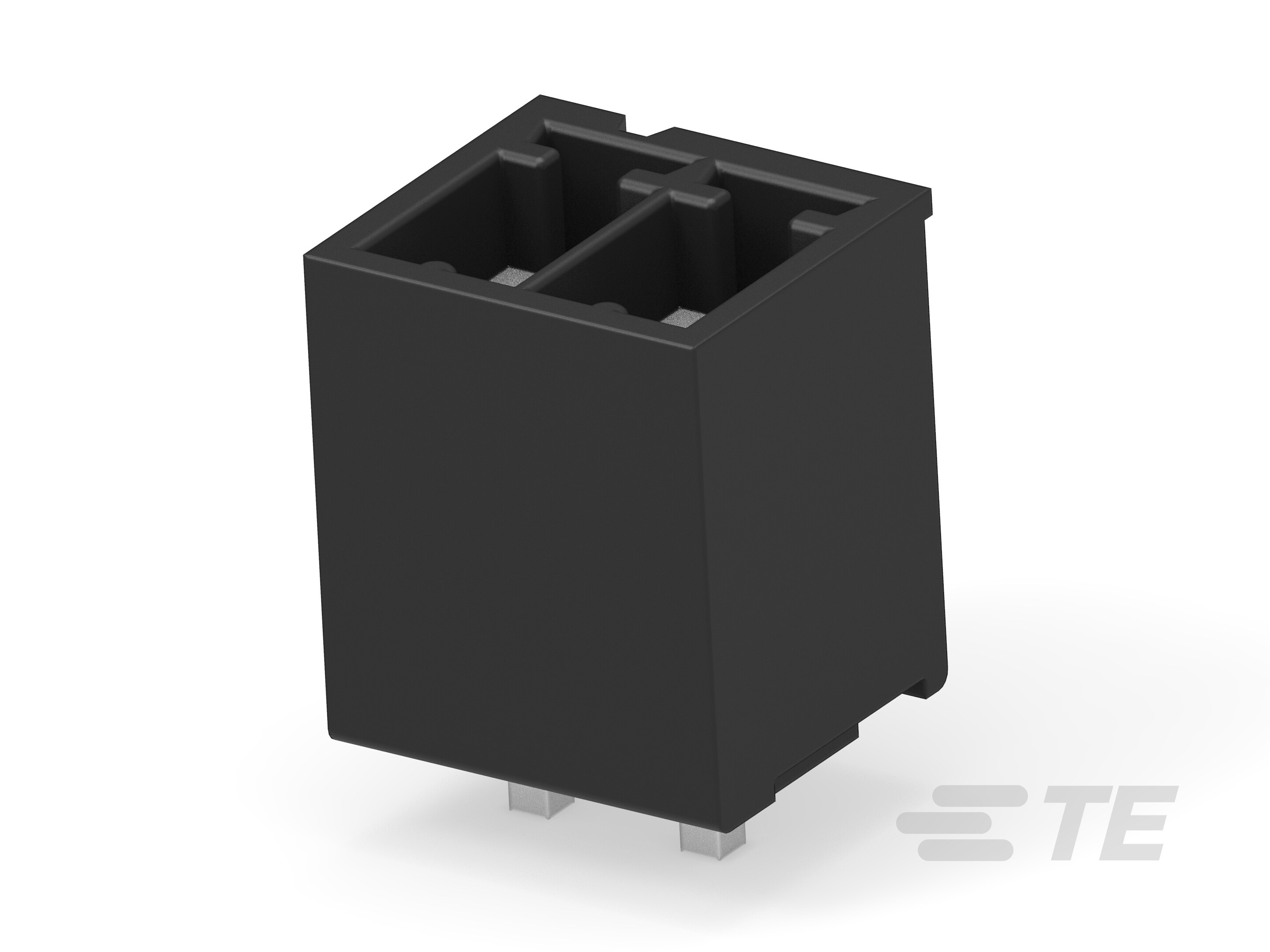

 TE Connectivity Raychem Cable Protection | 2 | Vertical | 1 | Copper Alloy | 2 | -40 °C | 105 ░C | Solder | Polyamide (PA) Nylon | 11 A | UL94 V-0 | Through Hole | Header Male Pins Shrouded (4 Side) | High Temp Housing | Tin | 0.075 in | 1.9 mm | Black | 300 V | 3.5 mm | 0.138 in | 0.362 in | 9.2 mm |
