D3M Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH SNAP ACT SPST-NO 0.1A 30V

Part	Ingress Protection	Operating Position	Operating Position	Operating Force	Voltage Rating - DC	Termination Style	Mechanical Life	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Type	Release Force	Differential Travel	Differential Travel	Overtravel	Overtravel	Circuit	Current Rating (Amps)	Switch Function	Pretravel	Pretravel
Omron Electronics Inc-EMC Div D3M-01K1-3	IP40	0.394 in	10 mm	51 gf	30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Lever Straight	6.118 gf	0.8 mm	0.031 "	1.2 mm	0.047 "	SPST-NO	100 mA	Off-Mom

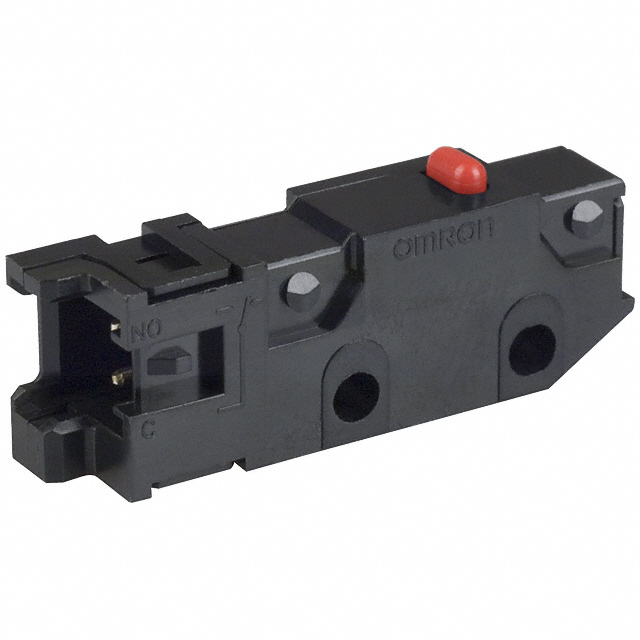

Omron Electronics Inc-EMC Div D3M-01	IP40	0.33 in	8.4 mm	153 gf	30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Round (Pin Plunger)	25 gf	0.1 mm	0.004 in	0.4 mm	0.015 "	SPST-NC	100 mA	On-Mom	0.024 in	0.6 mm

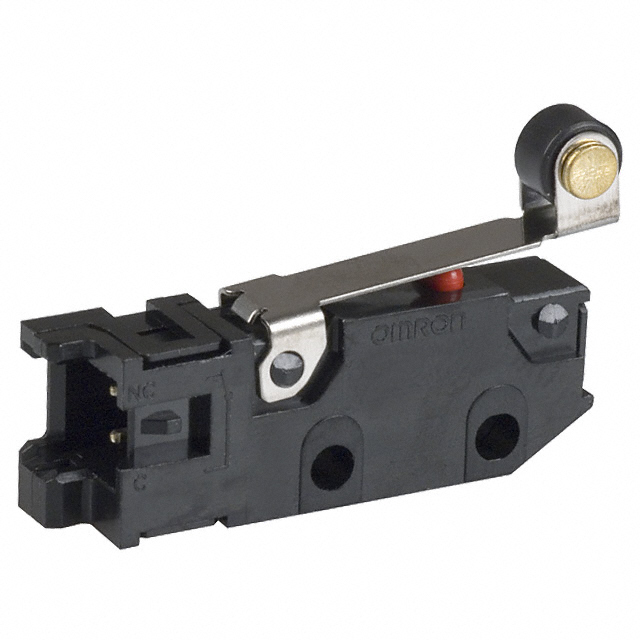

Omron Electronics Inc-EMC Div D3M-01L2	IP40	0.587 in	14.9 mm	102 gf	30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Lever Roller	10 gf	0.6 mm	0.025 in	0.7 mm	0.026 in	SPST-NC	100 mA	On-Mom
Omron Electronics Inc-EMC Div D3M-01-3-5	IP40				30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Round (Pin Plunger)						SPST-NO	100 mA	Off-Mom

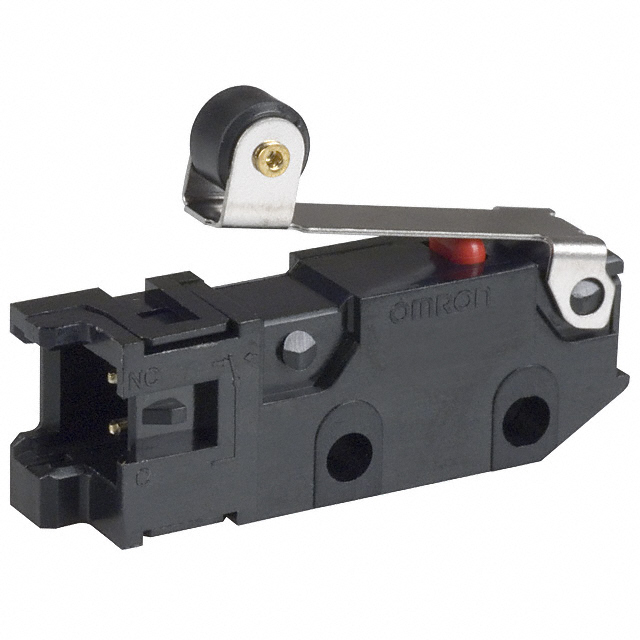

Omron Electronics Inc-EMC Div D3M-01K2	IP40	0.618 in	15.7 mm	51 gf	30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Lever Roller	6.118 gf	0.8 mm	0.031 "	1.2 mm	0.047 "	SPST-NC	100 mA	On-Mom

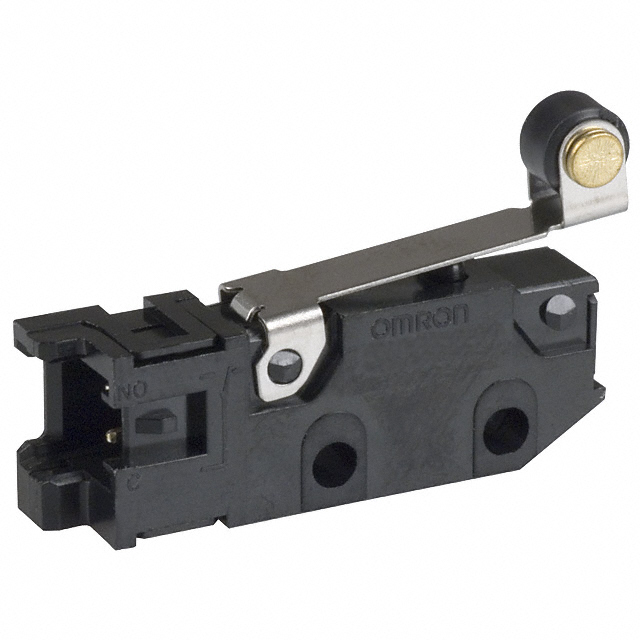

Omron Electronics Inc-EMC Div D3M-01L2-3	IP40	0.587 in	14.9 mm	102 gf	30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Lever Roller	10 gf	0.6 mm	0.025 in	0.7 mm	0.026 in	SPST-NO	100 mA	Off-Mom
Omron Electronics Inc-EMC Div D3M-01K3	IP40	0.48 in	12.2 mm	51 gf	30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Lever Simulated Roller	6.118 gf	0.8 mm	0.031 "	1.2 mm	0.047 "	SPST-NC	100 mA	On-Mom

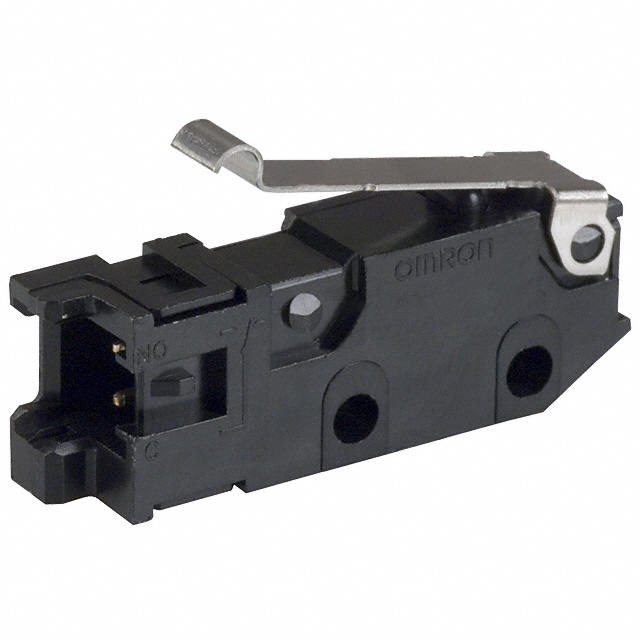

Omron Electronics Inc-EMC Div D3M-01K3-3	IP40	0.48 in	12.2 mm	51 gf	30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Lever Simulated Roller	6.118 gf	0.8 mm	0.031 "	1.2 mm	0.047 "	SPST-NO	100 mA	Off-Mom

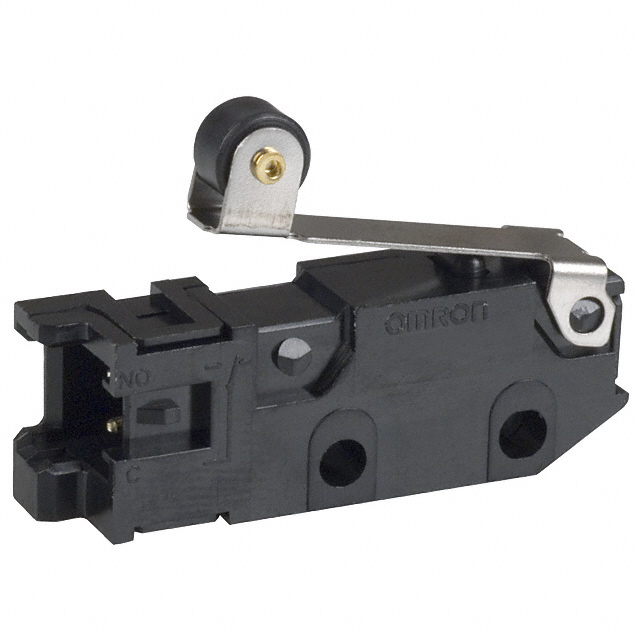

Omron Electronics Inc-EMC Div D3M-01K2-3	IP40	0.618 in	15.7 mm	51 gf	30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Lever Roller	6.118 gf	0.8 mm	0.031 "	1.2 mm	0.047 "	SPST-NO	100 mA	Off-Mom

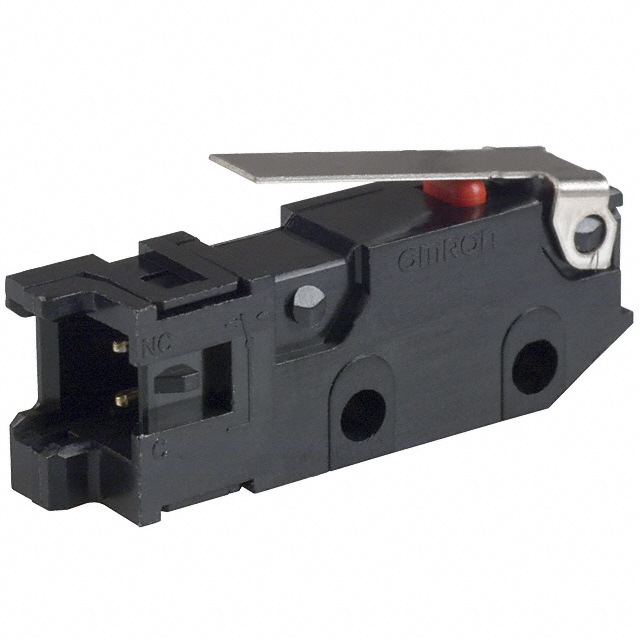

Omron Electronics Inc-EMC Div D3M-01K1	IP40	0.394 in	10 mm	51 gf	30 V	Connector	500000 Cycles	Chassis Mount	-25 °C	85 °C	200000 Cycles	Lever Straight	6.118 gf	0.8 mm	0.031 "	1.2 mm	0.047 "	SPST-NC	100 mA	On-Mom
