XZMEDGCBD56 Series

Manufacturer: SunLED

Catalog

LED RGB CLEAR 4SMD R/A

Part	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Color	Lens Color	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [z]	Package / Case	Voltage - Forward (Vf) (Typ)	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Size [y]	Lens Size [x]	Lens Transparency	Supplier Device Package	Mounting Type	Configuration	Viewing Angle	Wavelength - Dominant	Current - Test

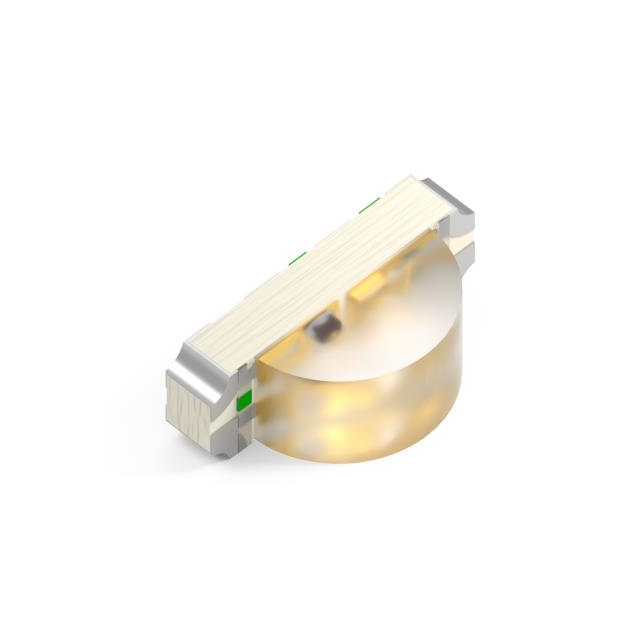

SunLED XZMEDGCBD56W	515 nm	632 nm	460 nm	Blue Green Red	Colorless	Rectangle with Domed Top	3 mm	1.5 mm	1 mm	4-SMD No Lead	2 V 3.3 V 3.3 V	138 mcd	397 mcd	69 mcd	1 mm	2 mm	Clear	4-SMD	Right Angle Surface Mount	Common Anode	120 °	465 nm 525 nm 624 nm	20mA Blue 20mA Green 20mA Red
