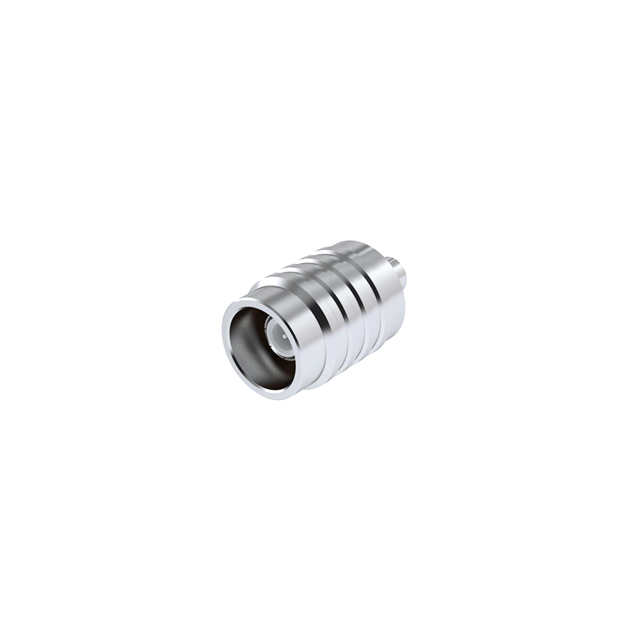

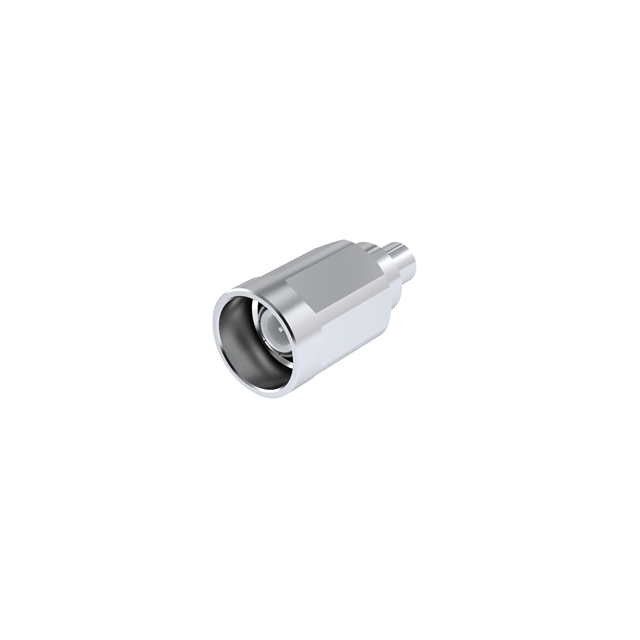

R18005 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
NEX10 M STR THD SD.141 C50
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Dielectric Material | Center Contact Plating | Connector Type | Impedance | Frequency - Max [Max] | Center Contact Material | Contact Termination | Number of Ports | Fastening Type | Shield Termination | Connector Style | Mounting Type | Body Finish | Housing Color | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -55 C | 125 °C | Brass | 500 V | Polytetrafluoroethylene (PTFE) | Silver | Plug Male Pin | 50 Ohms | 20 GHz | Brass | Solder | 1 | Snap-On | Solder | NEX10 | Free Hanging (In-Line) | |||
 Radiall USA, Inc. | -55 C | 125 °C | Brass | 500 V | Polytetrafluoroethylene (PTFE) | Silver | Plug Male Pin | 50 Ohms | 20 GHz | Brass | Solder | 1 | Push-Pull | Solder | NEX10 | Free Hanging (In-Line) | White Bronze | Silver | IP68 - Dust Tight Waterproof |
 Radiall USA, Inc. | -55 C | 125 °C | Brass | 500 V | Polytetrafluoroethylene (PTFE) | Silver | Plug Male Pin | 50 Ohms | 20 GHz | Brass | Solder | 1 | Push-Pull | Solder | NEX10 | Free Hanging (In-Line) |
